2KG 12 / 24VDC Zinc Electric Magnetic Lock 600LBs Holding Force
2KG 12 / 24VDC Zinc Electric Magnetic Lock 600LBs Holding Force
2KG 12 / 24VDC Zinc Electric Magnetic Lock 600LBs Holding Force
2KG 12 / 24VDC Zinc Electric Magnetic Lock 600LBs Holding Force
Specifications
Brand Name :
GSKA
Model Number :
EM-560
Place of Origin :
CHINA
MOQ :
1
Payment Terms :
T/T
Supply Ability :
2000 pcs per month
Delivery Time :
2 weeks
Packaging Details :
Standard box Packing
Holding Force :
600LBS
Material for shell :
Anodized Aluminium
Material for magnetic :
Zinc
Material for Armature :
Zinc
Weight :
2KG
Suitable For :
Wooden Door, Glass Door, Metal Door, Fireproof Door
Description

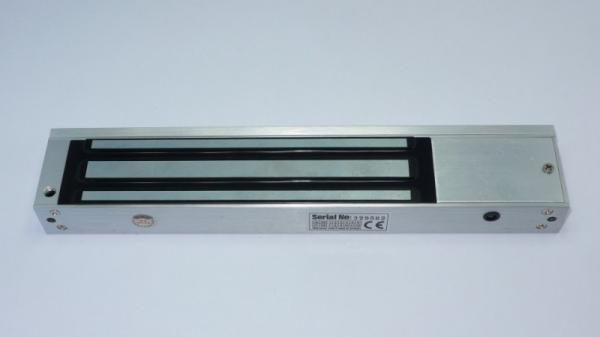

EM-560 LED 600Lbs single door electric lock .Suitable for many types of doors including wooden door, glass door , metal door , fireproof door. With lock status signal output ( NO,NC,COM) and LED indiCAT-parts-partsor to show the lock status.

Dimensions: 250L x 42W x 25H (mm)
Armature Plate: 180L x 38W x 11H (mm)
Holding Force: 280kgs (600Lbs)
Voltage: 12/24VDC+10%
Current Draw: 12V/500mA, 24V/250mA
Suitable For: Wooden Door, Glass Door, Metal Door, Fireproof Door
Door Status Sensor: (NO/ NC/ COM)
LED IndiCAT-parts-partsion: Green – Door Lock ; Red – Door Unlock
Surface Temp: +20°C
Operating Temp: 10~+55(14-131F)
Suitable Humidity: 0~90% (Non-condensing)
Material For Shell: Anodized Aluminium
Material For Magnetic: Zinc
Material For Armature: Zinc
Weight: 2kgs
Optional Bracket: LBK-560U, LBK560L, LBK-560Z
