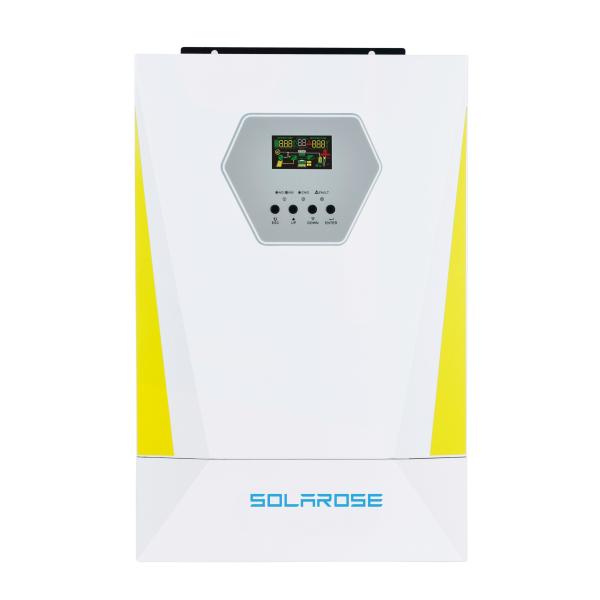

Single Phase Off Grid Inverter 3600W With MPPT 100A Solar Charger / Generator Support
Single Phase Off Grid Inverter 3600W With MPPT 100A Solar Charger / Generator Support
Specifications
Brand Name :
Solarose
Model Number :
3600W inverter
Certification :
UL; CE
Place of Origin :
Guangdong,China
MOQ :
10
Price :
us$182 per unit
Supply Ability :
1000pcs per month
Delivery Time :
25 days
Packaging Details :
Graphic Carton+UN Carton
Rated Output Power: :
3600W (Single Phase)
DC Battery Input Voltage: :
24VDC
AC Input/Output Voltage: :
220VAC
MPPT Charging Mode with Max PV Charging Current: :
100A
MPPT Operating Range: :
120–500VDC
Optimal MPPT Voltage Range: :
300–400VDC
Maximum PV Array Input Power: :
6200W
Communication Interfaces: :
RS-232, BMS Compatible
Description

3600W Single Phase Off Grid Inverter With MPPT 100A Solar Charger And Generator Support

Product description:

This single-phase 3.6KW off-grid inverter is engineered for hybrid solar systems, integrating a powerful 100A MPPT solar charge controller with wide input range (120–500VDC) and a 6200W PV array capacity. It supports 24VDC battery input, AC output at 220V, and features BMS communication and generator compatibility. Ideal for remote installations, this unit allows operation with or without batteries, and an optional Wi-Fi module enhances monitoring for just €18. It's a reliable solution for residential, backup, or rural power systems.

Technical parameter

Rated Power 3600W
DC Input Voltage 24VDC
AC Input/Output Voltage 220VAC
MPPT Input Voltage Range 120–500VDC
Optimal MPPT Voltage 300–400VDC
Max PV Charging Current 100A
PV Array Capacity 6200W
Wi-Fi Monitoring Optional (€18)

Feature Advantages:

  1. High-efficiency MPPT solar charging with up to 100A

  2. Wide MPPT voltage range supports flexible solar setups

  3. 6200W solar array support for robust solar harvesting

  4. Supports both lithium and lead-acid battery systems

  5. Generator dry contact input for extended hybrid power

  6. Compatible with BMS and RS-232 for advanced control

  7. Operates with or without battery for flexible deployment

  8. Optional Wi-Fi module enables remote system monitoring

Sketch Map:
