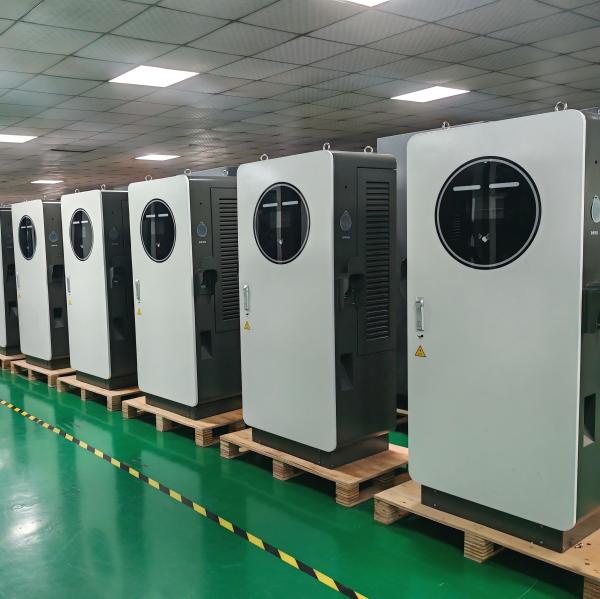

All In One AC Bus EV Charger 120KW With 699kWh Battery Backup System
All In One AC Bus EV Charger 120KW With 699kWh Battery Backup System
Specifications
Brand Name :
Solarose
Model Number :
120W
Certification :
UL; CE
Place of Origin :
Guangdong,China
MOQ :
10
Price :
$109709
Packaging Details :
one pc is in a carton
Cable: :
Single/Dual 5m Charging Guns
Output Power: :
120kW DC
Input: :
AC380V 3-phase
Enclosure: :
IP54, 7505001800mm
PCS: :
125kW bidirectional
Total Capacity: :
699kWh (233kWh x 3 units)
Battery Chemistry: :
LFP (3.2V/280Ah cells)
Integrated: :
EMS, BMS, fire protection, UPS, AC, meters, lightning protection, cables
Description

All In One AC Bus EV Charger 120KW With 699kWh Battery Backup System

Product description:

A fully integrated light-industrial charging station combining rapid EV charging and scalable battery energy storage. This system supports load shifting, renewable energy integration, and smart energy dispatching, ideal for large buildings, malls, and EV stations.

Technical parameter

Item Specification
Charger Output Power 120kW DC
Gun Configuration Dual or Single, Cable Length: 5m
Output Current Max 250A
Output Voltage Range 150V – 1000VDC
Energy Storage Size 699kWh (Total)
Battery Voltage 3.2V/280Ah × 3 Units
PCS Rating 125kW
Connectivity Ethernet / 3G / 4G, OCPP1.6J Enabled

Feature Advantages:

  1. Commercial-grade 120kW charging station with multi-protocol support

  2. Grid-friendly 699kWh LFP battery system with 125kW PCS

  3. Smart cooling, remote monitoring, and UPS for critical loads

  4. Safe, modular, and highly efficient energy hub

Product Details:

All In One AC Bus EV Charger 120KW With 699kWh Battery Backup System



Application Scenario:

All In One AC Bus EV Charger 120KW With 699kWh Battery Backup System

All In One AC Bus EV Charger 120KW With 699kWh Battery Backup SystemAll In One AC Bus EV Charger 120KW With 699kWh Battery Backup System
