TAKUMI S-R6A13 Spark Plug Prechamber Generator Spark Plug replace Deutz 3588 apply for TCG generators
TAKUMI S-R6A13 Spark Plug Prechamber Generator Spark Plug replace Deutz 3588 apply for TCG generators
TAKUMI S-R6A13 Spark Plug Prechamber Generator Spark Plug replace Deutz 3588 apply for TCG generators
TAKUMI S-R6A13 Spark Plug Prechamber Generator Spark Plug replace Deutz 3588 apply for TCG generators
TAKUMI S-R6A13 Spark Plug Prechamber Generator Spark Plug replace Deutz 3588 apply for TCG generators
TAKUMI S-R6A13 Spark Plug Prechamber Generator Spark Plug replace Deutz 3588 apply for TCG generators
Specifications
Brand Name :
TAKUMI
Model Number :
S-R6A16
Certifiion :
TS16949 ISO9001
Place of Origin :
Hunan,China
MOQ :
1
Price :
By discussed
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000 pieces per month
Delivery Time :
30 working days
Packaging Details :
Tin, Plastic box, white box, Carton
Description

TAKUMI S-R6A13 Spark Plug Prechamber Generator Spark Plug replace Deutz 3588 apply for TCG generators

TAKUMI is an ISO 9001 and IATF 16949 certified spark plug manufacturer. Our in-house production line and quality lab ensure each unit meets strict OE specifications.

Product Overview

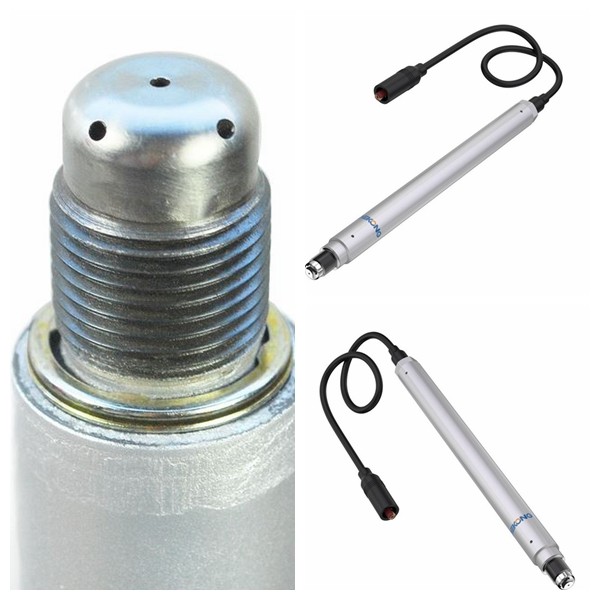

TAKUMI S-R6A13 spark plug. TAKUMI S-R6A13 is a shielded prechamber spark plug for MWM TCG 2032 gas engines. M22x1.5 flat seat, 30 mm reach, 965 mm shielded cable, 0.3 mm gap, integrated resistor.

Every TAKUMI unit is produced in an ISO 9001 and IATF 16949 certified factory, 100% tested before shipment. The plug is engineered for long service life in continuous operation, with a nickel-plated shell, copper-core electrode and high-grade ceramic insulator.

Shielded replacement for DEUTZ 1228-2839 family on TCG 2032.

Key Specifications

  • TAKUMI TypeS-R6A13
  • Thread SizeM22 x 1.5
  • Reach30 mm
  • Hex Size22.2 mm (7/8")
  • Seat TypeFlat
  • Spark Gap0.3 mm
  • Electrode TypePrechamber (shielded)
  • Cable Length965 mm
  • Shield Length276 mm
  • ResistorYes

Cross Reference

  • DEUTZ1228-2839 / 1228-4236 / 1228-2365 / 1228-4432 / 1228-5126 / 1228-5295 / 1228-5296
  • MWM1245-3558 / 1245-3574

Applications

  • MWM TCG 2032 V16 / V20
  • CAT CG 260 series
  • Biogas, natural gas and landfill gas power stations

Advantages

  • Drop-in replacement - no engine parameter changes required
  • Reliable ignition under high pressure and lean combustion
  • Anti-corrosion nickel-plated housing
  • 95% alumina insulator for heat and shock resistance
  • Monolithic resistor for stable conductivity
  • Factory direct with competitive pricing and short lead time

OE numbers are for reference only. Final fitment should be confirmed before ordering.

Factory & Quality Control

TAKUMI S-R6A13 Spark Plug Prechamber Generator Spark Plug replace Deutz 3588 apply for TCG generators

Each unit is 100% tested for spark performance and gas tightness. Random samples from every batch also undergo dimension and material verification.

Application

TAKUMI S-R6A13 Spark Plug Prechamber Generator Spark Plug replace Deutz 3588 apply for TCG generators

In continuous-duty generator applications, consistent ignition reduces misfire-related downtime and lowers maintenance cost over the engine's lifetime.

Production Workshop

TAKUMI runs a fully integrated manufacturing base: CNC machining, automated assembly and 100% functional testing under one roof.

TAKUMI S-R6A13 Spark Plug Prechamber Generator Spark Plug replace Deutz 3588 apply for TCG generatorsTAKUMI S-R6A13 Spark Plug Prechamber Generator Spark Plug replace Deutz 3588 apply for TCG generatorsTAKUMI S-R6A13 Spark Plug Prechamber Generator Spark Plug replace Deutz 3588 apply for TCG generators

From raw material to finished spark plug, every process is controlled in-house with ISO-certified procedures.
