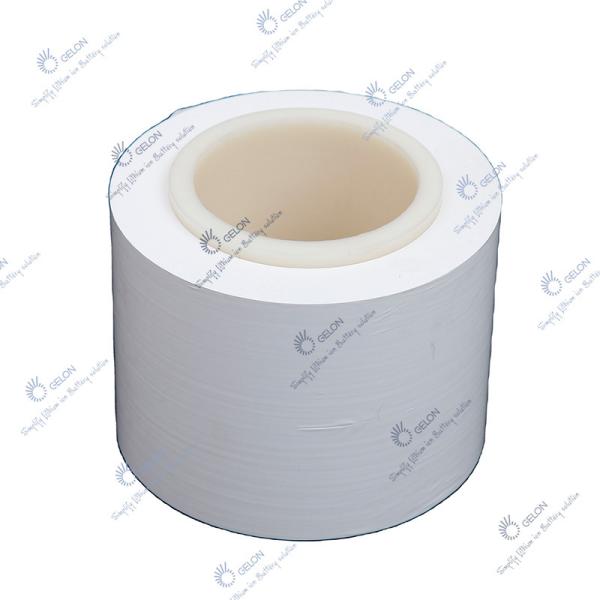

Gelon 20um Lithium Ion Battery Separator PE Ceramic Coated with Customizable Width for Electric Vehicles
Gelon 20um Lithium Ion Battery Separator PE Ceramic Coated with Customizable Width for Electric Vehicles
Gelon 20um Lithium Ion Battery Separator PE Ceramic Coated with Customizable Width for Electric Vehicles
Gelon 20um Lithium Ion Battery Separator PE Ceramic Coated with Customizable Width for Electric Vehicles
Gelon 20um Lithium Ion Battery Separator PE Ceramic Coated with Customizable Width for Electric Vehicles
Gelon 20um Lithium Ion Battery Separator PE Ceramic Coated with Customizable Width for Electric Vehicles
Gelon 20um Lithium Ion Battery Separator PE Ceramic Coated with Customizable Width for Electric Vehicles
Gelon 20um Lithium Ion Battery Separator PE Ceramic Coated with Customizable Width for Electric Vehicles
Gelon 20um Lithium Ion Battery Separator PE Ceramic Coated with Customizable Width for Electric Vehicles
Gelon 20um Lithium Ion Battery Separator PE Ceramic Coated with Customizable Width for Electric Vehicles
Specifications
Place of Origin :
CHINA
Width :
customize
Warranty :
3 months ~ 1 year
Supply Ability :
1000000㎡ per month
MOQ :
1PCS
Application :
electric vehicles, Electric Power Systems, Solar Energy Storage
Model Number :
GN-S300A
Delivery Time :
5-10days
Brand Name :
GELON
MD tensile strength :
≥150
Payment Terms :
L/C,D/A,D/P,T/T
Appearance :
White
Packaging Details :
standard case
Thickness :
5um to 25um customize
Material :
PE /PE or multi layers
Price :
4-6USD/Square Meter
Description
Gelon Battery Raw Materials - 20μm Lithium Ion Battery Separator

PE & PP separators are designed for lithium-ion battery manufacturers and researchers. These polymer film materials, based on either Polypropylene (PP) or Polyethylene (PE), feature micro and nano pores that provide excellent ion transportation capabilities within lithium-ion batteries.

Available in ceramic-coated varieties for enhanced thermal deformation resistance and mechanical strength.

Gelon 20um Lithium Ion Battery Separator PE Ceramic Coated with Customizable Width for Electric Vehicles Gelon 20um Lithium Ion Battery Separator PE Ceramic Coated with Customizable Width for Electric Vehicles Gelon 20um Lithium Ion Battery Separator PE Ceramic Coated with Customizable Width for Electric Vehicles Gelon 20um Lithium Ion Battery Separator PE Ceramic Coated with Customizable Width for Electric Vehicles
Technical Specifications
No. Test Term Unit Inspection Value
1Thicknessmicron20.0±2.0
2Surface densityg/㎡17.0±2.0
3Ceramic layer Surface densityg/㎡8.0±1.5
4Gas permeabilitySec/100ml250±40
5Gas permeability increment%≤15%
6Puncturing Strengthgf≥580
7120℃ *1h shrinking percentage (MD)%≤2.0
8120℃ *1h shrinking percentage (TD)%≤1.5
9Tensile strength (MD)Mpa≥150
10Tensile strength (TD)Mpa≥135
11Tensile Elongation (MD)%≥50
12Tensile Elongation (TD)%≥50
13Film close temperature℃≤135
14Widthmm-
15Lengthm-
16Peel strengthN/m≥40
17Static electricityKV≤2.0
18Water contentppm≤1200
Packaging & Delivery
Gelon 20um Lithium Ion Battery Separator PE Ceramic Coated with Customizable Width for Electric Vehicles Gelon 20um Lithium Ion Battery Separator PE Ceramic Coated with Customizable Width for Electric Vehicles

To better ensure the safety of your goods, we provide professional, environmentally friendly, convenient and efficient packaging services.
