Lab Planetary Vacuum Mixer with Built-in Vacuum Pump and Dual-Shaft Planetary Ribbon Stirring Paddle for Multi-Stage Speed Operation
Lab Planetary Vacuum Mixer with Built-in Vacuum Pump and Dual-Shaft Planetary Ribbon Stirring Paddle for Multi-Stage Speed Operation
Lab Planetary Vacuum Mixer with Built-in Vacuum Pump and Dual-Shaft Planetary Ribbon Stirring Paddle for Multi-Stage Speed Operation
Lab Planetary Vacuum Mixer with Built-in Vacuum Pump and Dual-Shaft Planetary Ribbon Stirring Paddle for Multi-Stage Speed Operation
Lab Planetary Vacuum Mixer with Built-in Vacuum Pump and Dual-Shaft Planetary Ribbon Stirring Paddle for Multi-Stage Speed Operation
Lab Planetary Vacuum Mixer with Built-in Vacuum Pump and Dual-Shaft Planetary Ribbon Stirring Paddle for Multi-Stage Speed Operation
Lab Planetary Vacuum Mixer with Built-in Vacuum Pump and Dual-Shaft Planetary Ribbon Stirring Paddle for Multi-Stage Speed Operation
Lab Planetary Vacuum Mixer with Built-in Vacuum Pump and Dual-Shaft Planetary Ribbon Stirring Paddle for Multi-Stage Speed Operation
Lab Planetary Vacuum Mixer with Built-in Vacuum Pump and Dual-Shaft Planetary Ribbon Stirring Paddle for Multi-Stage Speed Operation
Lab Planetary Vacuum Mixer with Built-in Vacuum Pump and Dual-Shaft Planetary Ribbon Stirring Paddle for Multi-Stage Speed Operation
Specifications
Model Number :
GN-VM-7P
Vacuum :
Built-in vacuum pump, -70Kpa
Price :
2000-2300$
Speed :
Max.600rpm
Supply Ability :
99sets/month
Product name :
Lab Planetary Vacuum Mixer
Certification :
CE
Payment Terms :
D/A,L/C,D/P,T/T
Model :
GN-VM-7P
Mixing tank :
50ml-500ml
MOQ :
1
Delivery Time :
30 days
Working viscosity :
Max.10000mpa.s under the condition of 600r/min speed
Mixing time :
0-600min can be set
Packaging Details :
wooden box
Brand Name :
Gelon
Size :
360(L)*340(W)*580(H)mm
Place of Origin :
China
Description

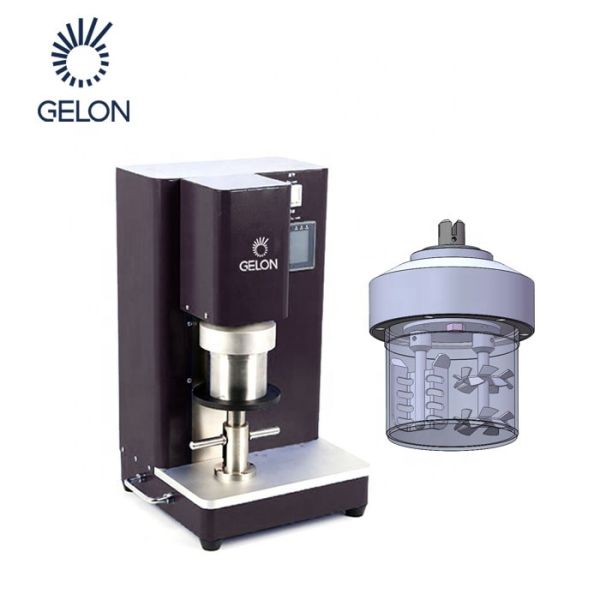

Lab Planetary Vacuum Mixer
The planetary vacuum mixer is designed for mixing various solvents and powders, particularly in the raw material batching process for lithium ion batteries, tape, solar energy, and chemical industries. This compact, user-friendly equipment features a human-machine interface for motor speed adjustment, driving blades to rotate and achieve uniform slurry mixing—making it an ideal choice for laboratory slurry preparation.
Key Features
  • Dual-shaft planetary ribbon stirring paddle and single-shaft blade stirring paddle configuration
  • Customizable stirring shaft forms and combinations based on tank size requirements
  • Forward and reverse mixing function for high-viscosity slurry with excellent uniformity
  • Vacuum environment effectively eliminates bubbles generated during mixing
  • Built-in vacuum system for optimal performance
  • Multi-stage speed operation with customizable stirring speed and time settings
  • Safety-focused bracket design for secure vacuum mixing operations
Available Specifications
Stirring Tank Volume Availability
50ml Standard Option
150ml Standard Option
500ml Standard Option
Custom Sizes Available upon request
