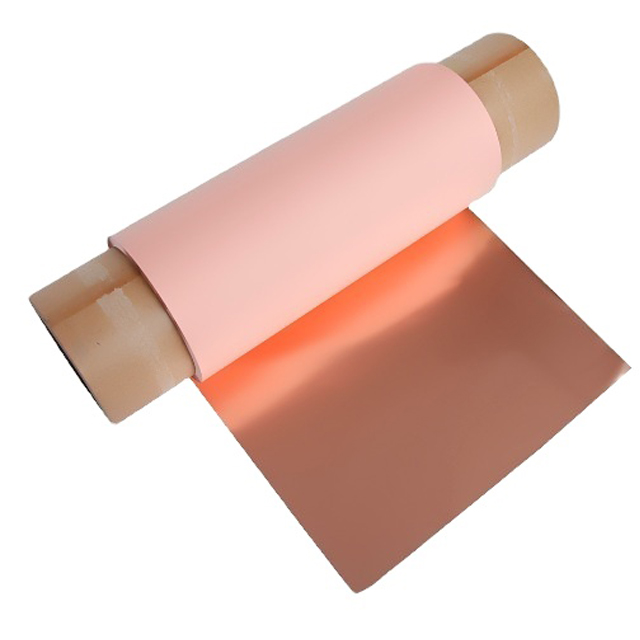

Standard Copper Foil Customized Length Width Thickness Single-matte or Double-matte for Battery Anode High-Conductivity Cu Foil
Standard Copper Foil Customized Length Width Thickness Single-matte or Double-matte for Battery Anode High-Conductivity Cu Foil
Standard Copper Foil Customized Length Width Thickness Single-matte or Double-matte for Battery Anode High-Conductivity Cu Foil
Standard Copper Foil Customized Length Width Thickness Single-matte or Double-matte for Battery Anode High-Conductivity Cu Foil
Specifications
Delivery Time :
Within 14days after receiving prepayment
Brand Name :
Gelon
Model Number :
Cu foil double shiny
Packaging Details :
5kg/roll
Payment Terms :
T/T
Place of Origin :
China
Supply Ability :
20 Tons/month
Price :
55-60USD/KG
MOQ :
5KG
Description
Standard Copper Foil Customized Length Width Thickness Single-matte or Double-matte for Battery Anode High-Conductivity Cu Foil
Product Overview

-scarlett@libgroup.net

Technical Specifications

6μm*280mm Double Shiny Copper Foil

Inspection Item Inspection Conditions Inspection Results Executive Standard
Thickness Normal State 0.006-0.0070mm IPC-4562
Conductivity Normal State 0.155 ohm·g/m² IPC-TM-650 2.5.14
Weight per Unit Area Normal State 53 g/m² IPC-TM-650 2.2.12
Tensile Strength Room Temp 23°C 280 N/mm² IPC-TM-650 2.4.18
High Temp 180°C ---
Elongation Rate Room Temp 23°C >3.5% IPC-TM-650 2.4.18
High Temp 180°C ---
Oxidation Resistance Test High Temp 130°C 10min Pass ---
Peel Strength Room Temp --- IPC-TM-650 2.4.8
Surface Roughness S Side (Ra) 0.15 IPC-TM-650 3.5.6
M Side (Rz) 1.6
Pinholes Normal State 0 IPC-TM-650 2.1.2
Wettability Dyne Value ≥32 Dyne Pen
Surface Quality Uniform color, no oxidation, stains, obvious bumps/dents or soft wrinkles, no scratches; 30cm×30cm surface black spots < 5 pcs. IPC-4562

Remarks:

1. This batch of copper foil fully complies with the IPC-4562 standard.

2. Products should be stored horizontally below 25°C, free from direct sunlight, rain, moisture, and corrosive gases to prevent discoloration and oxidation of the copper foil.

3. Wear clean gloves when handling the product to prevent scratching the copper foil and surface contamination.

4. Product validity period: 3 months
