Laboratory Lithium Cell Electrode Dry Calendering Machine with Adjustable Rolling Temperature and Precise Roller Gap Control
Laboratory Lithium Cell Electrode Dry Calendering Machine with Adjustable Rolling Temperature and Precise Roller Gap Control
Laboratory Lithium Cell Electrode Dry Calendering Machine with Adjustable Rolling Temperature and Precise Roller Gap Control
Laboratory Lithium Cell Electrode Dry Calendering Machine with Adjustable Rolling Temperature and Precise Roller Gap Control
Laboratory Lithium Cell Electrode Dry Calendering Machine with Adjustable Rolling Temperature and Precise Roller Gap Control
Laboratory Lithium Cell Electrode Dry Calendering Machine with Adjustable Rolling Temperature and Precise Roller Gap Control
Laboratory Lithium Cell Electrode Dry Calendering Machine with Adjustable Rolling Temperature and Precise Roller Gap Control
Laboratory Lithium Cell Electrode Dry Calendering Machine with Adjustable Rolling Temperature and Precise Roller Gap Control
Laboratory Lithium Cell Electrode Dry Calendering Machine with Adjustable Rolling Temperature and Precise Roller Gap Control
Laboratory Lithium Cell Electrode Dry Calendering Machine with Adjustable Rolling Temperature and Precise Roller Gap Control
Laboratory Lithium Cell Electrode Dry Calendering Machine with Adjustable Rolling Temperature and Precise Roller Gap Control
Laboratory Lithium Cell Electrode Dry Calendering Machine with Adjustable Rolling Temperature and Precise Roller Gap Control
Specifications
MOQ :
1
Delivery Time :
30 days
Rolling gap :
0 - 3mm, gap can be adjusted
Price :
8000-9000$
Roller hardness :
HRC 62
Vibration frequency :
3000 r/min
Packaging Details :
wooden box
Model Number :
GN-TY-GYFH-2S150AT
Rolling temperature :
Room temperature to 130℃, adjustable
Payment Terms :
L/C,D/A,D/P,T/T
Roller size :
96*150mm
Feed screen size :
0.8mm
Supply Ability :
10sets/month
Size :
750*770*640mm
Brand Name :
Gelon
Power :
1.7kW
Certification :
CE
Place of Origin :
China
Description

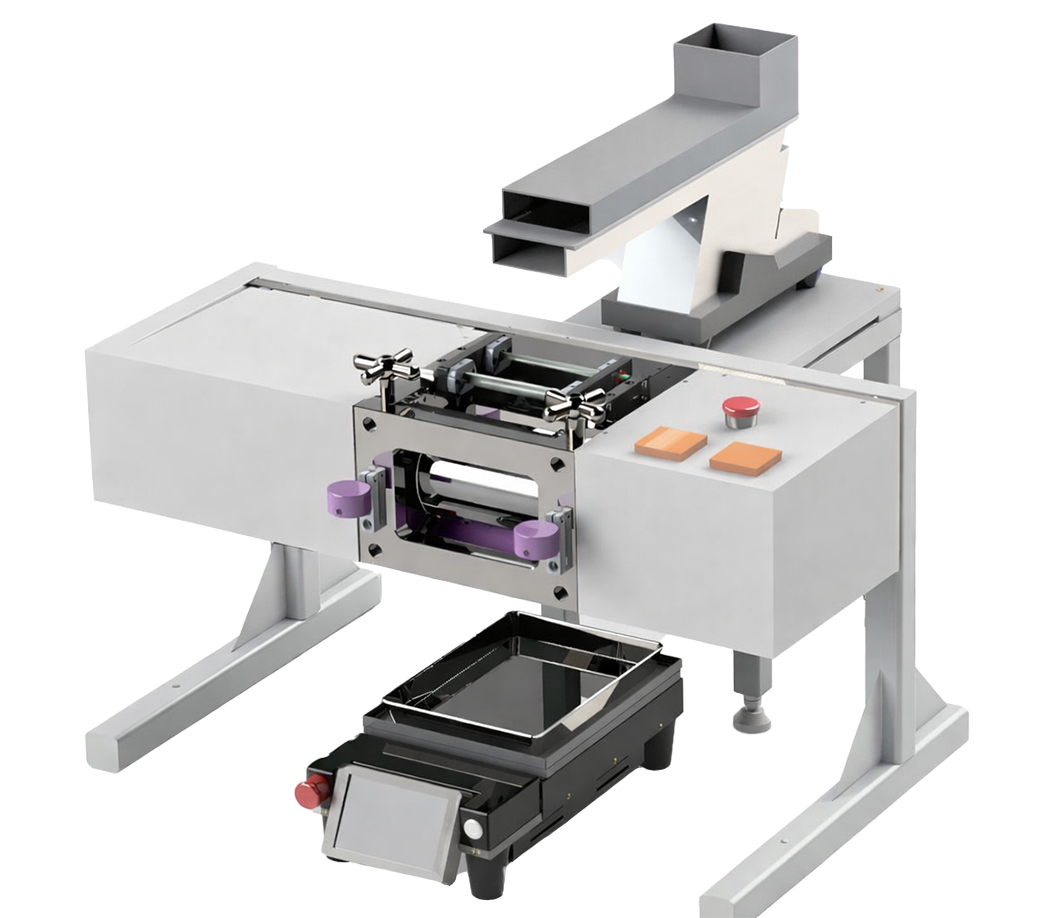

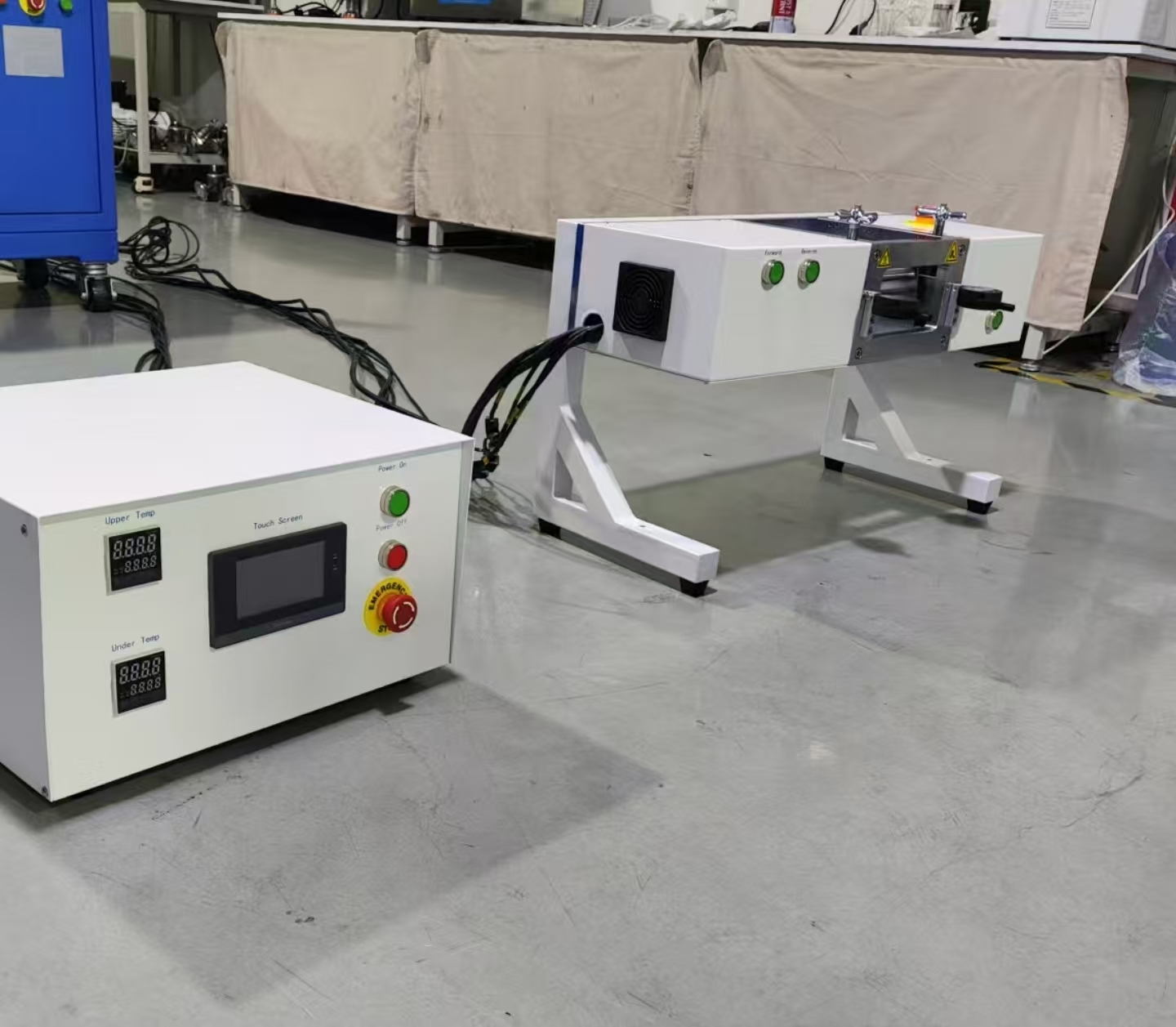

Laboratory Lithium Cell Electrode Dry Calendering Machine
Equipment Overview

This specialized laboratory equipment is designed for electroforming battery materials and components under controlled thermal conditions. The system features adjustable forming thickness with simple operation, making it particularly suitable for thinning clean energy lithium battery material sheets and increasing their density. Dual servo control ensures high precision and supports asynchronous rotation capabilities.

Functional Features
  • Roller Gap Precise Control: Controlled by upper and lower inclined irons with screw adjustment, achieving precise control through digital micrometer integration
  • Process Control Accuracy: Key equipment parameters are precisely controlled to ensure reliable verification results
  • Complete Machine Integration: Compact structure with high degree of software and hardware integration for simple operation
Application Scenarios

Primarily applicable for battery materials, positive and negative electrode membranes, and electrolyte membranes requiring electrical rolling at specific temperatures. The system allows adjustable temperature, speed, and rack gap of rolling rollers. Particularly suitable for thinning and density enhancement of dry-type lithium battery-related materials, as well as composite coating applications.
