Specifications
Moisture :
≤ 0.1%
Model Number :
GN-PVDF
Certification :
CE
Melting Point :
160-168 ℃
Supply Ability :
1000000kg per month
Place of Origin :
CHINA
Payment Terms :
L/C,D/A,D/P,Western Union,T/T
Brand Name :
GELON
Product Name :
PVDF
Melting Indix :
1-2 g/10 min
Dielectric Constant :
4.50~5.50
Purity :
≥99.5%
Delivery Time :
10-15days

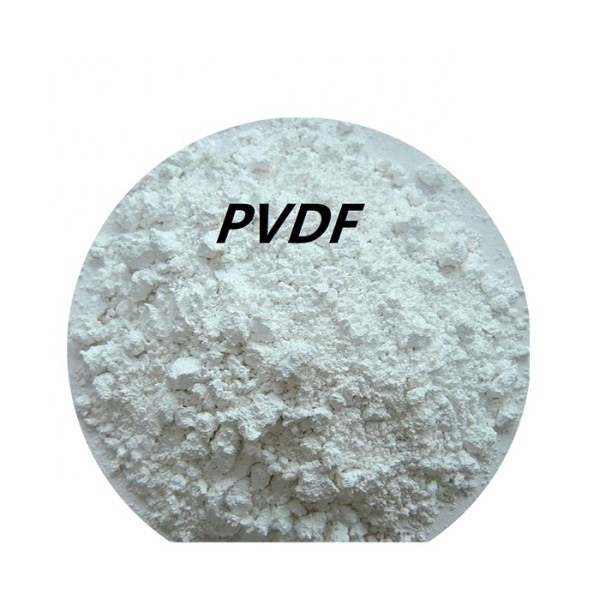

Appearance :

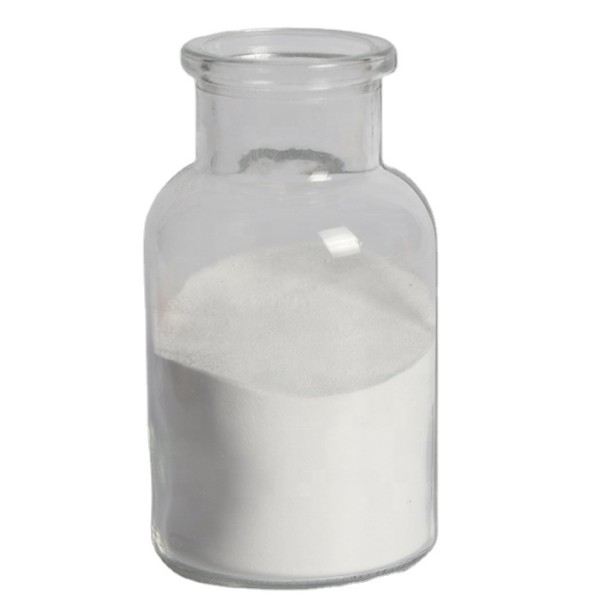

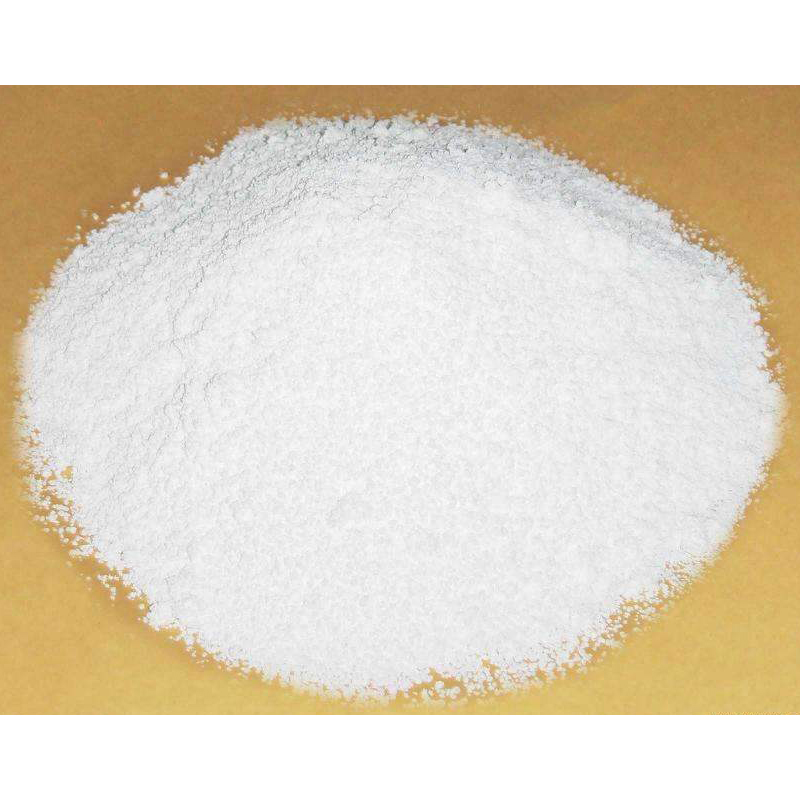

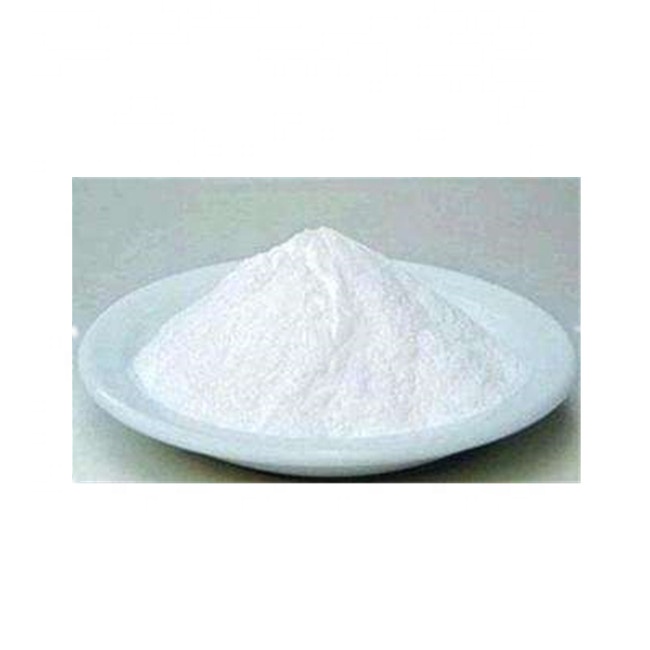

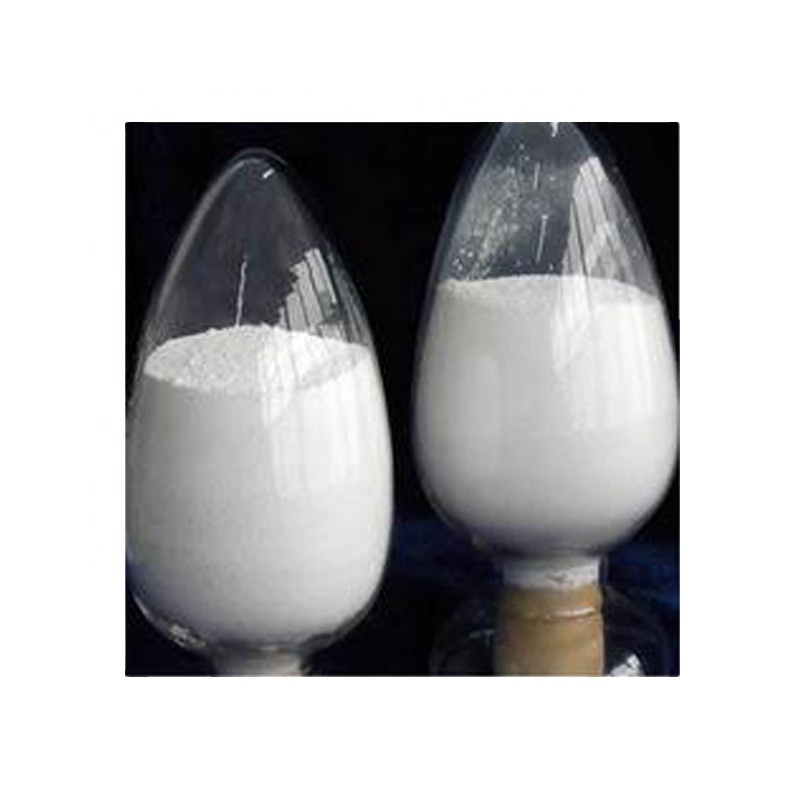

White powder
Application :
Electric Bicycles/Scooters, electric vehicles, Electric Wheelchairs, Electric Power Systems, Solar Energy Storage Systems
Packaging Details :

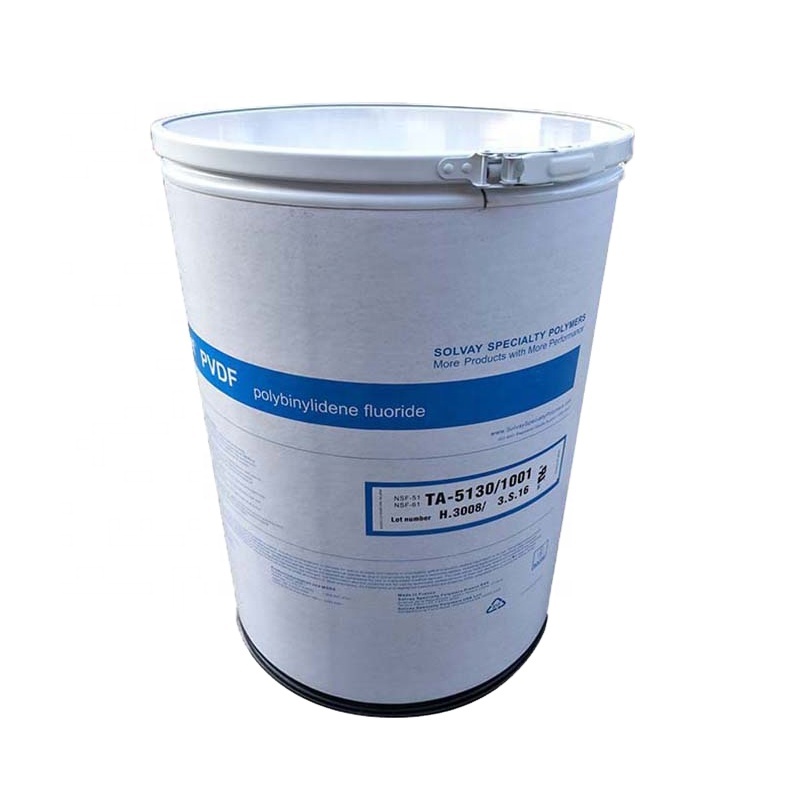

Standard exported package : Internal anticollision protection, external export wooden box packaging
Description
Gelon PVDF 5130 & HSV900 Binder High-Viscosity PVDF Powder for Li-Ion Battery Slurry Mixing
Product Overview

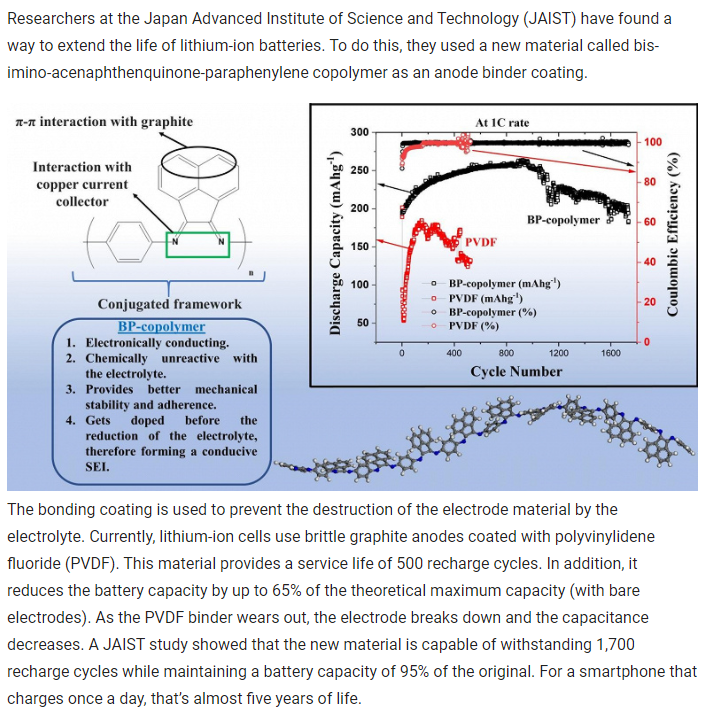

PolyVinyliDene Fluoride (PVDF) is the standard binder material used in the production of composite electrodes for lithium-ion batteries. A solution of PVDF 1−2% by mass in N-methyl-2-pyrrolidone (NMP) is mixed with an active lithium storage material such as graphite, silicon, tin, LiCoO₂, LiMn₂O₄, or LiFePO₄ and a conductive additive such as carbon black or carbon nanofibers. This slurry is cast onto a metallic current collector, and the NMP is evaporated to form a composite or paste electrode. PVDF is used because it is chemically inert over the potential range used and does not react with the electrolyte or lithium.

High-Viscosity PVDF Powder for Li-Ion Battery Slurry Mixing - Corrosion Resistant Thermoplastic Fluoropolymer Binder
Features at a Glance

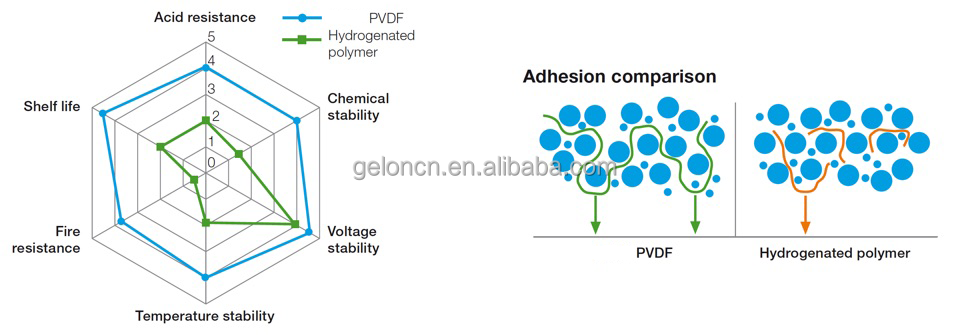

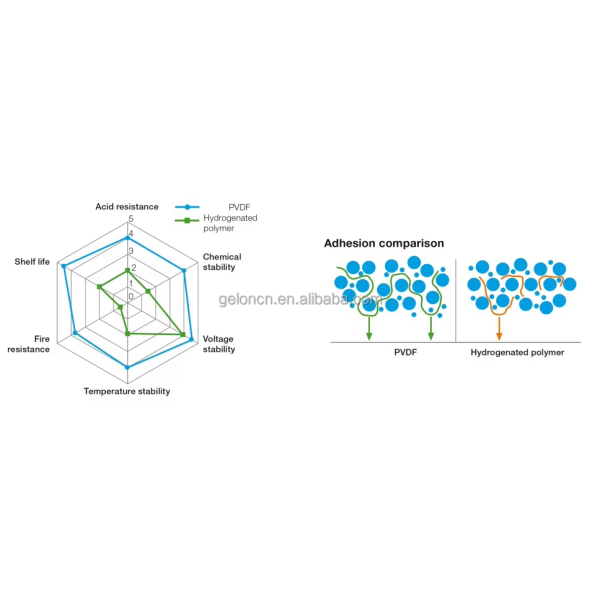

Polyvinylidene fluoride or polyvinylidene difluoride (PVDF) is a highly non-reactive thermoplastic fluoropolymer produced by the polymerization of vinylidene difluoride. PVDF is a specialty plastic used in applications requiring the highest purity, as well as resistance to solvents, acids and hydrocarbons. PVDF has low density (1.78 g/cm³) in comparison to other fluoropolymers, like polytetrafluoroethylene.

High-Viscosity PVDF Powder for Li-Ion Battery Slurry Mixing - Corrosion Resistant Thermoplastic Fluoropolymer Binder High-Viscosity PVDF Powder for Li-Ion Battery Slurry Mixing - Corrosion Resistant Thermoplastic Fluoropolymer Binder
Right elevation
High-Viscosity PVDF Powder for Li-Ion Battery Slurry Mixing - Corrosion Resistant Thermoplastic Fluoropolymer Binder
Left elevation
High-Viscosity PVDF Powder for Li-Ion Battery Slurry Mixing - Corrosion Resistant Thermoplastic Fluoropolymer Binder
Front elevation
High-Viscosity PVDF Powder for Li-Ion Battery Slurry Mixing - Corrosion Resistant Thermoplastic Fluoropolymer Binder
Product Specifications
Property Specification
Shape White Powder
Purity ≥99.5%
Standard specific gravity 1.74~1.77
Dielectric constant 100MHz 4.50~5.50
100Hz 8.00~9.50
Melting Point 160-168 ℃
Melting Index 1-2 g/10min
Solubility Transparent and dissolvable
Rotation Viscosity ≥2000 mPa*S
Intrinsic Viscosity 1.0-2.0 dL/g
Moisture ≤ 0.1 %
Molecular Weight 600,000
