304 Stainless Steel Vacuum Glove Box with PLC Control for Lithium Ion Battery Manufacturing Equipment with 1 Year Warranty
304 Stainless Steel Vacuum Glove Box with PLC Control for Lithium Ion Battery Manufacturing Equipment with 1 Year Warranty
Specifications
Material :
304st.st.,Thickness: 3mm
Outside surface :
Painting,White
Usage :
Lithium ion battery manufacturing
Warranty :
1 year
Application :
control of water and oxygen content
Brand Name :
Gelon
Model Number :
GN-GB-1
Certification :
ce
Place of Origin :
china
MOQ :
1 pcs
Price :
21500-22482USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
500pcs/month
Delivery Time :
15days
Packaging Details :
Standard exported package : Internal anticollision protection, external export wooden box packaging
Product Name :
VACUUM GLOVE BOX
Description

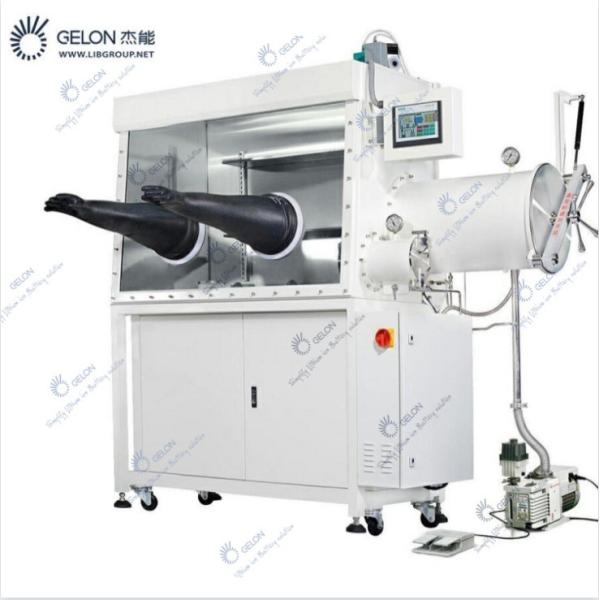

Single Working Station Vacuum Glove Box Lithium Ion Battery Manufacturing Equipment
Vacuum Glove Box Single Working Station Pouch Cell Assembly Equipment
The inert gases operate in a closed recirculation system using a fan and cleaner, continuously removing water and oxygen. Dehydration and deoxidation materials can be regenerated through programmed control. Gas replacement is managed by automatically controlled cleaning valves. Box pressure is PLC-controlled, with working pressure (±10mbar) that can be freely set and includes auto-protection (exceeding ±12mbar).
304 Stainless Steel Vacuum Glove Box with PLC Control for Lithium Ion Battery Manufacturing Equipment with 1 Year Warranty
System Components
  • Closed Box with Gradient Worktop and Dismountable Safety Glass Window
  • Pass Box
  • Cycling Scavenging Unit
  • PLC & Touch Panel Control System
  • Vacuum System
  • Display System
  • Holder
Standard Equipment Includes
  • 1 set of stainless steel 304 box, thickness: 3mm, corrosion resistant
  • 1 set of vacuum passing box (Diameter: 360mm, Length: 600mm, right side)
  • 1 set of small passing box (Diameter: 100mm, Length: 300mm, right side)
  • 1 glass window with 2 gloves ports
  • 1 pair of butyl rubber gloves
  • 1 set of lighting system
  • 1 set of power interface inner box
  • 1 set of high-powered cycling fan
  • 1 vacuum pump
  • PLC & Touch Panel
  • 3 blind flanges
  • Stand wheel
  • Foot switch
  • Water analyzer
  • Oxygen analyzer
Technical Specifications
Material: 304 Stainless Steel, Thickness: 3mm
Internal Surface: Stainless steel wire-draw treatment
Outside Surface: Painting, White
Inner Dimension: L: 1220mm × Depth: 750mm × H: 900mm
Box Lighting: Fluorescent lamp, set above the window
Filter: 0.3 micron (0.12 micron optional), 1 gas entrance and 1 gas exit
Product Images
304 Stainless Steel Vacuum Glove Box with PLC Control for Lithium Ion Battery Manufacturing Equipment with 1 Year Warranty 304 Stainless Steel Vacuum Glove Box with PLC Control for Lithium Ion Battery Manufacturing Equipment with 1 Year Warranty 304 Stainless Steel Vacuum Glove Box with PLC Control for Lithium Ion Battery Manufacturing Equipment with 1 Year Warranty
