18650 Battery Test Machine with 0.5seconds Testing Speed 0-50V Voltage Measurement and 0-4000mΩ Internal Resistance Measurement
18650 Battery Test Machine with 0.5seconds Testing Speed 0-50V Voltage Measurement and 0-4000mΩ Internal Resistance Measurement
18650 Battery Test Machine with 0.5seconds Testing Speed 0-50V Voltage Measurement and 0-4000mΩ Internal Resistance Measurement
18650 Battery Test Machine with 0.5seconds Testing Speed 0-50V Voltage Measurement and 0-4000mΩ Internal Resistance Measurement
Specifications
product name :
Battery Internal Resistance Tester
Consume power :
max 50W
RH :
40~80%RH
Height application :
less than 2KM elevation
Brand Name :
Gelon
Model Number :
GN-BTS100
Place of Origin :
China
MOQ :
1set
Supply Ability :
10set/month
Delivery Time :
within 10 days
Packaging Details :
Carton box
Temperature :
0~40℃
2voltage measurement range :
0-50V minimum resolution:10mV
1voltage measurement range :
0-5V minimum resolution:1mV
Payment Terms :
L/C,T/T
Description

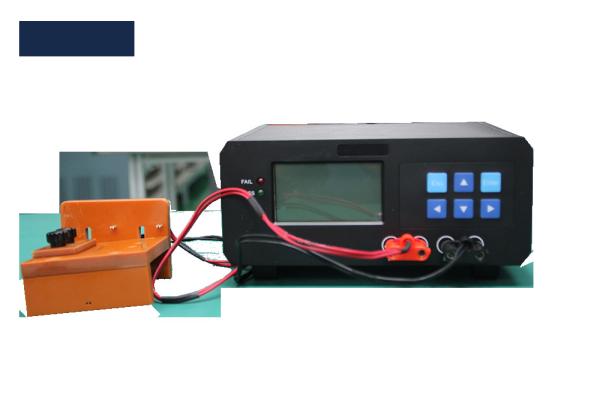

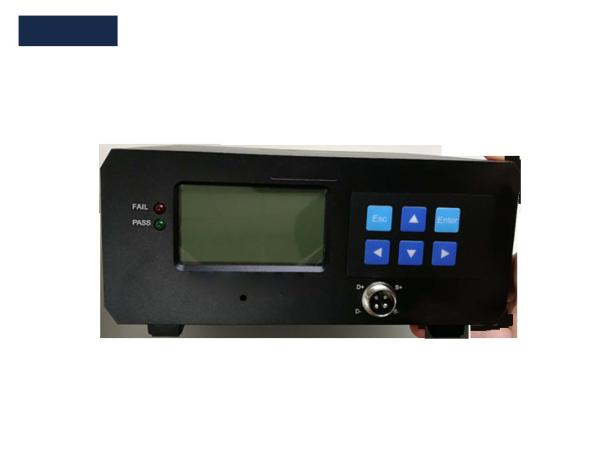

18650 Battery Test Machine Coin Battery Research Battery Internal Resistance Tester
18650 Battery Test Machine Battery Internal Resistance Tester
Specifications
Applied Environment
Temperature: 0~40℃
Height application: Less than 2KM elevation
Relative Humidity: 40~80%RH
Measurement Range
Voltage measurement range: 0-5V (minimum resolution: 1mV)
Voltage measurement range: 0-50V (minimum resolution: 10mV)
Internal resistance measurement range: 0-40mΩ (minimum resolution: 0.01mΩ)
Internal resistance measurement range: 0-400mΩ (minimum resolution: 0.1mΩ)
Internal resistance measurement range: 0-4000mΩ (minimum resolution: 1mΩ)
Performance & Physical Specifications
Testing speed: 0.5 seconds
Electric source: 220V±10% 50Hz
Consume power: Maximum 50W
Tester size: 190mm (L) × 153mm (W) × 90mm (H)
Net weight: 1.5kg
Gross weight: 2kg
18650 Battery Test Machine with 0.5seconds Testing Speed 0-50V Voltage Measurement and 0-4000mΩ Internal Resistance Measurement 18650 Battery Test Machine with 0.5seconds Testing Speed 0-50V Voltage Measurement and 0-4000mΩ Internal Resistance Measurement 18650 Battery Test Machine with 0.5seconds Testing Speed 0-50V Voltage Measurement and 0-4000mΩ Internal Resistance Measurement
Our Services
We provide comprehensive one-stop solutions (turnkey projects) for your battery manufacturing needs.
Full Set of Lithium Battery Materials
  • LiMn2O4, LTO, LiNiMnCoO2 (NMC), LiCoO2
  • Graphite (MCMB) and other cathode & anode battery materials
  • Aluminum foil, copper foils, battery separator, etc.
Full Set of Lithium Battery Equipment
  • Mixing machine
  • Coating machine
  • Oven
  • Rolling machine
  • Welding machine
  • Slitting / cutting machine
  • Winding machine
  • Sealed machine, etc.
Full Set of Lithium Battery Technology
We can design laboratories and production lines according to customer requirements.
18650 Battery Test Machine with 0.5seconds Testing Speed 0-50V Voltage Measurement and 0-4000mΩ Internal Resistance Measurement 18650 Battery Test Machine with 0.5seconds Testing Speed 0-50V Voltage Measurement and 0-4000mΩ Internal Resistance Measurement 18650 Battery Test Machine with 0.5seconds Testing Speed 0-50V Voltage Measurement and 0-4000mΩ Internal Resistance Measurement
