Lab Coating Machine with 100-250mm Width, Digital Temperature Control, and Vacuum Aluminum Plate for Lithium Battery Coating
Lab Coating Machine with 100-250mm Width, Digital Temperature Control, and Vacuum Aluminum Plate for Lithium Battery Coating
Lab Coating Machine with 100-250mm Width, Digital Temperature Control, and Vacuum Aluminum Plate for Lithium Battery Coating
Lab Coating Machine with 100-250mm Width, Digital Temperature Control, and Vacuum Aluminum Plate for Lithium Battery Coating
Lab Coating Machine with 100-250mm Width, Digital Temperature Control, and Vacuum Aluminum Plate for Lithium Battery Coating
Lab Coating Machine with 100-250mm Width, Digital Temperature Control, and Vacuum Aluminum Plate for Lithium Battery Coating
Lab Coating Machine with 100-250mm Width, Digital Temperature Control, and Vacuum Aluminum Plate for Lithium Battery Coating
Lab Coating Machine with 100-250mm Width, Digital Temperature Control, and Vacuum Aluminum Plate for Lithium Battery Coating
Lab Coating Machine with 100-250mm Width, Digital Temperature Control, and Vacuum Aluminum Plate for Lithium Battery Coating
Lab Coating Machine with 100-250mm Width, Digital Temperature Control, and Vacuum Aluminum Plate for Lithium Battery Coating
Lab Coating Machine with 100-250mm Width, Digital Temperature Control, and Vacuum Aluminum Plate for Lithium Battery Coating
Lab Coating Machine with 100-250mm Width, Digital Temperature Control, and Vacuum Aluminum Plate for Lithium Battery Coating
Specifications
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Width :
100-250mm
Brand Name :
Gelon
Model Number :
GN-VC-10
Certification :
CE
Place of Origin :
China
MOQ :
1/PCS
Supply Ability :
100 PCS Per Month
Delivery Time :
4-6 week
Packaging Details :
Wooden Carton
Size :
for Lab
Vacuum Pump :
Contains
Power :
1kw
Coating Length :
250-1000mm
Max Coating Width :
300mm
Speed :
10-100mm/Sec Variable
Dry Temperature :
100 Degeree or to Be Request
Description

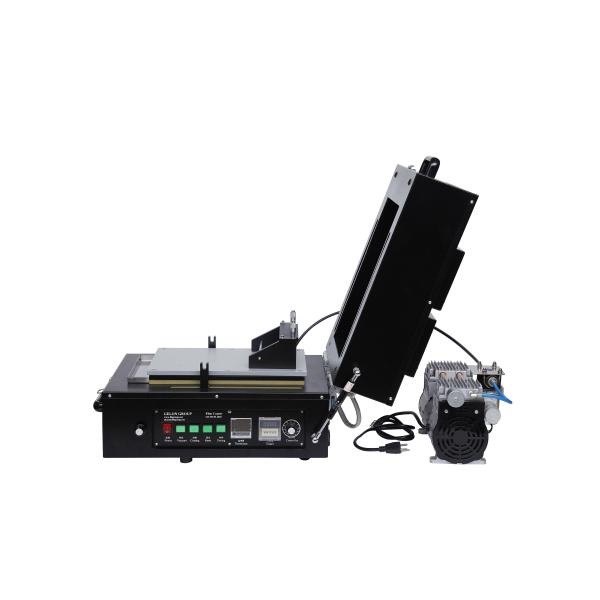

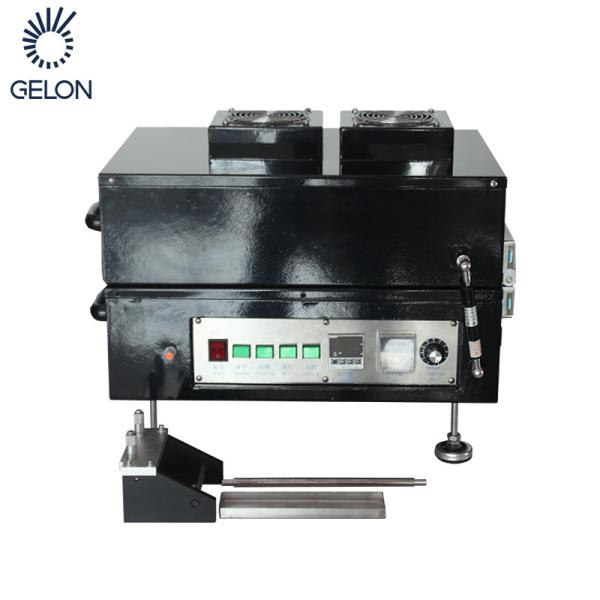

Lab Automatic Film Applicator Coating Machine
The GN-1000 automatic battery coating machine equipment is designed for laboratory use in lithium battery manufacturing. This precision equipment produces consistent thickness films with integrated heating and vacuum systems, making it ideal for research on ceramic tape castings and Li-Ion battery electrode coating.
Key Features
  • Coater width range: 10-200mm
  • Integrated dryer and vacuum pump system
  • Digital temperature control up to 200°C with ±1°C accuracy
  • Flat vacuum chuck for secure substrate placement

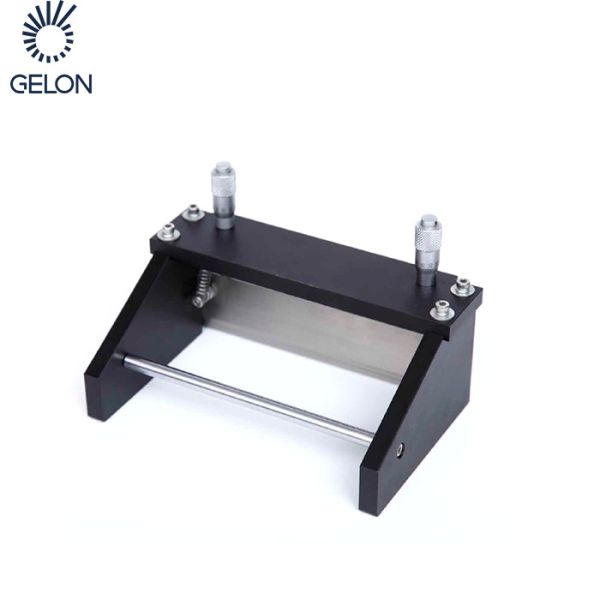

  • Adjustable micrometer applicator (0.02-3mm range)
  • Oil-free vacuum pump included
  • Portable and space-saving design
Technical Specifications
Item Parameter
Machine Size 430mm(h) × 310mm(w) × 930mm(l)
Effective Coating Area 140mm(w) × 250mm(l)
Power Consumption 400W (heating power 300W)
Electric Supply 110V
Temperature Precision ≤ ±1°C
Heating Method Electric heating, heat conduction
Coating Speed 0-100mm/s
Scraper Adjustment Range 0.02-3mm
Vacuum Plate Size 320mm(L) × 200mm(W) × 30mm(H)
Machine Weight Approximately 22kg
Coating Route 250mm
Product Images
Lab Coating Machine with 100-250mm Width, Digital Temperature Control, and Vacuum Aluminum Plate for Lithium Battery Coating
Lab Coating Machine with 100-250mm Width, Digital Temperature Control, and Vacuum Aluminum Plate for Lithium Battery Coating
Lab Coating Machine with 100-250mm Width, Digital Temperature Control, and Vacuum Aluminum Plate for Lithium Battery Coating
Lab Coating Machine with 100-250mm Width, Digital Temperature Control, and Vacuum Aluminum Plate for Lithium Battery Coating
Lab Coating Machine with 100-250mm Width, Digital Temperature Control, and Vacuum Aluminum Plate for Lithium Battery Coating
Lab Coating Machine with 100-250mm Width, Digital Temperature Control, and Vacuum Aluminum Plate for Lithium Battery Coating

Application Summary: This equipment is designed for small-scale coating applications in laboratory environments. It can complete cathode/anode coating processes and perform initial baking. The portable and flexible design makes it the ideal equipment for research and development laboratories.

Additional Characteristics

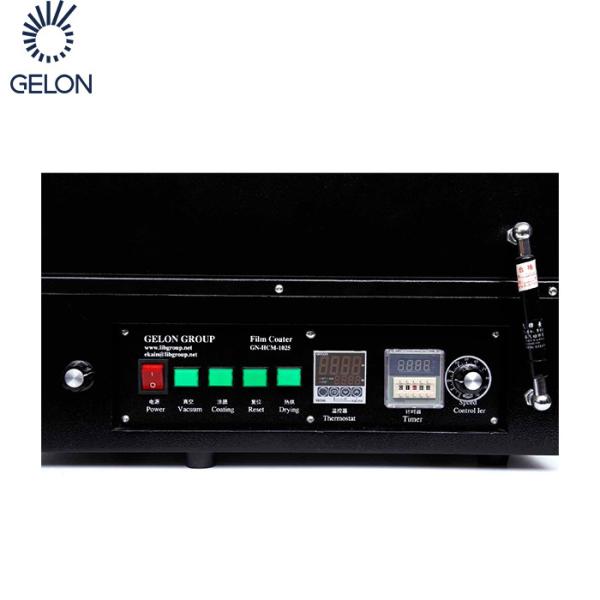

  • Digital display temperature control with maximum temperature of 200°C
  • Digital timer for precise drying time settings

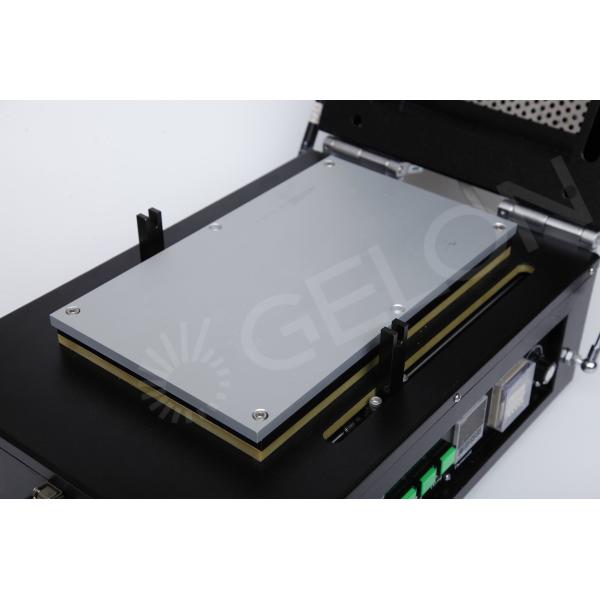

  • Vacuum aluminum plate for quick foil placement and removal
  • Adjustable coating stroke from 10-250mm
  • Precision applicator with 0.01mm thickness adjustment
  • Compact design for space-efficient laboratory use
  • Standard coating width of 100mm (custom specifications available)
