Specifications
Brand Name :
Gelon
Model Number :
Punching machine
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD$2000~7000 per set
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
1000 sets per month
Delivery Time :
20~35days
Packaging Details :
Standard packing/Wood packing
Brand :
Gelon
Type :
Pouch cell punching machine
Die cutting accuracy :
± 0.1mm
Pressure: :
0.8Mpa
Warranty :
1 year
Size :
With Customer size
Description

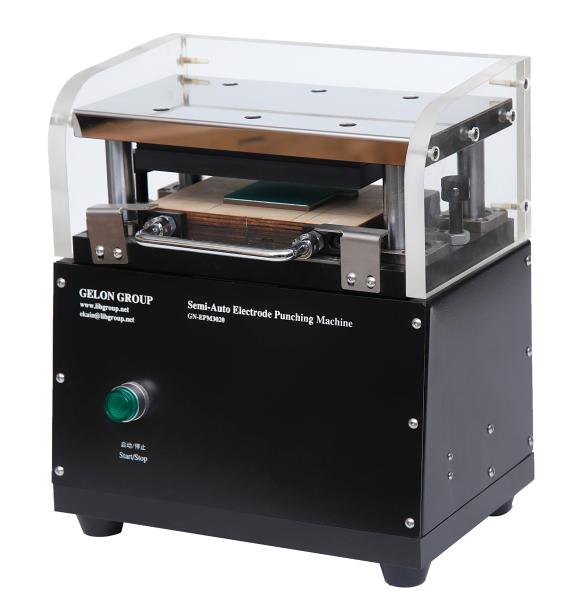

Easy Operation Desktop Lithium Ion Batteries Pouch Cell Punching Machine Laboratory Electrode Punching Equipment

Semi-automatic electrode punching machine is used for stacking cathode &anode electrode of li ion battery.It can die sheet electrode by pneumatic,and can be put in the glove box,also offer customized any cutting die to make molding and die cutting with different size of electrodes .

Sheet electrode feeding,cutting die make punching ,allow operating inside Glove box；

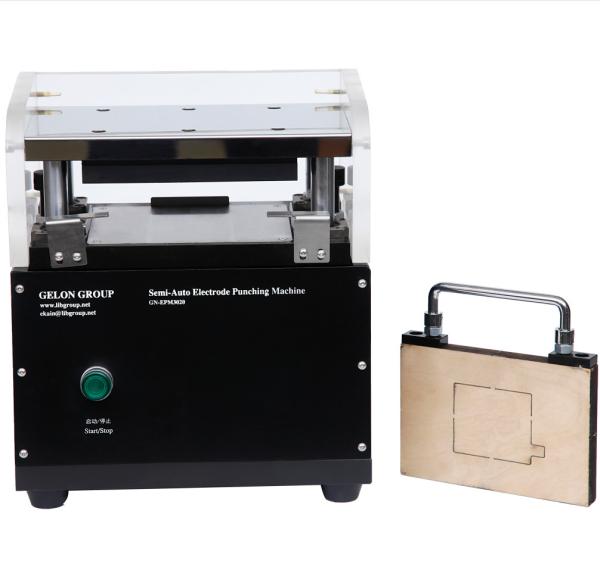

Cylinder driving, no power supply,Adjustable cutting force and speed；High strength frame ,up and down precision pressing plate,high performance cut, make cutting precision Cutting product with little burr ,no powder, no indentation and bad appearance;(Cathode & Anode) cutting dies are included,Customized cutting die is available upon request;Drawer design of upper and lower die ensures safe operation

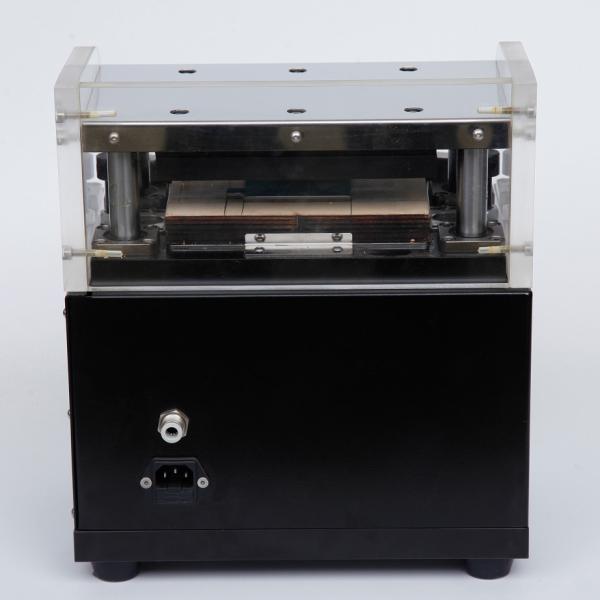

  • Gas source:0.5~1.0MPa Argon /nitrogen,or 0.7MPa compressed air(No in glove box)
  • Punching size:Max. L80*W60mm

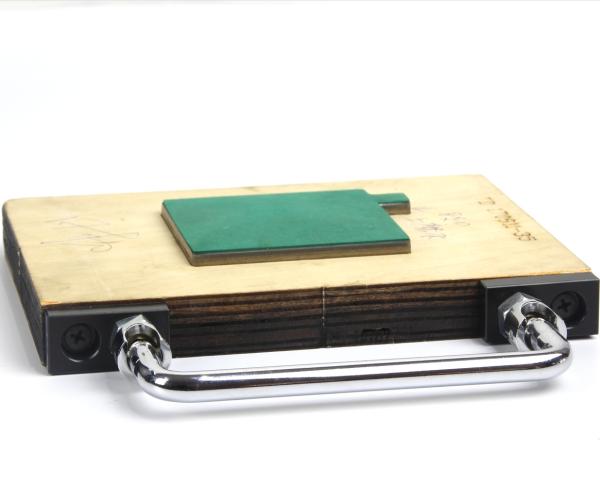

  • Standard die:Cathode56*43mm Anode58*45mm,customized as request
  • Life of cutting die:About30 thousand times(Normal use)
  • Punching pressure:Max. 1T,For electrode 500Kg(0.5MPa)
  • Punching precision:±0.1mm
  • Punching thickness:Max. 0.5mm(aluminum-plastic film)
  • Punching stroke:12mm
  • Installment size:L370mm*W245mm*H245mm
  • Punching burr:Vertical burr≤12μm,level burr≤20μm
  • Weight:32KG
  • Outside size(See below installation pic )
  • It can be customization

SPECIFICATIONS FOR POUCH CELL PUNCHING MACHINE
Maximum die size
L140mm × W110mm, it can be customized
Die cutting accuracy
± 0.1mm
Die-cutting burr height
≤ 0.02mm (can not pierce the diaphragm)
Pressure
0.8Mpa
Power
220VA frequency 50Hz / 60Hz, power 100W
Outer Size
L300 mm×W200 mm×H340mm

Laboratory Electrode Punching Machine Lithium Ion Batteries

Laboratory Electrode Punching Machine Lithium Ion Batteries
