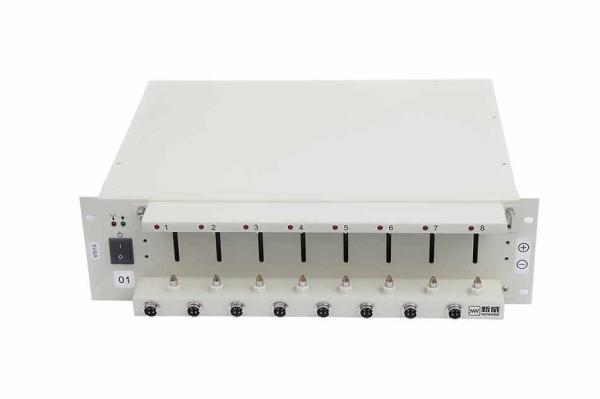

AD 16bit DA 14bit Current Voltage Battery Tester 8 Channels
AD 16bit DA 14bit Current Voltage Battery Tester 8 Channels
AD 16bit DA 14bit Current Voltage Battery Tester 8 Channels
AD 16bit DA 14bit Current Voltage Battery Tester 8 Channels
Specifications
Brand Name :
Gelon
Model Number :
Testing equipment
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Price :
USD$1000~5000 per set
Payment Terms :
L/C, D/A, D/P, T/T
Supply Ability :
10000 sets per month
Delivery Time :
20~35days
Packaging Details :
Standard packing/Wood packing
Brand :
Gelon
Type :
Testing Equipment
AD,DA Resolution :
AD:16bit DA:14bit
Input Resistance :
≥1MΩ
Per Channel Current Range :
Charge0A-20A;Discharge0A-20A
Warranty :
1 year
Description

High Precision Battery Tester Testing Equipment Used For Current And Voltage Test With 8 Channels

GN-BST8 is an eight-channel battery analyzer to analyze small coin cells and cylindrical batteries from 0.1 mA to 20A, up to 5V-20V. Each channel of the analyzer has independent constant-current and constant-voltage source, which can be programmed and controlled by computer software. This system provides most applications in battery testing fields such as electrode materials research, battery performance test, small-scale battery formation, capability grading, battery pack testing, etc. Brand new laptop with MS Window 8, MS Excel 2013 and latest version of controller software are installed and calibrated for immediate use (Up to 20 sets of analyzers can be simultaneously controlled by one PC).

Input power AC 220 V ±10% / 50 Hz
AD,DAResolution AD:16bit DA:14bit
Input Resistance ≥1MΩ
Voltage Per Channel Voltage Range Charge0V-5V;Discharge2.5V-5V
Stability ±(0.05% of reading + 0.1% of range)
Resolution 1/16384*range(5V)
Stability ≤0.1%
Current Per Channel Current Range Charge0A-20A;Discharge0A-20A
Accuracy ±(0.05% of reading + 0.1% of range)
Resolution 1/16384*range(20A)
Stability ≤0.1%
Power Per Channel Output Power 800W
Stability ≤0.1%
Time Current Response Time ≤50ms
StepTime Range >1000h/step
Stability ≤0.1%
Data Recording Record Condition Δt:(1~60000S)ΔV:(5mV~5V) ΔI:(20mA~20A)
Record Frequency 1Hz
Charge Charge Mode Constant Current Charge,Constant Voltage Charge,
Constant Current and Constant Voltage Charge
End Conditon Voltage,Current,Relative Time,Capacity
Discharge Discharge Mode Constant Current Discharge
End Condition Current,Current,Relative Time,Capacity,
Cycle LoopMeasure Range 1-9999times
Per Loop Step No. 64
Nested Loop Nested loop Function,Max Support 3 Layers
Protection Software Protection Power-down Data Protection , Off-line Testing Function , Setting Protection Condition,Setting Parameter:Voltage Low limit,Voltage Upper limit,Current Low limit,Current Upper limit,Delay Time
Hardware Protection Addition Avoiding Reverseconnection Protection Model
Voltage and Current Testing Sample 4-wire connecting
Noise <65DB
Database My SQL Databace
A Means of Communication of Upper Machine TCP/IP
Data Output EXCEL,TXT,Graph
Communication Interface EthernetPort
Per Unit Main Channels No. 8

AD 16bit DA 14bit Current Voltage Battery Tester 8 Channels
