Vertical Gel Electrophoresis Equipment Mini Protean Vertical Electrophoresis Cell
Vertical Gel Electrophoresis Equipment Mini Protean Vertical Electrophoresis Cell
Vertical Gel Electrophoresis Equipment Mini Protean Vertical Electrophoresis Cell
Vertical Gel Electrophoresis Equipment Mini Protean Vertical Electrophoresis Cell
Vertical Gel Electrophoresis Equipment Mini Protean Vertical Electrophoresis Cell
Vertical Gel Electrophoresis Equipment Mini Protean Vertical Electrophoresis Cell
Vertical Gel Electrophoresis Equipment Mini Protean Vertical Electrophoresis Cell
Vertical Gel Electrophoresis Equipment Mini Protean Vertical Electrophoresis Cell
Vertical Gel Electrophoresis Equipment Mini Protean Vertical Electrophoresis Cell
Vertical Gel Electrophoresis Equipment Mini Protean Vertical Electrophoresis Cell
Specifications
Brand Name :
JUNYI
Model Number :
JY-SCZ2+
Certification :
CE,ISO
Place of Origin :
China
MOQ :
1 set
Payment Terms :
Western Union, T/T, L/C, D/A, D/P, MoneyGram
Supply Ability :
500 sets
Delivery Time :
3-5 workdays
Packaging Details :
sound and strong carton for export
Glass Size :
100x100mm
Gel size :
82x88mm
Gel thickness :
075mm,1.0mm,1.5mm
Number of Gels :
1~2 pcs
Buffer capacity :
750ML
Dimension :
150x120x115mm
Net Weight :
1.5kg
Sample Volume :
11~30
Description

Vertical Gel Electrophoresis Equipment Mini Protean Vertical Electrophoresis Cell

JY-SCZ2+ Technical specifications

Glass plate size(W×L): 100×100 mm
Gel Size(W×L): 82×88 mm
Gel thickness: 0.75 ,1.0, 1.5(mm)
Gel amount: 1～2(pieces)
Sample volume: 1(0.75mm)11,15 wells；(1.0mm)11,15wells；(1.5mm)11,15wells
Buffer Volume: ～750(ml)
Dimension(L×W×H): 150×120×115(mm)
Net weight: 1.5(kg)

Vertical Gel Electrophoresis Equipment Mini Protean Vertical Electrophoresis CellVertical Gel Electrophoresis Equipment Mini Protean Vertical Electrophoresis Cell

Functions and Features:

• The installation of the glass plate in just 15 seconds, and does not need the knob, fast and convenient.

• With a gel casting in original position, no need to move glasses from gel making to elctrophoresis running. It is more convenient to observe gel preparing through both sides of the glasses.

• High transparent polycarbonate material injection molding, impactresistance, high temperature resistance, corrosion resistance.

• Safety cover open button design, convenient opening the cover.

• With the background color, easy to be observed in the sample adding and electrophoresis process.

• Abundant buffer not only guarantees cooling effects, but also keeps the pH Value stable during the whole experiment process.

• Auto-switch-off when the lid is removed.

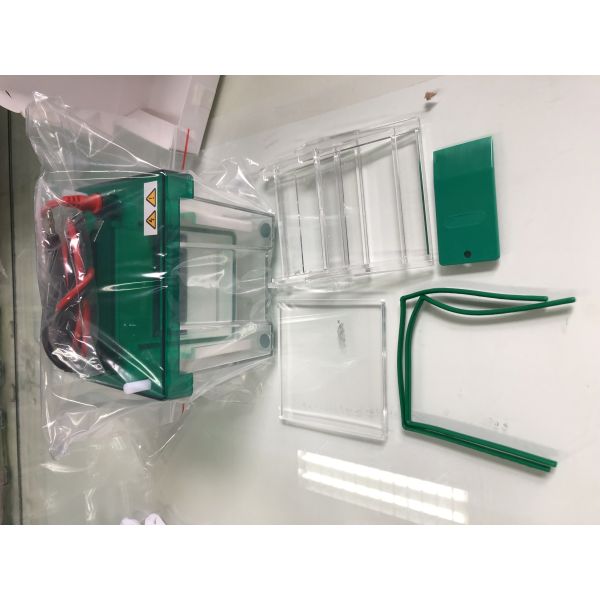

Order Packing List:

Part Name Packing Qty
Lid with cables 1
Body tank 1
Gel casting core with electrodes 1
Gel casting stand 1
Notched Glass plate 4
Spacer plates with 0.75mm glass spacer 2
Spacer plates with 1.0mm glass spacer 2
Spacer plates with 1.5mm glass spacer 2
0.75 mm thickness 11-well comb 2
1.0 mm thickness 11-well comb 2
1.5 mm thickness 11-well comb 2
0.75 mm thickness 15-well comb 2
1.0 mm thickness 15-well comb 2
1.5 mm thickness 15-well comb 2
Gel Releaser 1
Wadge-shaped plate 2
Dummy plate 1
