Orthogonal Grinding Gears with Extra-Long Integral Shaft (DINGSCO®)
Orthogonal Grinding Gears with Extra-Long Integral Shaft (DINGSCO®)
Specifications
Brand Name :
DINGSCO
Model Number :
According to customers' requests
Certification :
ISO 9001
Place of Origin :
Changsha, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T
Supply Ability :
Negotiable
Delivery Time :
(Sample order) 7 days
Packaging Details :
According to customers' requests
Material :
20CrMnTi,20NiCrMo
Shape :
Spiral Bevel Gear / Hypoid Gear
Type :
Gleason
Teeth Accuracy Grade :
ISO 4-6 Grade
Heat treatment :
Quenching / surface carburizing / nitriding
Surface Hardness :
HRC 58–62
Service Life :
20,000–50,000 hours
Transmission Efficiency :
90%–96%
Input Speed :
1500–3000 rpm
Description

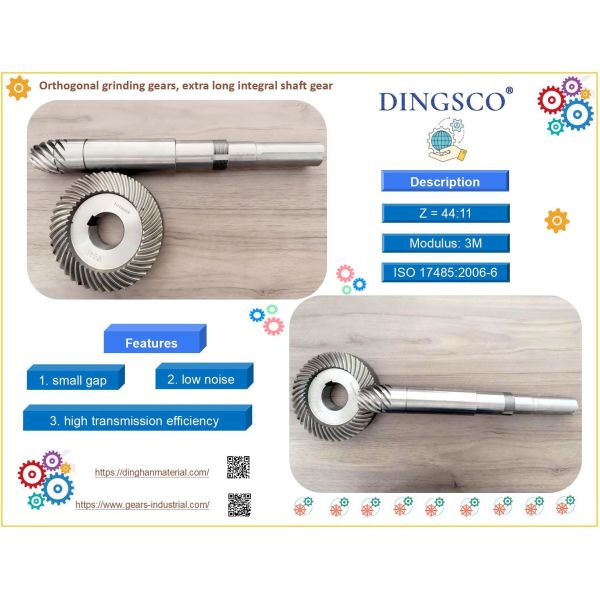

Orthogonal Grinding Gears with Extra-Long Integral Shaft (DINGSCO®)


DINGSCO’s orthogonal grinding gears (paired with extra-long integral shafts) are high-precision power transmission components, manufactured via advanced orthogonal grinding processes to meet ISO 1745:2006-6 standards. Designed for demanding industrial systems, this gear-shaft assembly combines exceptional durability, low-noise operation, and efficient power transfer.

Key Technical Features

1. Orthogonal Gear Design

  • 90° intersecting shaft arrangement for compact and efficient power transfer.

  • Ensures smooth torque output with reduced vibration.

  • Suitable for complex reducer structures where space is limited.

2. Gear Grinding Precision

  • Manufactured with gear grinding technology to achieve high tooth surface accuracy.

  • Reduces noise and backlash, ensuring stable performance even under continuous load.

  • Tooth profile and surface roughness are optimized for longer operational life.

3. Extra-Long Integrated Shaft

  • One-piece shaft structure eliminates connection joints, improving rigidity and strength.

  • Reduces assembly errors and misalignment risks.

  • Provides better load distribution across bearings and gear teeth.

4. Material & Heat Treatment

  • High-quality alloy steel (e.g., 20CrMnTi, SCM415) with carburizing and quenching process.

  • Surface hardness up to 58–62 HRC, ensuring excellent wear resistance.

  • Core toughness maintained for impact resistance and long fatigue life.


Orthogonal Grinding Gears with Extra-Long Integral Shaft (DINGSCO®)
Material High-quality Alloy Steel (20CrMnTi)
Shape Spiral bevel gear, hypoid gear
Teeth Profile Gleason
Module (M) ≤4
Accuracy Grade ISO 4-6 Grade
Service Customized
Heat treatment carburizing and quenching
Hardness HRC 58–62

Orthogonal Grinding Gears with Extra-Long Integral Shaft (DINGSCO®)
