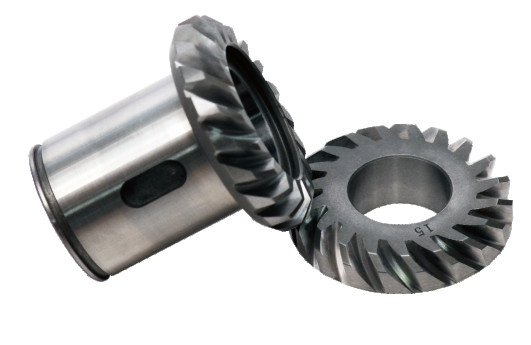

Driven Tool Holder Grinding Gear Crown Wheel Helical Bevel Gear

1. The structure of the tool seat ground bevel gear: The tool seat ground bevel gear consists of a cylindrical tool seat and a bevel gear installed on the tool seat. Bevel gears are usually made of hard materials.
2. How it works: When a bevel gear meshes with another gear, it removes material by grinding as it rotates to create the desired tooth profile. This approach allows control over the precise size and shape of the gear.
3. Application scenarios: Tool holder ground bevel gears are widely used in various mechanical equipment, especially where high precision and durability are required. They are commonly used in drivetrains in automotive, aerospace, machine tools and other industrial equipment.
4. Features: The cutter seat ground bevel gear has the following features:
5. High precision: Very high tooth profile accuracy can be achieved through the grinding process.
6. Durability: The materials used are usually hard and therefore highly durable.
7. Adaptability: Can adapt to different working conditions and environments.
8. Maintenance and care: Since bevel gears are usually located inside the equipment and may not be easily observed, regular inspection and maintenance are very important. This includes ensuring the quality and quantity of lubricants and timely replacement of severely worn parts.

DINGSCO

We're the production R&D base specializing in professional design, reserch, manufacture and sales of high-quality small module spiral bevel gears and high reduction hypoid gears and cylindrical gears. We have strong scientific research and development capabilities and is also equipped a full set of advanced equipment including seven-axis five-linkage CNC spiral bevel gear grinding machines and gear milling machines. By making the best use of the scientific and technological achievements and equipment of the Gear Research Institute of Central South University, machanical processing, heat treatment and testing. We have developed high-quality products featuring high reduction, high speed, heavy load, low noise and less teeth for users.

Non-standard customization of Dinghan gears, our company has a complete set of software to realize digital closed-loop manufacturing of spiral bevel gears, Functions such as gear design, strength calculation, contact analysis, tool calculation, tooth profile error reversal, etc. can be realized. Machining methods include five tools machining(fixed setting) & G-plete of tapper , spiral format tilt(SFT) method & hypoid format tilt (HFT) method of Cycloid equidep, etc.
