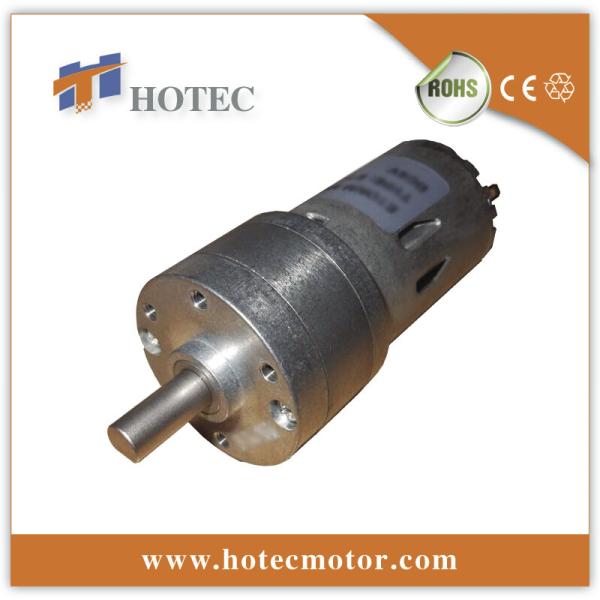

metal gearbox 32mm 12V 6 rpm gear motor
metal gearbox 32mm 12V 6 rpm gear motor
Specifications
Place of Origin :
China
Brand Name :
HOTEC
Certification :
CE,ROHS
Model Number :
HT-SOG32A2
MOQ :
500 pcs
Packaging Details :
Foam first ,then cardboard box
Delivery Time :
20 -25 days
Payment Terms :
T/T, Paypal ,Western Union
Supply Ability :
5000 pcs/day
Description

Model: HT-SOG32A2

Product: Precise spur gear motor

Typical application :

1,Security and safe industry .

2,Robotics and automation

3,Electric valve

Gear Ratio sheet:

Gear Ratio Stage

3

4

5

6

Gear Ratio

13.4

40

73

170

45.5

94

219
52

121

282
136

362
155 409
466

Gearbox Length(L)

Drawing :

metal gearbox 32mm 12V 6 rpm gear motor

Reference data:

MODEL

VOLTAGE

NO LOAD

AT MAX EFFICIENCY

AT STALL

OPERATION RANGE

NOMINAL

SPEED

CURRENT

SPEED

CURRENT

TORQUE

CURRENT

TORQUE

r/min

A

r/min

A

kg.cm

A

kg.cm

HT-SOG30A2-12447

6.0-14.0

12.0

447

≤0.20

373

≤0.7

0.6

≤2.5

4.0

HT-SOG30A2-12150

6.0-14.0

12.0

150

≤0.20

125

≤0.7

1.8

≤2.5

10.5

HT-SOG30A2-12132

6.0-14.0

12.0

132

≤0.20

110

≤0.7

2.0

 ≤2.5

12.0

HT-SOG30A2-12116

6.0-14.0

12.0

116

≤0.20

96

≤0.7

2.3

≤2.5

14.0

Pls note

The data sheet is only for your reference .

the speed is adjustable as per your requirements .

The gearbox can match other motors

The shaft size can be customized .

metal gearbox 32mm 12V 6 rpm gear motor
