Hydraulic Pump To Engine Coupler High Flexible Flywheel Drive Coupling
Hydraulic Pump To Engine Coupler High Flexible Flywheel Drive Coupling
Specifications
Brand Name :
Deren
Model Number :
WHF
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pc
Payment Terms :
L/C, T/T
Supply Ability :
200pcs per month
Delivery Time :
30 days
Packaging Details :
Plywood case with pallet
Price :
USD1000
Input :
Engine Flywheel
Output :
Hydraulic Pump
Min output :
350 Nm
Max output :
5000 Nm
Description

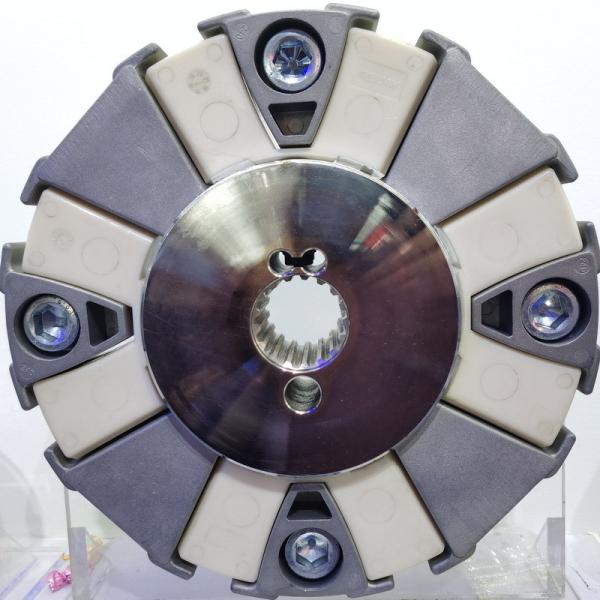

Hydraulic Pump To Engine Coupler High Flexible Flywheel Drive Coupling


350Nm to 5000 Nm

High elasticity and torsional vibration resistance Torsion Shaft Coupling for flywheels. Torsion Shaft Coupling is simple in structure, easy to install and maintenance free. The highly elastic elements are made of synthetic rubber and absorb shocks and shocks. In addition to oil resistance and high temperature resistance, it also has the characteristics of insulation and noiseless operation. In the process of transmitting torque, it does not generate loads that are not conducive to the machine.

Hydraulic Pump To Engine Coupler High Flexible Flywheel Drive Coupling

Specifications:

Model No Outside Diameter Thickness Rated torque Max. torque Max. speed
DHF-25K-52 175mm 52mm 350Nm 875Nm 5000rpm
DHF-30K-60 205mm 60mm 500Nm 1400Nm 4000rpm
DHF-30K-78 205mm 78mm 500Nm 1400Nm 4000rpm
DHF-50K-60 205mm 60mm 800Nm 2000Nm 4000rpm
DHF-50K-78 205mm 78mm 800Nm 2000Nm 4000rpm
DHF-110K-60 225mm 60mm 1200Nm 2400Nm 4000rpm
DHF-110K-78 225mm 78mm 1200Nm 2400Nm 4000rpm
DHF-160K-73 270mm 73mm 2000Nm 4000Nm 3600rpm
DHF-240K-76 330mm 76mm 2500Nm 5000Nm 3000rpm
DHF-450K-90 410mm 90mm 4000Nm 8000Nm 2500rpm
DHF-550K-90 450mm 90mm 5000Nm 10000Nm 2500rpm

Deren Transmission is a professional manufacture of various power drive components. Our experienced technical team will bring you strong support in finding ideal parts for your machines and projects.
