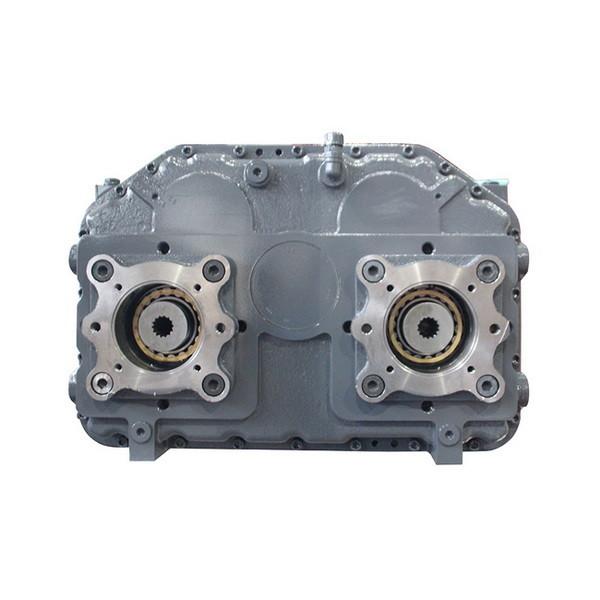

190KW Two Outputs Transfer Case for Hydraulic Pump
190KW Two Outputs Transfer Case for Hydraulic Pump
Specifications
Brand Name :
Deren
Model Number :
DPD-220
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pc
Payment Terms :
L/C, T/T
Supply Ability :
200pcs per month
Delivery Time :
30 days
Packaging Details :
Plywood case with pallet
Application :
Hydraulic Pump
Max. Input Power :
250HP
Type :
One input two output
Industry :
Agriculture machinery
Description

190KW Two Outputs Transfer Case for Hydraulic Pump

Maximum Input Power 190 kW (250 hp)


1:1 ratio @ 2800 rpm

Transfer Case is a transfer gearbox used for the connection of Diesel Engine and Hydraulic Pumps. We are making a wide variety of gear ratios, including speed-increasing and speed-reducing options. Modular design options include a flexible coupling, rubber block drive, or clutch to match your SAE engine flywheel dimensions. Independent mounting is an option, direct or with a clutch. We are also making standard and specialized SAE and DIN adaptor kits for special needs.

Features:

High Strength Aluminum Aloy housing.
Hardened Shaved gears.
Ball bearings.
Case hardened shafts.
Viton seals on input shaft.
Output rotation opposite the direction of input rotation.
Gear ratios identical on all outputs.

Specifications:

Ratio Max. input torque Max. output torque for single pump Max. input speed Max. output speed
0.68 1120 N.m 390 N.m 2500 rpm 3676 rpm
0.83 1056 N.m 450 N.m 2650 rpm 3193 rpm
1 1000 N.m 500 N.m 2800 rpm 2857 rpm

Deren Transmission is a professional manufacturer of various power drive components. Our experienced technical team will bring you strong support in finding ideal parts for your machines and projects.
