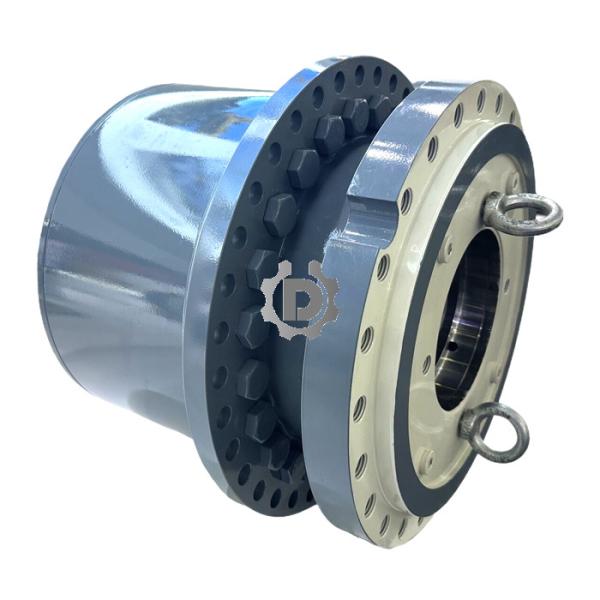

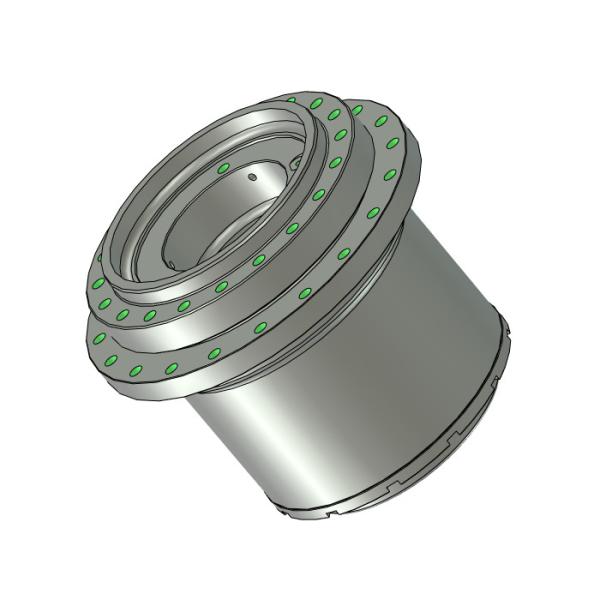

180000N.m Planetary Gearbox Travel Drive for Track Device
180000N.m Planetary Gearbox Travel Drive for Track Device
180000N.m Planetary Gearbox Travel Drive for Track Device
180000N.m Planetary Gearbox Travel Drive for Track Device
Specifications
Brand Name :
Deren
Model Number :
GFT180T3B
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
USD6000
Supply Ability :
500pcs per month
Delivery Time :
30 days
Packaging Details :
Plywood case with pallet
Series :
GFT
Max. output torque :
180000 Nm
Application :
Track drive
Weight :
635 kg
Description

180000N.m Planetary Gearbox Travel Drive for Track Device

GFT series Travel Drives are the ideal driving components for wheel or track driving vehicles and other mobile equipment. They are the perfect choice for every conceivable moving or turning application. The drives are extremely compact and thus may also be installed in space-critical mounting configurations. Based on the using of case-hardened annulus gears, the load capacity and availability of these Drives are extraordinary.

Features:

Compact structure and space-saving design

Robust main bearing system

Integrated static multiple disk parking brake

Optional Disconnect device for towing

Optional Quick disconnection device

Simple mounting

Easy oil change

Low-noise running operation

Specifications:

Model GFT180T3B
Max. output torque: 180000 N.m
Rated output torque: 90000 N.m
Ratio:

151, 175, 206, 281
Dynamic Loading: 787 KN
Static Loading: 1620 KN
Motor connection: Rexroth, Danfoss, Electric
Application: Travel for Track, Chain and Wheel driving machines

Deren Transmission is a professional manufacture of various power drive components. Our experienced technical team will bring you strong support in finding ideal parts for your machines and projects.
