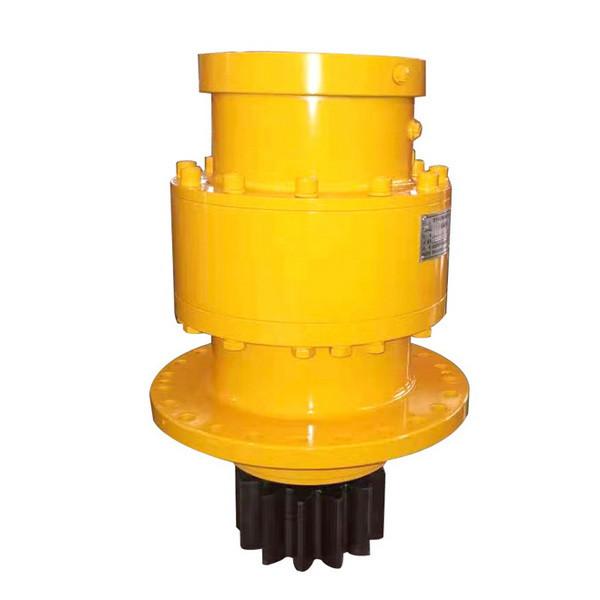

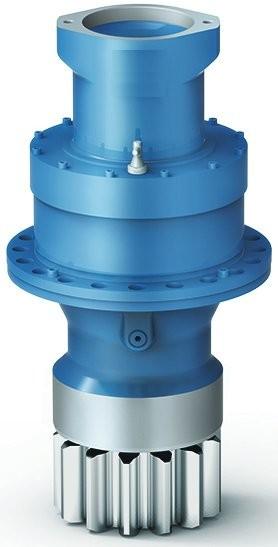

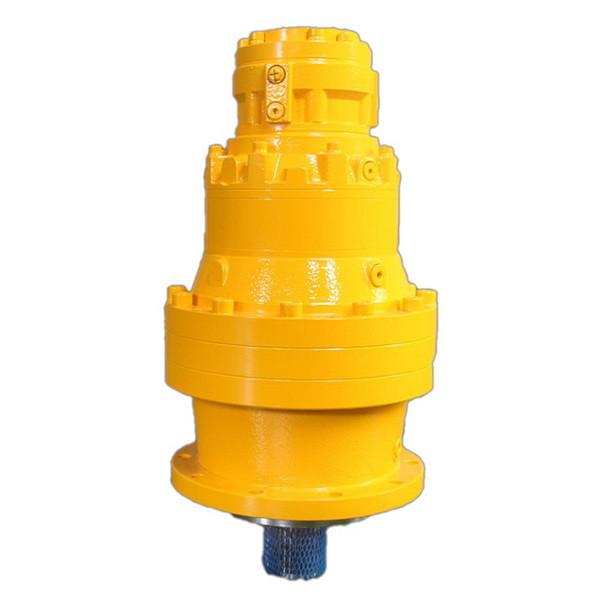

25000Nm Planetary Gearbox Slew Drive GFB060L2B
25000Nm Planetary Gearbox Slew Drive GFB060L2B
25000Nm Planetary Gearbox Slew Drive GFB060L2B
25000Nm Planetary Gearbox Slew Drive GFB060L2B
25000Nm Planetary Gearbox Slew Drive GFB060L2B
25000Nm Planetary Gearbox Slew Drive GFB060L2B
Specifications
Brand Name :
Deren
Model Number :
GFB060L2B
Certification :
ISO9001
Place of Origin :
China
MOQ :
1pc
Price :
USD2000
Supply Ability :
500pcs per month
Delivery Time :
30 days
Packaging Details :
Plywood case with pallet
Series :
GFB
Max. output torque :
25000 Nm
Application :
Excavator
Description

25000N.m Planetary Gearbox for Slew Drive in Excavators.

GFB series Slew Drives are the ideal driving components for wheel or track driving vehicles and other mobile equipment. They are the perfect choice for every conceivable moving or turning application. The drives are extremely compact and thus may also be installed in space-critical mounting configurations. Based on the using of case-hardened annulus gears, the load capacity and availability of these Drives are extraordinary.

Features:

Compact structure and space-saving design

Robust main bearing system

Integrated static multiple disk parking brake

Optional Disconnect device for towing

Optional Quick disconnection device

Simple mounting

Easy oil change

Low-noise running operation

25000Nm Planetary Gearbox Slew Drive GFB060L2B

Specifications:

Model GFB060L2B
Max. output torque: 25000 N.m (Excavator);
45000 N.m (Crane)
Ratio: 34, 40, 67, 87, 106, 120, 140, 170
Motor connection: Rexroth A2FE90, Danfoss, Electric
Output Gear M=16, 18, 20
Weight 400 kg

Deren Transmission is a professional manufacture of various power drive components. Our experienced technical team will bring you strong support in finding ideal parts for your machines and projects.
