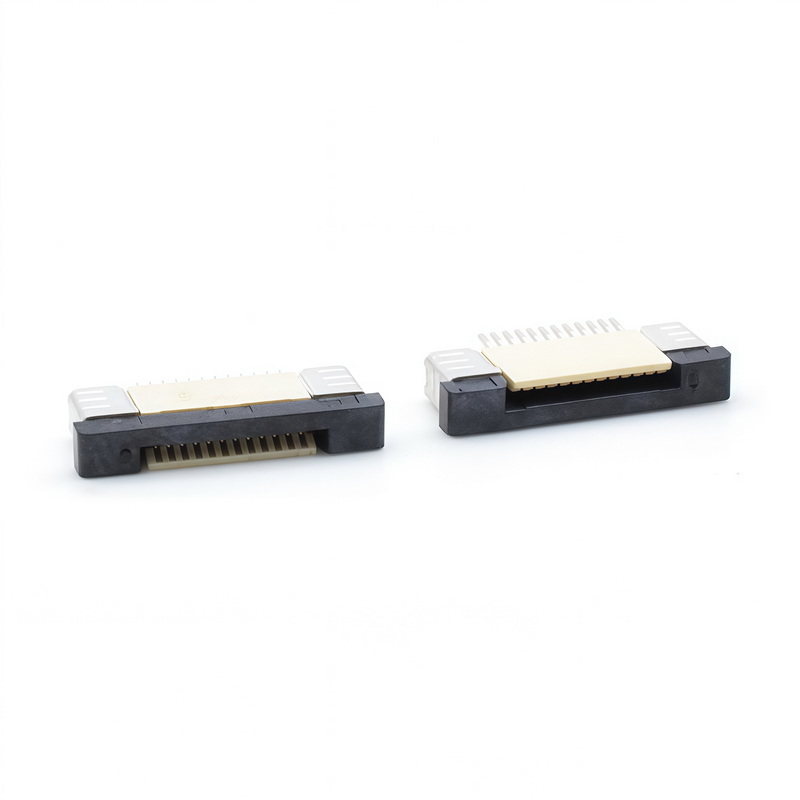

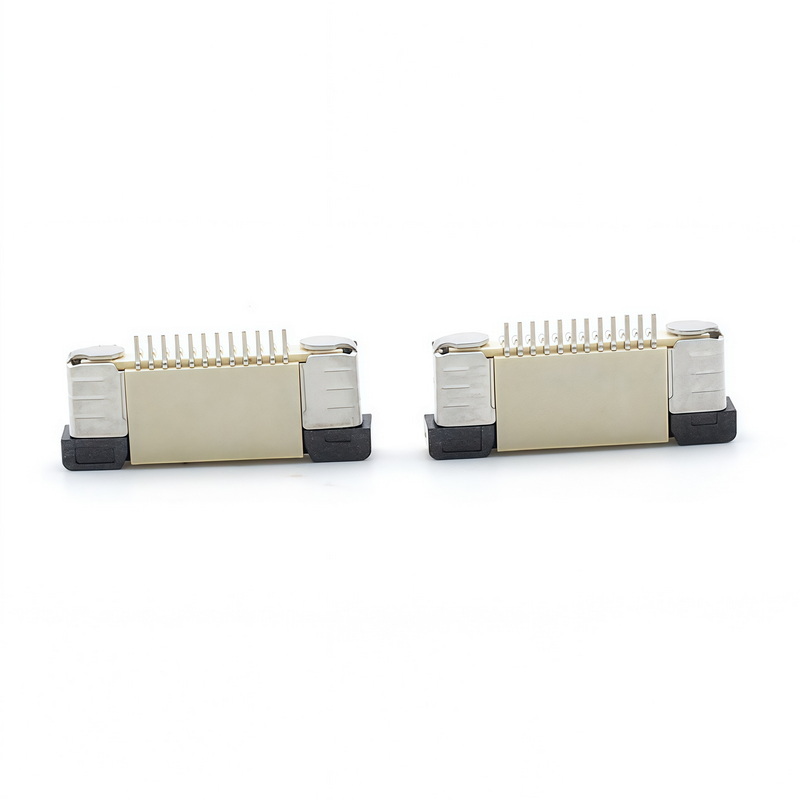

0.5mm Pitch 2.0mm Height Full Housing ZIF Type FPC Connector (Top / Bottom Contact)
0.5mm Pitch 2.0mm Height Full Housing ZIF Type FPC Connector (Top / Bottom Contact)
0.5mm Pitch 2.0mm Height Full Housing ZIF Type FPC Connector (Top / Bottom Contact)
0.5mm Pitch 2.0mm Height Full Housing ZIF Type FPC Connector (Top / Bottom Contact)
0.5mm Pitch 2.0mm Height Full Housing ZIF Type FPC Connector (Top / Bottom Contact)
0.5mm Pitch 2.0mm Height Full Housing ZIF Type FPC Connector (Top / Bottom Contact)
0.5mm Pitch 2.0mm Height Full Housing ZIF Type FPC Connector (Top / Bottom Contact)
0.5mm Pitch 2.0mm Height Full Housing ZIF Type FPC Connector (Top / Bottom Contact)
Specifications
Brand Name :
SHENGRUI
Model Number :
208065520205041xx3010x
Certification :
RoHS，Reach
Place of Origin :
China
MOQ :
1000
Price :
US$0.016 – US$0.37 per piece
Payment Terms :
T/T,Western Union
Supply Ability :
500,000 pieces per 15–30 working days
Delivery Time :
20-35 work days
Packaging Details :
1000/Reel
Product Name :
2.0mm Height Full Housing ZIF FPC Connector
Pitch :
0.5mm
PIN Number :
4PIN – 60PIN
Rated Current :
0.5A
Rated Voltage :
50V AC/DC
Operating Temperature :
-25℃ ~ +85℃
Contact Resistance :
≤30mΩ
Insulation Resistance :
≥500MΩ
Terminal Material :
Phosphor Bronze
Insulation Material :
LCP
Description
Description

0.5mm pitch 2.0mm height full housing drawer type FPC connector, available in top contact and bottom contact version. Full enclosed housing provides better dustproof and stable connection, widely used for precision consumer electronics and industrial control equipment.

Product Overview

This is a high-precision 0.5mm pitch, 2.0mm low profile drawer type FPC connector with full housing structure. It supports two installation types: top contact and bottom contact for flexible PCB layout design.

Different from flip-type FPC connectors, the drawer locking structure ensures firm insertion, stable locking and anti-loosening performance. The full enclosed plastic housing offers excellent dustproof, anti-interference and protection performance. Ultra-thin 2.0mm height design saves PCB space, ideal for slim and compact electronic devices.

Product Features
  • 0.5mm fine pitch for high-density wiring
  • 2.0mm ultra-low height slim structure
  • Full housing enclosed design for dustproof and durability
  • Drawer lock type, stable locking, not easy to loose
  • Optional top contact / bottom contact direction
  • Stable electrical performance and strong shock resistance
  • Suitable for automated SMT mass production
Application

Widely applied in LCD display modules, tablet devices, notebook computers, camera modules, smart home products, medical equipment, industrial control and other precision electronic products requiring stable FPC flexible connection.
