Specifications
Model Number :
10100001011871121106xx
Contact Resistance :
≤10mΩ
MOQ :
5000
Delivery Time :
5-8 work days
Insulation Resistance :
≥1000MΩ
Payment Terms :
T/T,Western Union
Pitch/Size :
4.8×0.5mm or 4.8x0.8mm
Withstanding Voltage :
AC 1500V/1min
Supply Ability :
50,000 pieces per 15–30 working days
Name :
187 Polarized PCB Quick Terminal
Rated Voltage :
300V
Material :
Brass, Tin-Plated
Certification :
RoHS,Reach
Place of Origin :
China
Price :
US$0.018 per piece
Rated Current :
5A - 10A
Brand Name :
SHENGRUI
Operating Temperature :
-25℃ ~ +105℃
Packaging Details :
5000 PCS per bag
Description
Product Overview

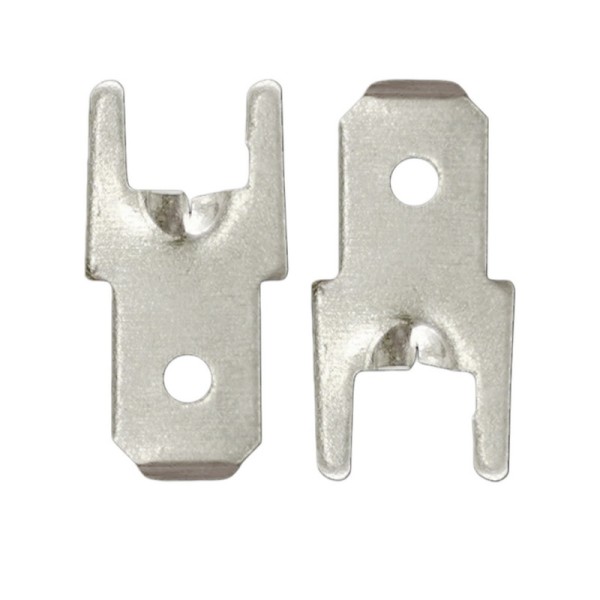

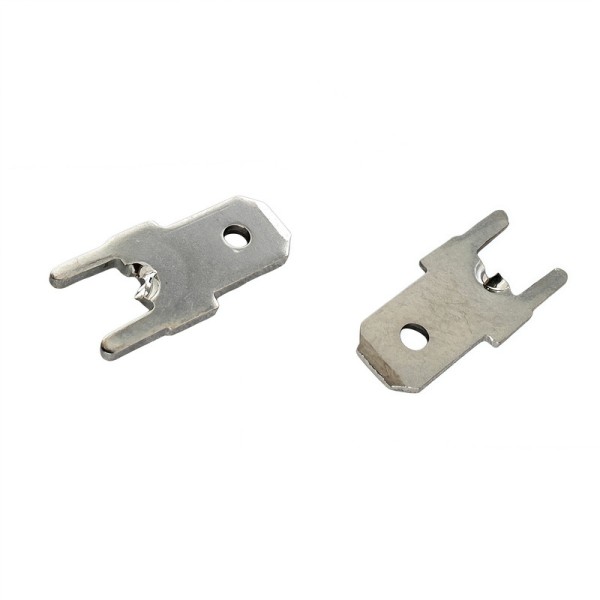

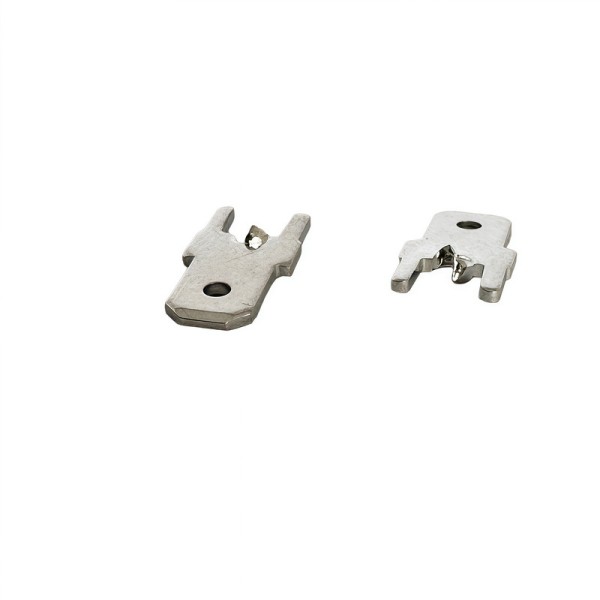

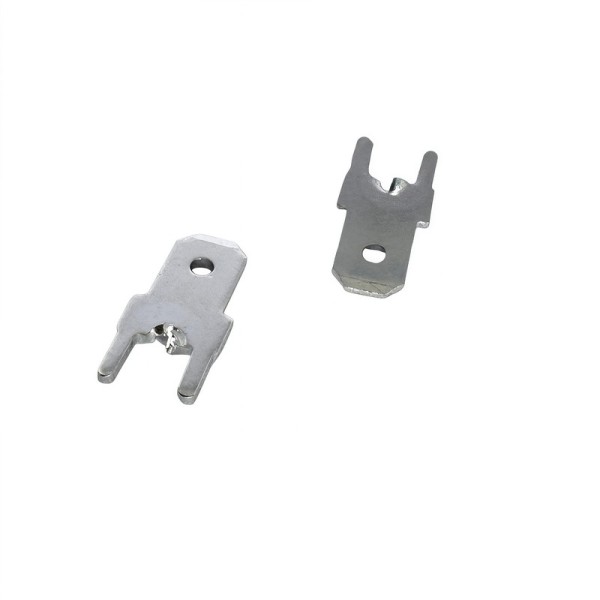

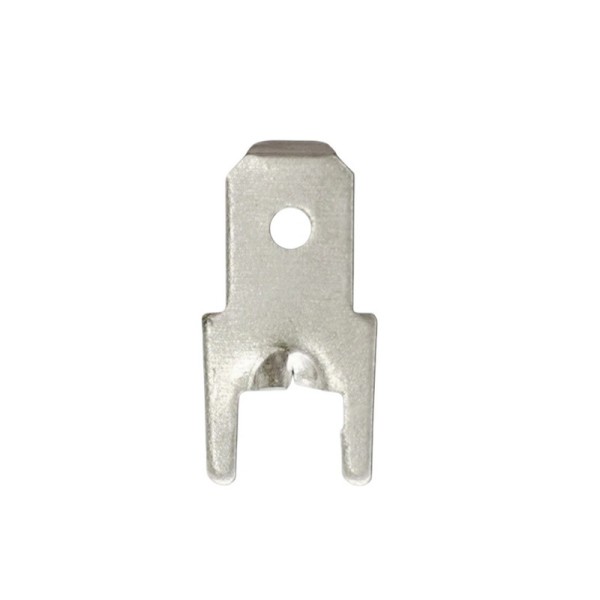

This 187 anti-reverse male tab terminal is produced from solid brass with full tin plating to enhance oxidation resistance and electrical conductivity. Two material thickness options (0.5mm / 0.8mm) can meet different current load demands of customers.

This product is provided in loose bulk packaging without carrier tape. Unique foolproof anti-reverse structural design effectively prevents reverse installation during manual PCB assembly, avoiding circuit short-circuit and component damage caused by wrong assembly. The through-hole mounting design ensures firm welding and reliable long-term power connection for household electronic equipment.

Core Advantages
  1. Two thickness options: 0.5mm & 0.8mm, match different current requirements
  2. Brass base with tin plating, anti-rust and excellent conductive performance
  3. Built-in anti-reverse foolproof structure, eliminate assembly errors
  4. Loose discrete bulk packing, suitable for manual plug-in production
  5. Stable through-hole welding, strong mechanical retention on power boards
Application Scope

Applicable to power control boards of all household small appliances:

Kitchen appliances: electric rice cooker, induction cooker, coffee machine, electric kettle, refrigerator

Cleaning appliances: robot sweeper, floor washing machine
