4.0mm Pitch Wire to Wire Connector Compatible with JST BH Series
4.0mm Pitch Wire to Wire Connector Compatible with JST BH Series
4.0mm Pitch Wire to Wire Connector Compatible with JST BH Series
4.0mm Pitch Wire to Wire Connector Compatible with JST BH Series
4.0mm Pitch Wire to Wire Connector Compatible with JST BH Series
4.0mm Pitch Wire to Wire Connector Compatible with JST BH Series
4.0mm Pitch Wire to Wire Connector Compatible with JST BH Series
4.0mm Pitch Wire to Wire Connector Compatible with JST BH Series
Specifications
Brand Name :
SHENGRUI
Model Number :
211xxxxxxx400xxxxxxxxx
Certification :
RoHS，Reach
Place of Origin :
China
MOQ :
1000
Price :
US$0.016 – US$0.03 per piece
Payment Terms :
T/T,Western Union
Supply Ability :
50,000 pieces per 15–30 working days
Delivery Time :
5-8 work days
Packaging Details :
Terminal: 4.5K/reel, Housing: 2000/Bulk Pack
Pitch :
4.00mm
Rated Current :
5A AC/DC
Rated Voltage :
300V AC/DC
Withstanding Voltage :
1500V AC/1min
Insulation Resistance :
≥1000MΩ
Contact Resistance :
≤20mΩ
Operating Temperature :
-20℃ ~ +85℃
Wire Gauge Range :
AWG 18~24
erminal Material :
Phosphor bronze, tin plated
Housing Material :
Nylon UL94-V0
Lock Style :
Snap locking
Pin Options :
2Pin ~ 5Pin
Description
Product Brief

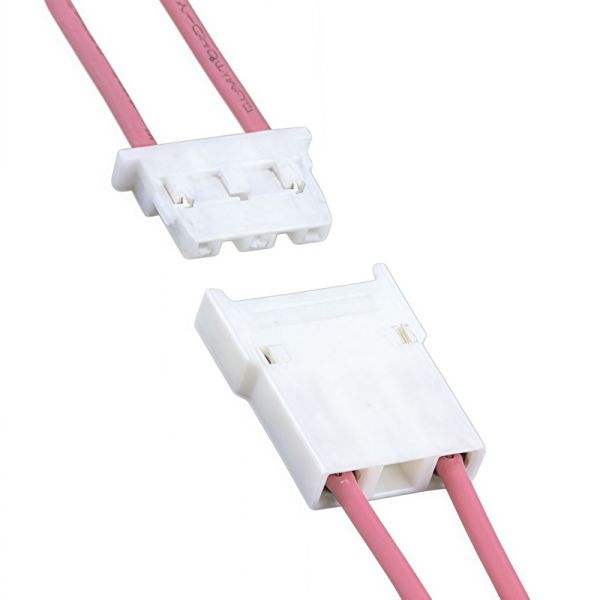

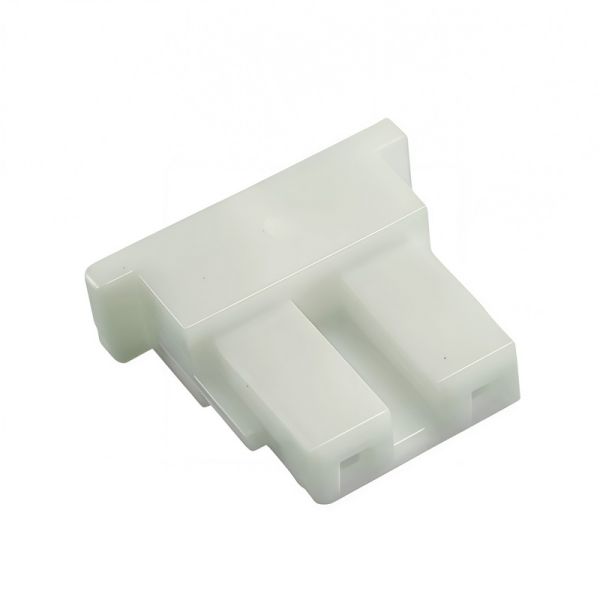

This wire-to-wire butt joint connector features 4.00mm standard pitch, fully interchangeable with original JST BH series. Equipped with secure locking structure, it ensures stable connection and convenient plugging. Available in multiple pin configurations from 2Pin to 5Pin, suitable for various electronic internal wiring assembly.

Compatible Original Part Numbers
  • 2Pin: BHR-02VS-1
  • 3Pin: BHR-03VS-1
  • 4Pin: BHR-04VS-1
  • 5Pin: BHR-05VS-1
Replacement Feature

Can directly substitute JST BH series connectors including BHR-02VS-1, BHR-03VS-1, BHR-04VS-1, BHR-05VS-1. Consistent outline dimension, mounting size and electrical property, no extra adjustment needed during replacement.

Application Scope

Widely used for power circuit connection, home appliances, control system, battery wiring, industrial electronic equipment and other wiring connection occasions
