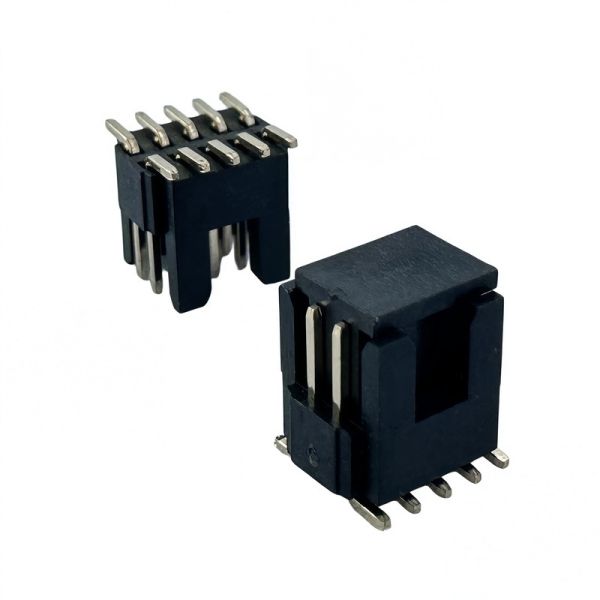

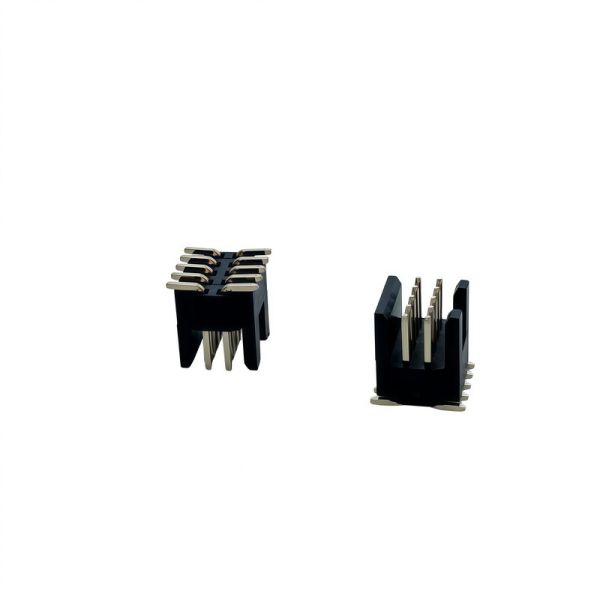

Compatible FTSH-105-01-L-DV-K Vertical SMT Board to Board Connector
Compatible FTSH-105-01-L-DV-K Vertical SMT Board to Board Connector
Compatible FTSH-105-01-L-DV-K Vertical SMT Board to Board Connector
Compatible FTSH-105-01-L-DV-K Vertical SMT Board to Board Connector
Compatible FTSH-105-01-L-DV-K Vertical SMT Board to Board Connector
Compatible FTSH-105-01-L-DV-K Vertical SMT Board to Board Connector
Specifications
Brand Name :
SHENGRUI
Model Number :
201050210412732xx20001
Certification :
RoHS，Reach
Place of Origin :
China
MOQ :
1000
Price :
US$0.105 – US$0.35 per piece
Payment Terms :
T/T,Western Union
Supply Ability :
50,000 pieces per 15–30 working days
Delivery Time :
20-45 work days
Packaging Details :
1000/Tube Pack
Compatible Model :
FTSH-105-01-L-DV-K
Pitch :
1.27mm
Pin Configuration :
2 Rows 10PIN (2×5PIN)
Customization :
Various pin counts support personalized customization
Mounting Type :
Vertical Surface Mount (SMT)
Terminal Material :
Brass
Plating :
gold-plated
Rated Current :
1.0A
Operating Temperature :
-40℃ ~ +105℃
Feature :
Polarization anti-misplug design, high-speed signal transmission support
Description
Product Brief

This connector is a high-performance alternative replacement for the FTSH-105-01-L-DV-K original model. It adopts a standard 1.27mm pitch vertical SMT mounting structure with fully consistent outline dimensions and pin definition, enabling direct replacement without PCB modification.

Featuring a professional differentiated electroplating process, the SMT soldering area is tin-plated to ensure excellent solderability and firm PCB welding. The positioning square part is gold-plated for anti-oxidation protection, while the entire pin contact area adopts full gold plating. This customized plating design effectively reduces contact resistance, prevents oxidation and abrasion, and ensures stable and high-speed signal transmission. With industrial-grade temperature resistance and durable mechanical performance, it is widely applicable to industrial control boards, precision electronic modules and high-speed signal equipment.

Product Advantages
  1. Direct Interchangeable: Fully matched with the original FTSH-105-01-L-DV-K in size and packaging, no board redesign required.
  2. Optimized Plating Technology: Tin-plated soldering part ensures stable welding; full gold-plated contact pins provide superior conductivity, oxidation resistance and wear resistance.
  3. Industrial Grade Reliability: High-temperature resistant LCP housing and precision stamped terminals guarantee long service life and stable performance in complex environments.
  4. Stable Signal Performance: Low contact impedance design supports high-speed and lossless signal transmission.
  5. Cost-Effective & Stable Supply: Reliable quality with fast delivery and bulk supply capacity, effectively reducing procurement costs.
