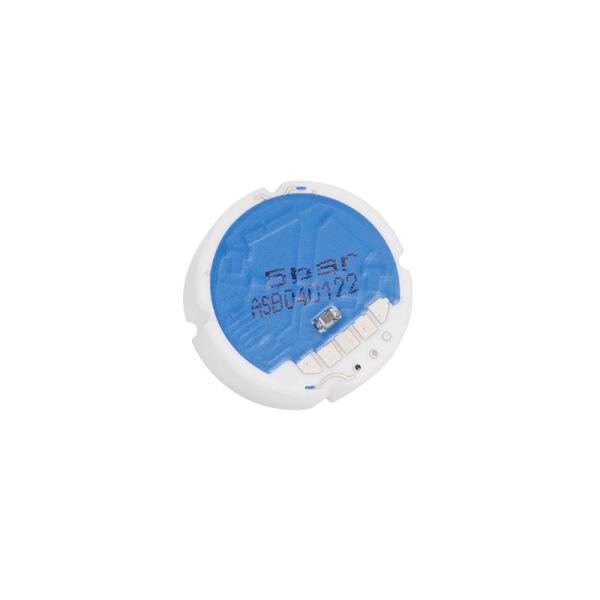

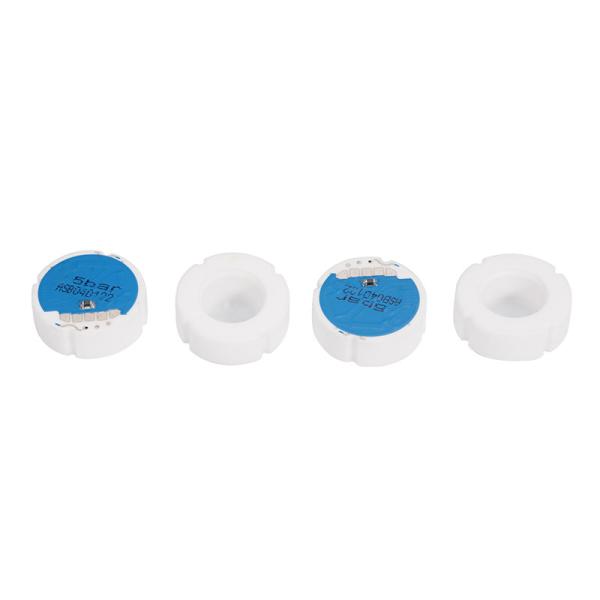

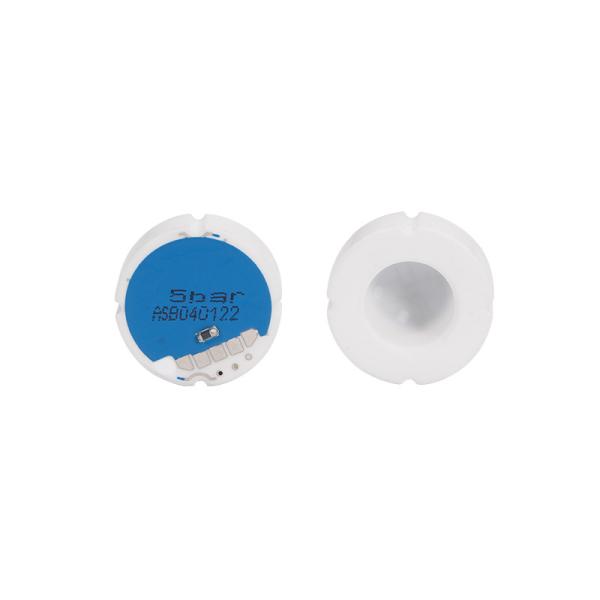

Shockproof Ceramic Capacitive Pressure Sensor For Temperature Control
Shockproof Ceramic Capacitive Pressure Sensor For Temperature Control
Shockproof Ceramic Capacitive Pressure Sensor For Temperature Control
Shockproof Ceramic Capacitive Pressure Sensor For Temperature Control
Shockproof Ceramic Capacitive Pressure Sensor For Temperature Control
Shockproof Ceramic Capacitive Pressure Sensor For Temperature Control
Shockproof Ceramic Capacitive Pressure Sensor For Temperature Control
Shockproof Ceramic Capacitive Pressure Sensor For Temperature Control
Specifications
Place of Origin :
Dongguan,China
Brand Name :
SongFast
Certification :
ISO 9001, IATF 16949
MOQ :
500pcs
Price :
$1.90 - $2.90/pieces
Packaging Details :
According to customer requirements
Delivery Time :
30-day lead time
Payment Terms :
T/T
Supply Ability :
10000pcs/month
Supply Voltage :
2-30V DC
Bridge Impedance :
※10.0KΩ±30%
Sensitivity :
※2.0-4.0mV/V/FS
TCR :
≤100ppm/℃@-40℃~125℃
Offset :
※0±0.4mV/V
Operating Temperature :
-40℃~135℃
Storage Temperature :
-40℃~150℃
Thermal offset/span shift :
※Tco&Tcs 0.02%FS/℃ Max
NonLinearity :
0.25%FS Max
Hysteresis&Repatability :
0.25%FS Max
Response Time :
＜2mS
Dielectric strength :
>2KV
Description

High-Performance Pressure Sensor Core for Temperature and Pressure Detection and Control

Main Features

  • Pressure and temperature combined into one
  • Ceramic base with high elasticity mold
  • Excellent corrosion and wear resistance
  • Shock resistant
  • Wide temperature range
  • Internal active temperature compensation with low temperature drift coefficient
  • Compact size, easy to package
  • Patented circuit layout design


Product Parameter

Parameters Electrical Characterisitics
Series Name CPS18635E/ CPS350E Series
Type combined pressure & temperature Monolithic
Size (diameter x height) φ18*6.35 mm/φ 18*3.50mm
Supply voltage 2-30 V DC
Bridge road impedance ※10.0kΩ ± 30%
TCR ≤ 100 ppm/℃@-40℃~125 ℃
NTC ※ 10KΩ±1%@25℃ ,B( 25℃/85 ℃) =3434K ±1%
Operating temperature ‘-40 ℃~135℃
Storage temperature ’-40℃~150 ℃
Temperature dirft ※ Tco&Tcs 0.02%FS/℃ Max
Nonlinearity 0.25% FS Max
Hysteresis & repeatability 0.25% FS Max
Zero offset ※0±0.4mV/V
Sensitivity ※2.0-4.0mV/V, Typ: 3.0mV/V/FS
Response time ＜ 2mS
Insulation resistance ＞ 2KV
Zero-point long term stability@25℃ Zero@25℃:＜0.25 FSO (no time accumulation)
Cycle life 2 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35℃


Product Range

CPS18635E /CPS18350E
6.35mm Series
Product Model Working Pressure Range Overload Pressure Burst Pressure
CPS18635G002T 0-2 Bar 4 6
CPS18635G005T 0-5 Bar 10 15
CPS18635G010T 0-10 Bar 20 30
CPS18635G016T 0-16 Bar 32 48
CPS18635G020T 0-20 Bar 40 60
CPS18635G025T 0-25 Bar 50 75
CPS18635G030T 0-30 Bar 60 90
CPS18635G050T 0-50 Bar 100 150
CPS18635G100T 0-100 Bar 200 300
CPS18635G200T 0-200 Bar 300 500
CPS18635G300T 0-300 Bar 450 600
CPS18635G400T 0-400 Bar 600 /
CPS18635G600T 0-600 Bar 800 /
3.50mm Series
Product Model Working Pressure Range Overload Pressure Burst Pressure
CPS18350G005T 0-5 Bar 10 15
CPS18350G010T 0-10 Bar 20 30
CPS18350G020T 0-20 Bar 40 60
CPS18350G030T 0-30 Bar 60 90
CPS18350G050T 0-50 Bar 100 150
CPS18350G100T 0-100 Bar 200 300

Superior Accuracy and Reliability
The CPS18635E and CPS18350E pressure sensors are engineered to provide precise pressure measurements, ensuring optimal performance in engine oil pressure sensors, best tire pressure gauge, and manifold absolute pressure sensor applications. Whether you're testing tire pressure or checking oil levels, you can trust the accuracy of these sensors.

Versatile Applications
These sensors are designed for a wide range of applications, including pressure sensor for air conditioner, pressure sensor for water pump, automotive diagnostics, and industrial use. Their versatility allows integration into multiple systems seamlessly, whether for high-precision tire pressure measurement or HVAC performance monitoring.

Built for Durability
Crafted from high-quality materials, the CPS18635E and CPS18350E sensors are built to withstand harsh conditions. With their resistance to corrosion, high temperatures, and moisture, these sensors are perfect for automotive and industrial environments, where durability and longevity are paramount.

Manufactured by Trusted Pressure Sensor Experts
As reliable pressure sensor manufacturers, these sensors are produced to meet the highest standards in quality and performance. Whether you are sourcing pressure transducers or pressure sensors, the CPS18635E and CPS18350E are an excellent choice for demanding applications.

FAQ

Q1. What makes Songfast's products stand out from competitors?

A: Songfast distinguishes itself through:

  • Extensive Experience: Our technical team possesses over 20 years of experience in the sensor industry.
  • Tailored Solutions: We provide rapid, professional solutions customized to meet specific customer application scenarios.
  • Personalized Customization: We welcome personalized customization requests to ensure optimal product fit.
  • Stringent Quality Control: Our dedicated production quality management team ensures strict quality control throughout the manufacturing process.
  • Efficient Delivery: We maintain a 30-day lead time for product delivery.

Q2. What official certifications and industry compliance standards has the company obtained?

A: Songfast holds the following certifications and adheres to these standards:

  • ISO 9001 (Quality Management System)
  • IATF 16949 (Automotive Quality Management System)
  • ISO 45001 (Occupational Health and Safety Management System)
  • ISO 14001 (Environmental Management System)
  • 20+ National Patents

Q3. Do you offer custom development for new products beyond your website offerings?

A: Yes, Songfast provides custom development services to meet unique customer requirements for new products.
