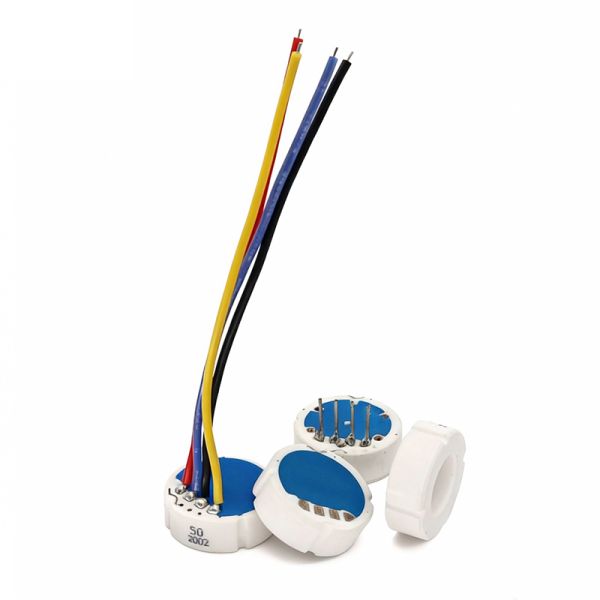

Product Description:

The RS143A Series Flush Diaphragm Pressure Sensor is a highly reliable and customizable pressure measurement solution designed to meet the diverse needs of various industrial applications. Engineered with precision and durability in mind, this sensor excels in providing accurate and consistent pressure readings even in the most demanding environments. Its unique design incorporates a flush diaphragm, making it an ideal choice for applications where clogging or contamination could impair sensor performance.

One of the standout features of the RS143A Series is its flush diaphragm pressure module, which ensures that the sensing surface is completely flat and flush with the housing. This design allows for direct contact with the process media, eliminating the risk of material buildup or residue accumulation that is common with traditional pressure sensors. As a result, the sensor offers enhanced reliability and longevity, particularly in industries such as food and beverage, pharmaceuticals, and chemical processing where hygiene and cleanliness are paramount.

Constructed from high-quality stainless steel and ceramic materials, the RS143A Series flush diaphragm pressure detector provides excellent resistance to corrosion, wear, and chemical attack. The stainless steel body guarantees robust mechanical strength and durability, while the ceramic sensing element enhances stability and accuracy over a wide range of pressure levels. This combination of materials ensures that the sensor maintains optimal performance even under extreme conditions, including high temperatures and aggressive media.

The RS143A Series flush diaphragm pressure measurement device operates efficiently within a power supply range of 12-36 VDC, offering flexibility and compatibility with various power systems. This wide voltage range allows for easy integration into existing control and monitoring setups without the need for additional power conversion equipment. Furthermore, the sensor’s design supports a variety of output signals, enabling seamless communication with data acquisition systems, PLCs, and other control devices.

Customization is a key aspect of the RS143A Series, allowing users to tailor the sensor parameters to their specific requirements. Whether it involves adjusting the pressure range, output signal type, electrical connections, or mechanical fittings, the product can be modified to suit unique application demands. This level of customization ensures that the flush diaphragm pressure sensor delivers optimal performance and reliability in every scenario.

In addition to its technical capabilities, the RS143A Series flush diaphragm pressure sensor is designed for ease of installation and maintenance. The sensor’s compact and robust construction simplifies mounting and reduces downtime during service. The flush diaphragm design also minimizes cleaning requirements, which is particularly beneficial in sanitary applications where frequent maintenance can be challenging and costly.

Overall, the RS143A Series offers a comprehensive solution for accurate and dependable pressure measurement. Its flush diaphragm pressure module design, coupled with high-grade stainless steel and ceramic materials, delivers exceptional durability and precision. The broad power supply compatibility and extensive customization options further enhance its appeal across a wide range of industries. Whether you need a flush diaphragm pressure detector for clean media applications or a rugged flush diaphragm pressure measurement device for harsh environments, the RS143A Series stands out as a top choice for professionals seeking quality and performance.

Features:

• Product Name: Flush Diaphragm Pressure Sensor
• Series Name: RS143A Series
• Accuracy Grade: 0.5%FS
• Weight: Approximately 1.0kg
• Output Options: 0.5-4.5VDC, 4-20mA, and more
• Material: Stainless Steel and Ceramic
• Features a Flush Diaphragm Pressure Sensing Element for reliable measurements
• Designed as a Flush Diaphragm Pressure Module for easy integration
• Durable construction suitable for various industrial applications

Technical Parameters:

Applications:

The Flush Diaphragm Pressure Sensor from Songfast, a reputable brand based in Dongguan, China, is designed to deliver precise and reliable pressure measurement in a wide range of applications. Certified under ISO 9001 and IATF 16949, this sensor guarantees high-quality performance, making it an ideal choice for industries requiring stringent quality standards. With an accuracy grade of 0.5%FS and a supply voltage range of 10~30V (12-36 VDC power supply), this Flush Diaphragm Pressure Feedback Sensor offers consistent and accurate pressure data essential for critical process control.

Thanks to its robust design, including threaded or flanged connection types, the Flush Diaphragm Pressure Detector is well-suited for harsh environments, with a storage temperature range from -40℃ to 150℃. This durability allows it to perform reliably in demanding conditions such as chemical processing plants, food and beverage production, pharmaceutical manufacturing, and water treatment facilities where hygiene and corrosion resistance are vital. The flush diaphragm design ensures that the sensor’s measuring surface is smooth and free from crevices, making it ideal for measuring viscous, sticky, or particulate-laden fluids without clogging or contamination.

The Flush Diaphragm Pressure Module finds extensive use in applications requiring sanitary conditions and easy cleaning, such as in the dairy industry and biotechnology sectors. Its ability to provide accurate pressure feedback in real-time supports process optimization and safety monitoring, which are critical in maintaining product quality and operational efficiency. Moreover, with a minimum order quantity of 500 pieces and a supply ability of 10,000pcs per month, Songfast can accommodate both small-scale projects and large industrial orders, offering flexible packaging according to customer requirements.

With competitive pricing ranging from $3.60 to $5.60 per piece and reliable delivery times, the Flush Diaphragm Pressure Sensor is a cost-effective solution for manufacturers seeking dependable pressure measurement devices. Payment terms via T/T further facilitate smooth transactions. Overall, this sensor is perfectly suited for diverse industrial scenarios, including hydraulic systems, pneumatic controls, food processing lines, and pharmaceutical equipment, where precision and hygiene are paramount. Choosing Songfast’s Flush Diaphragm Pressure Feedback Sensor ensures enhanced process control, durability, and compliance with international quality standards.

FAQ:

Q1: What is the brand name of the Flush Diaphragm Pressure Sensor?

A1: The Flush Diaphragm Pressure Sensor is manufactured under the brand name Songfast.

Q2: Where is the Flush Diaphragm Pressure Sensor produced?

A2: This product is made in Dongguan, China.

Q3: What certifications does the Flush Diaphragm Pressure Sensor have?

A3: The sensor is certified with ISO 9001 and IATF 16949, ensuring high quality and industry standards compliance.

Q4: What is the minimum order quantity and pricing for this sensor?

A4: The minimum order quantity is 500 pieces, with prices ranging from $3.60 to $5.60 per piece depending on specifications and order size.

Q5: What are the payment terms and delivery capabilities?

A5: Payment is accepted via T/T (Telegraphic Transfer), and the supply ability is 10,000 pieces per month, with packaging customized according to customer requirements.
