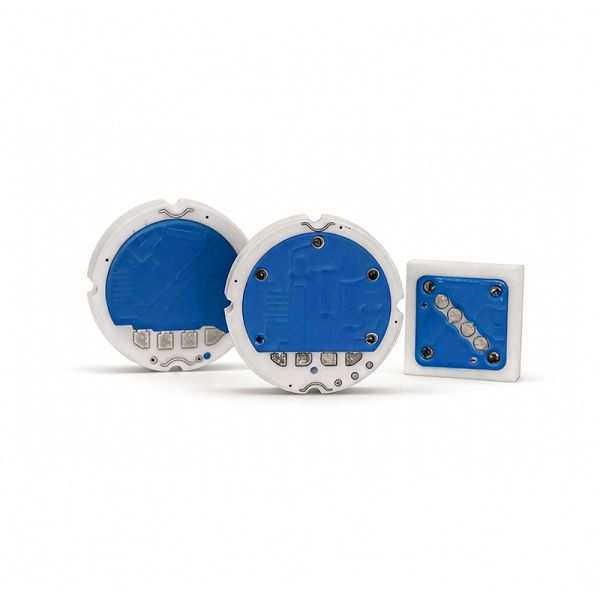

Product Description:

The Flush Diaphragm Pressure Sensor is a highly reliable and versatile device designed to provide accurate pressure measurements in a wide range of industrial and commercial applications. This sensor is specifically engineered with a flush diaphragm pressure sensing element, which ensures excellent performance when measuring media that contain viscous, corrosive, or particulate-laden fluids. The flush diaphragm design eliminates crevices and dead spaces, making it ideal for hygienic and sanitary environments such as food processing, pharmaceuticals, and biotechnology, where cleanliness and easy maintenance are critical.

One of the key features of this Flush Diaphragm Pressure Sensor is its flexible output options, which include 0.5-4.5 VDC and 4-20 mA signals. These output signals provide seamless integration with various control systems, data acquisition units, and PLCs, enabling real-time monitoring and precise control of pressure parameters. The availability of multiple output types makes this sensor adaptable to different industrial setups and communication protocols, enhancing its versatility and user-friendliness.

The sensor operates within a power supply range of 12 to 36 VDC, allowing it to function efficiently in diverse power environments. This broad power supply range ensures stable operation and compatibility with most industrial power systems, reducing the need for additional power conditioning equipment. The robust power design contributes to the sensor’s reliability and longevity, even in demanding conditions.

Customization is a significant advantage offered with this Flush Diaphragm Pressure Sensor. Manufacturers and end-users can tailor the sensor specifications to meet specific application requirements, including customized pressure ranges, output signals, electrical connections, and mechanical fittings. This level of customization ensures that the sensor precisely fits the unique needs of each application, optimizing performance and integration without compromising on quality or accuracy.

Weighing approximately 1.0 kg, this sensor strikes a balance between sturdiness and manageability. Its compact and robust construction ensures durability and resistance to mechanical stresses, vibrations, and harsh environmental conditions. The flush diaphragm design also minimizes the risk of damage from external forces, making it suitable for installation in challenging locations where space and protection are concerns.

The Flush Diaphragm Pressure Feedback Sensor is engineered to provide precise and reliable feedback for various process control systems. Its flush diaphragm pressure sensing element ensures that the sensor can accurately detect pressure changes without being affected by the properties of the media. This feature is particularly beneficial in applications where clogging, contamination, and corrosion could otherwise impair sensor function and longevity.

In addition to its technical capabilities, the Flush Diaphragm Pressure Sensor is designed with ease of installation and maintenance in mind. The sensor’s construction allows for straightforward cleaning and inspection, significantly reducing downtime and operational costs in hygienic and sanitary environments. This ease of maintenance, combined with high measurement accuracy, makes it an ideal choice for industries requiring stringent quality control and regulatory compliance.

Overall, the Flush Diaphragm Pressure Sensor is an advanced sensing solution that offers precise pressure measurement, durable construction, flexible output options, and customizable features. Whether used for process monitoring, control feedback, or safety systems, this sensor delivers dependable performance and adaptability, making it an essential component in modern industrial automation and instrumentation.

Features:

• Product Name: Flush Diaphragm Pressure Sensor
• Series Name: RS143A Series
• Application: Automotive, HVAC Industry, Domestic Appliances, Process-Control, Pump, Compressor
• Accuracy Grade: 0.5%FS
• Pressure Type: Flush Diaphragm Pressure Sensor
• Supply Voltage: 10~30V
• Designed as a reliable Flush Diaphragm Pressure Feedback Sensor for various industrial applications
• Provides precise and stable measurements as a Flush Diaphragm Pressure Sensor
• Ideal Flush Diaphragm Pressure Feedback Sensor for automotive and HVAC industry needs

Technical Parameters:

Applications:

The Songfast RS143A Series Flush Diaphragm Pressure Sensor is an advanced Flush Diaphragm Pressure Measurement Device designed to deliver precise and reliable pressure readings across a wide range of industrial applications. Manufactured in Dongguan, China, this sensor is certified by ISO 9001 and IATF 16949, ensuring high quality and performance standards. With an accuracy grade of 0.5%FS and a measurement range spanning from 0-10kPa up to 20MPa, the RS143A Series is ideal for applications demanding both precision and durability.

This Flush Diaphragm Pressure Detector is especially suited for environments where hygienic and flush mounting is critical, such as in the food and beverage, pharmaceutical, and chemical processing industries. Its flush diaphragm design prevents clogging and contamination, making it perfect for measuring viscous, sticky, or corrosive fluids. Additionally, its robust construction allows it to operate in extreme storage temperatures ranging from -40℃ to 150℃, providing reliable performance even in harsh conditions.

The sensor supports multiple output options, including 0.5-4.5VDC and 4-20mA, allowing seamless integration with various control systems and data acquisition setups. With a supply ability of 10,000 pieces per month and a minimum order quantity of 500pcs, Songfast ensures timely delivery and scalable production to meet the demands of large-scale projects. The packaging details are customized according to customer requirements, ensuring the product arrives safely and ready for deployment.

Typical application scenarios for the Songfast Flush Diaphragm Pressure Sensor include hydraulic systems, process control in chemical plants, water and wastewater management, and pneumatic equipment monitoring. Its flush diaphragm design also makes it a preferred choice in sanitary applications where sterilization and easy cleaning are essential. Furthermore, it is highly effective in monitoring pressure in systems dealing with aggressive media or solids-laden fluids, thanks to its flush membrane that eliminates dead zones and reduces maintenance.

With competitive pricing ranging from $3.60 to $5.60 per piece and payment terms via T/T, the Songfast RS143A Series Flush Diaphragm Pressure Sensor offers an excellent balance of cost-efficiency, quality, and performance. Whether deployed as a Flush Diaphragm Pressure Measurement Device, Flush Diaphragm Pressure Detector, or Flush Diaphragm Pressure Sensor, this product provides dependable, accurate pressure measurement solutions tailored to diverse industrial needs.

FAQ:

Q1: What is the brand and origin of the Flush Diaphragm Pressure Sensor?

A1: The Flush Diaphragm Pressure Sensor is manufactured by Songfast and originates from Dongguan, China.

Q2: What certifications does the Flush Diaphragm Pressure Sensor have?

A2: This product holds ISO 9001 and IATF 16949 certifications, ensuring high quality and reliability.

Q3: What is the minimum order quantity for the Flush Diaphragm Pressure Sensor?

A3: The minimum order quantity is 500 pieces.

Q4: What is the price range for the Flush Diaphragm Pressure Sensor?

A4: The price ranges from $3.60 to $5.60 per piece, depending on order quantity and specifications.

Q5: What are the packaging and delivery details for this product?

A5: Packaging is done according to customer requirements. The supply ability is 10,000 pieces per month, with a delivery time matching this capacity.

Q6: What are the payment terms for purchasing the Flush Diaphragm Pressure Sensor?

A6: Payment is typically made via T/T (Telegraphic Transfer).
