Flush Diaphragm Pressure Sensor Core Ceramic Pressure Sensor Ceramic Sensor Core Pressure Measure Sensor
Flush Diaphragm Pressure Sensor Core Ceramic Pressure Sensor Ceramic Sensor Core Pressure Measure Sensor
Flush Diaphragm Pressure Sensor Core Ceramic Pressure Sensor Ceramic Sensor Core Pressure Measure Sensor
Flush Diaphragm Pressure Sensor Core Ceramic Pressure Sensor Ceramic Sensor Core Pressure Measure Sensor
Specifications
Brand Name :
Songfast
Model Number :
RS186A
Certification :
ISO 9001, IATF 16949
Place of Origin :
Dongguan,China
MOQ :
500pcs
Price :
$3.60 - $5.60/pieces
Payment Terms :
T/T
Supply Ability :
10000pcs/month
Delivery Time :
30-day lead time
Packaging Details :
According to customer requirements
Type :
Flush Diaphragm pressure sensor core
Size (diameter x height) :
φ18*6.(**) mm
Material :
Ceramic
Supply voltage :
2-30 V DC
Operating temperature :
-40 ℃~135℃
Storage temperature :
-40℃~150 ℃
Bridge road impedance :
※10.0kΩ ± 30%
Output accuracy :
※±1.0% Vcc@0-70 ℃
Response time :
＜ 2mS
Description

Main Features

  • Patented circuit layout design
  • Unique structural design
  • Ultra-high overload and burst pressure, suitable for high-impact pressure scenarios
  • Wide temperature range, broad applicability
  • High-elasticity diaphragm to enhance sensitivity and meet high-precision measurement requirements
  • Supports precise data acquisition

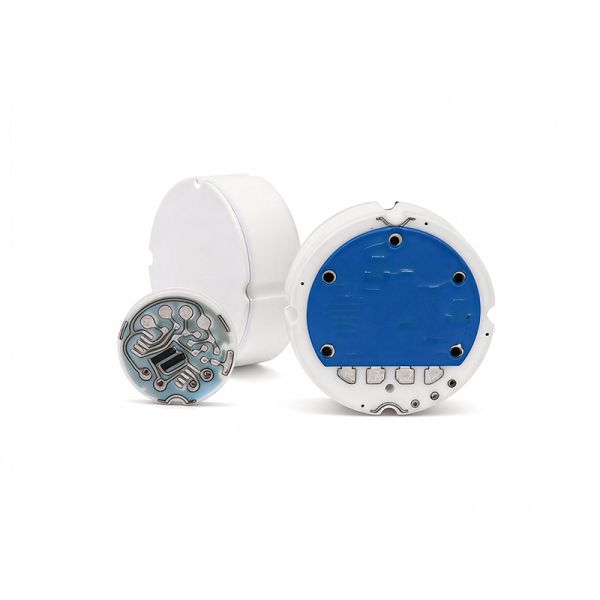

Flush Diaphragm Pressure Sensor Core Ceramic Pressure Sensor Ceramic Sensor Core Pressure Measure Sensor



Product Parameters

Parameters Electrical characterisitics
Series Name RS186A/ RS183A Series
Type Temperature compensation Flush diaphragm
Size (diameter x height) φ18*6.(**) mm/ φ18*3.(**)mm (height customizable )
Supply voltage 2-30 V DC
Bridge road impedance ※10.0kΩ ± 30%
TCR ≤ 100 ppm/℃@-40℃~135 ℃
Operating temperature ‘-40 ℃~135℃
Storage temperature ’-40℃~150 ℃
Temperature dirft ※ Tco&Tcs 0.02%FS/℃ Max
Output accuracy ※±1.0% Vcc@0-70 ℃, ±3.0%Vcc@-40 ℃~135℃
Nonlinearity 0.25% FS Max
Hysteresis & repeatability 0.25% FS Max
Zero offset ※0±0.4mV/V
Sensitivity ※2.0-4.0mV/V, Typ: 3.0mV/V/FS
Response time ＜ 2mS
Insulation resistance ＞ 2KV
Zero-point long term stability@25℃ Zero@25℃:＜0.25 FSO (no time accumulation)
Cycle life 5 million pressure cycles@2-5Hz, 0~full scale pressure~0, 15 ~35℃

Product Range
RS186A /RS183A
6.35mm Series
Product Model Working Pressure Range Product thickness H Overload Pressure Burst Pressure
HXL-RS186A005C 0-5 Bar 6.30 ± 0.05 mm ＞ 20 Bar ＞ 40 Bar
HXL-RS186A010C 0-10 Bar 6.30 ± 0.05 mm ＞ 30 Bar ＞ 50 Bar
HXL-RS186A016C 0-16 Bar 6.35 ± 0.05 mm ＞ 48 Bar ＞ 80 Bar
HXL-RS186A020C 0-20 Bar 6.35 ± 0.05 mm ＞60 Bar ＞ 100 Bar
HXL-RS186A025C 0-25 Bar 6.45 ± 0.05 mm ＞ 75 Bar ＞ 125 Bar
HXL-RS186A035C 0-35 Bar 6.45 ± 0.05 mm ＞ 100 Bar ＞ 150 Bar
HXL-RS186A050C 0-50 Bar 6.55 ± 0.05 mm ＞150 Bar ＞ 250 Bar
HXL-RS186A070C 0-70 Bar 6.65 ± 0.05mm ＞200 Bar ＞ 300 Bar
HXL-RS186A100C 0-100 Bar 6.78±0.05mm ＞ 250 Bar ＞ 400 Bar
HXL-RS186A200C 0-200 Bar 6.95 ±0.05mm ＞ 400 Bar ＞600 Bar
3.50mm Series
Product Model Working Pressure Range Product thickness H Overload Pressure (Bar) Burst Pressure
HXL-RS183A005C 0-5 Bar 3.30 ± 0.05 mm ＞ 20 Bar ＞ 40 Bar
HXL-RS183A010C 01-10Bar 3.30 ± 0.05 mm ＞ 30 Bar ＞ 50 Bar
HXL-RS183A016C 0-16 Bar 3.35 ± 0.05 mm ＞48 Bar ＞ 80 Bar
HXL-RS183A020C 0-20 Bar 3.35 ±0.05 mm ＞60 Bar ＞ 100 Bar
HXL-RS183A025C 0-25 Bar 3.45±0.05 mm ＞ 75 Bar ＞125 Bar
HXL-RS183A035C 0-35 Bar 3.45±0.05 mm ＞ 100 Bar ＞ 150Bar
HXL-RS183A050C 0-50 Bar 3.55± 0.05mm ＞ 150 Bar ＞ 250 Bar
HXL-RS183A070C 0-70 Bar 3.65 ± 0.05mm ＞ 200 Bar ＞ 300 Bar
HXL-RS183A100C 0-100 Bar 3.78 ± 0.05mm ＞ 250 Bar ＞ 400 Bar
