Specifications
Brand Name :
Okai Intelligent Technology Co., Ltd.
Model Number :
OK-LX- 250
Certification :
ISO 9001
Place of Origin :
Mainland China
MOQ :
MOQ：1 SET
Price :
open to negotiation
Payment Terms :
T/T
Supply Ability :
1000 SETS / MONTH
Delivery Time :
5-8 work days
Packaging Details :
Wooden case with foam protection, suitable for sea/air freight
Model :
250L Type Magazine Loader
Conveying Direction :
Left to Right, Compatible with mainstream SMT production lines
Applicable PCB Width :
50mm-250mm
Max. PCB Length :
350mm
Magazine Dimension :
355×320×563mm
Standard Conveying Height :
900±50mm (Adjustable, suitable for various docking equipment)
Overall Machine Dimension :
1000×1000×1680mm
Description

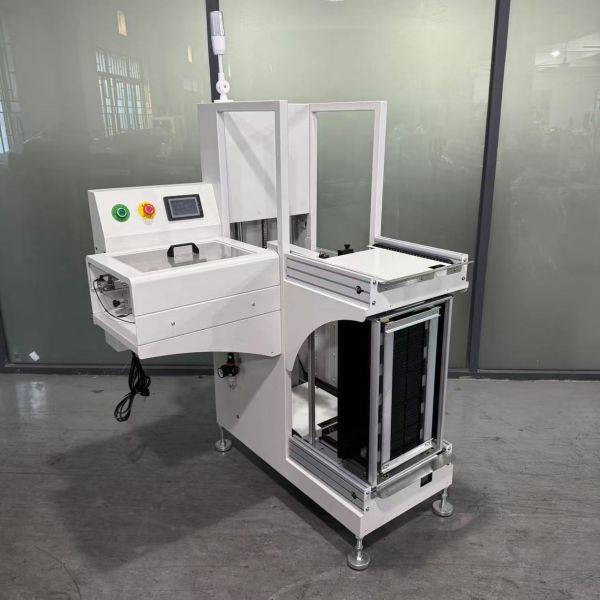

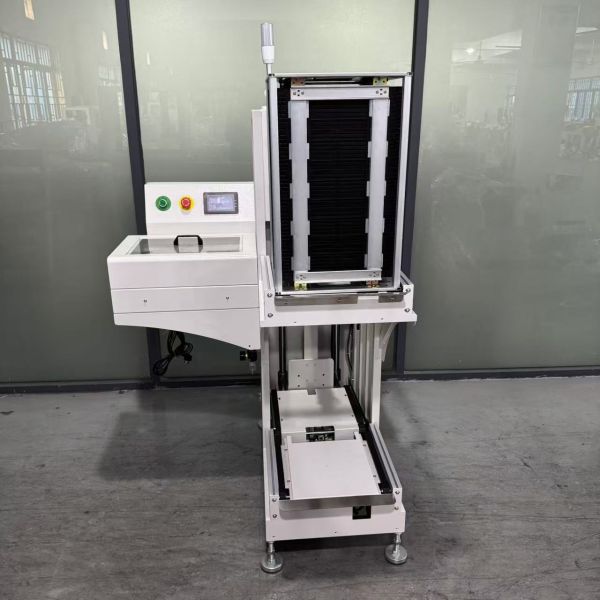

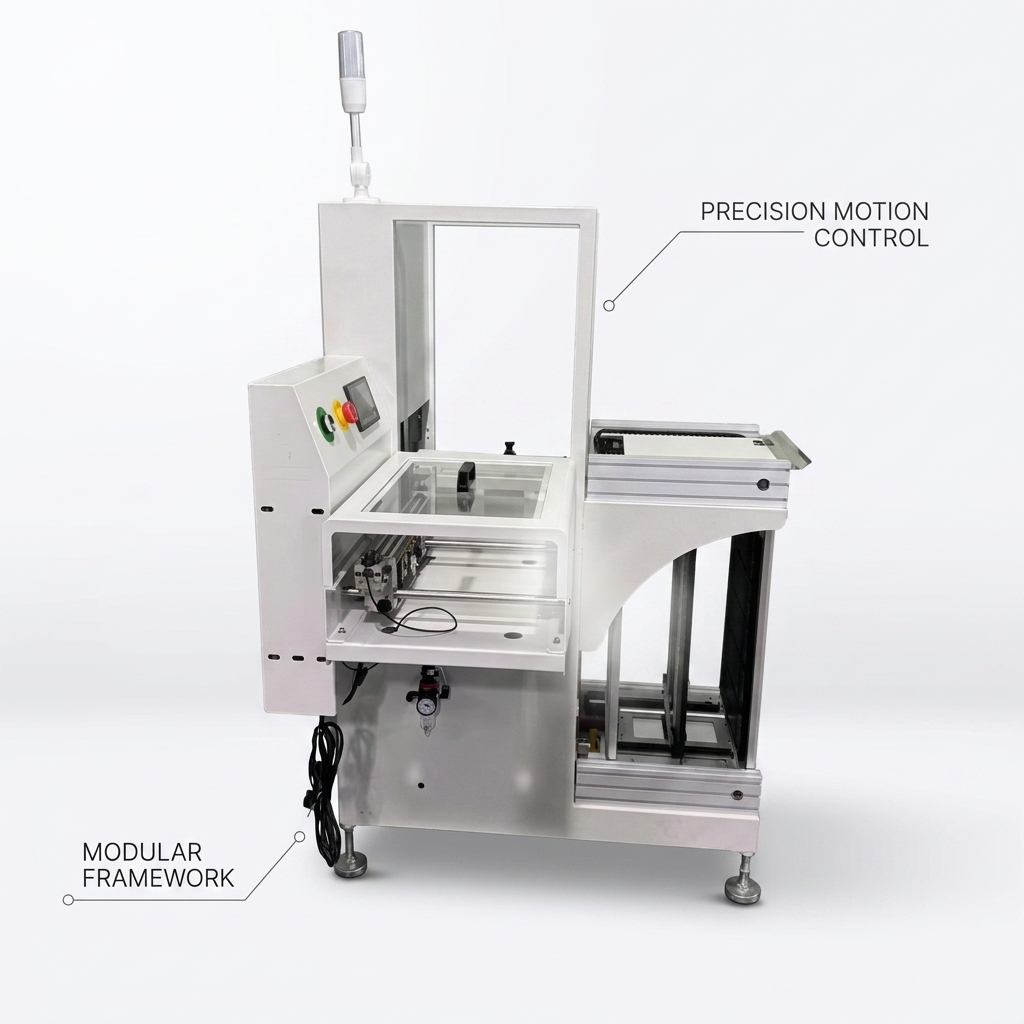

250L Frame-Type Board Loading Machine

Equipment Overview: The 250L frame-type fully automatic board loading machine is tailor-made for SMT production lines. It is compatible with loading various PCB board sizes, operates stably and smoothly, and boasts a high degree of automation. It effectively replaces manual loading, significantly improving production line efficiency and saving labor costs.

Core Specifications

Equipment Model: 250L Type Material Frame Loading Machine
Conveying Direction: Standard left-to-right flow, suitable for mainstream SMT production line layouts
Applicable PCB Width: 50mm-250mm
Applicable PCB Maximum Length: 350mm
Material Frame Dimensions: 355*320*563mm
Standard Conveying Height: 900±50mm, supports height fine-tuning, compatible with various connection devices
Overall Dimensions: 1000*1000*1680mm, compact footprint, flexible workshop placement

Key Selling Points

1. Wide Compatibility: Adapts to 50-250mm wide PCBs, strong versatility

2. Small Footprint: Compact design, does not occupy extra workshop space

3. Easy Connection: 900mm standard connection height, easily connects to upstream and downstream equipment

4. Stable Operation: Automatic material frame loading, smooth board feeding without jamming

5. High Cost-Effectiveness: Automated loading, cost reduction and efficiency improvement, suitable for small and medium-sized SMT production lines

Parameter Item
Detailed Specification
Model
250L Type Magazine Loader
Conveying Direction
Left to Right, Compatible with mainstream SMT production lines
Applicable PCB Width
50mm-250mm
Max. PCB Length
350mm
Magazine Dimension
355×320×563mm
Standard Conveying Height
900±50mm (Adjustable, suitable for various docking equipment)
Overall Machine Dimension
1000×1000×1680mm
