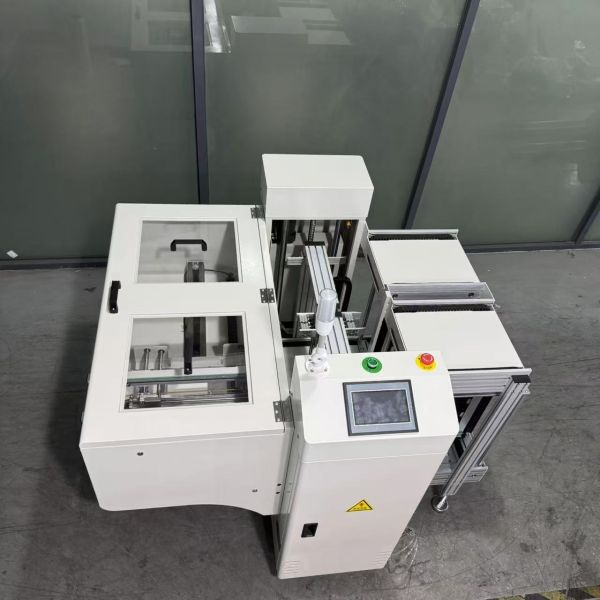

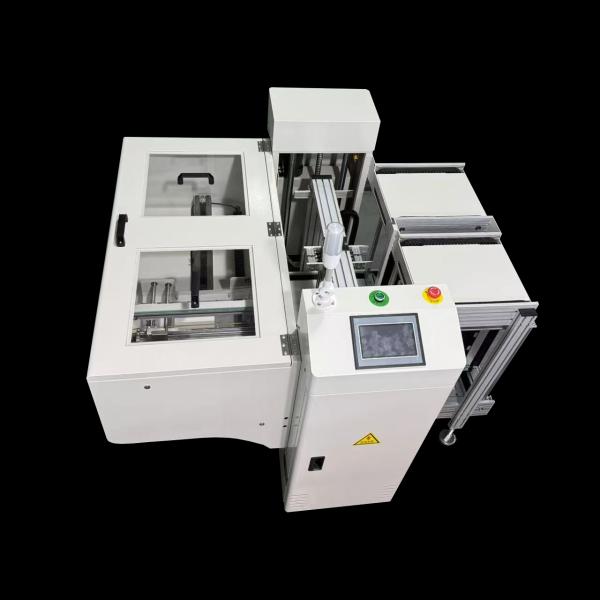

OK-NGOK Series SMT Single Rail NGOK Unloader
Core Selling Points
Automatic OK/NG Sorting: Automatically separate qualified and unqualified PCBs based on AOI/ICT/X-Ray signals, improve production efficiency and product quality
4 Models for Wide Compatibility: Cover PCB width from 50-250mm to 50-460mm, meet different production needs
Stable & Intelligent Control: PLC control system, touch screen operation, multiple alarm functions for safe production
Space-Saving Single Rail Design: Compact structure, suitable for various SMT production lines
Standard SMEMA Interface: Compatible with full SMT line equipment, easy to integrate
Fast Magazine Change: Only ~20s magazine change time, 1 working + 1 waiting magazine for continuous production
Model Specifications
Model , Max PCB Width , Max PCB Length , Magazine Size (LWH) , Machine Size (LWH)

OK-NGOK-250 ,50-250mm ,350mm ,355*320*563mm ,1550*850*1300mm

OK-NGOK-330 ,50-330mm ,450mm ,460*400*563mm ,1850*850*1300mm

OK-NGOK-390 ,50-390mm ,500mm ,535*460*570mm ,2100*955*1300mm

OK-NGOK-460 ,50-460mm ,530mm ,535*530*570mm ,2100*955*1300mm

Detailed Technical Parameters (OK-NGOK-250 as example)
Machine Size: 1500*1500*1300mm (LWH)
Conveyor Height: 900±30mm
Applicable Magazine Size: 355*320*563mm
Max PCB Width: 50-250mm, Max PCB Length: 350mm
Power Supply: 220V/0.35KW
Conveyor Direction: Right-Left / Left-Right Optional
Magazine Change Time: ~20s
Magazine Quantity: 1 working magazine, 1 waiting magazine
Air Pressure: 4-6bar
Machine Weight: 330kg
Rail Type: Single rail
Application Scenarios
SMT Production Line: Installed after AOI (Automatic Optical Inspection) machine, automatically sort OK/NG PCBs according to detection signals, realize automatic separation of good and defective products
Electronic Manufacturing Factories: Suitable for PCB automatic receiving and sorting in various production links, such as multi-layer PCB production, flexible circuit board production
Cooperate with Other Testing Equipment: Can be used with X-Ray inspection equipment, ICT (In-Circuit Tester) and other testing equipment, automatically collect and sort PCBs after testing
Why Choose Our NGOK Unloader?
Our OK-NGOK series SMT single rail NGOK unloader is a high-efficiency, stable and reliable solution for SMT production. With automatic OK/NG sorting, wide PCB compatibility and intelligent control system, it can effectively reduce labor costs, improve production efficiency and product quality. We provide customized solutions and perfect after-sales service, welcome to contact us for more details!
