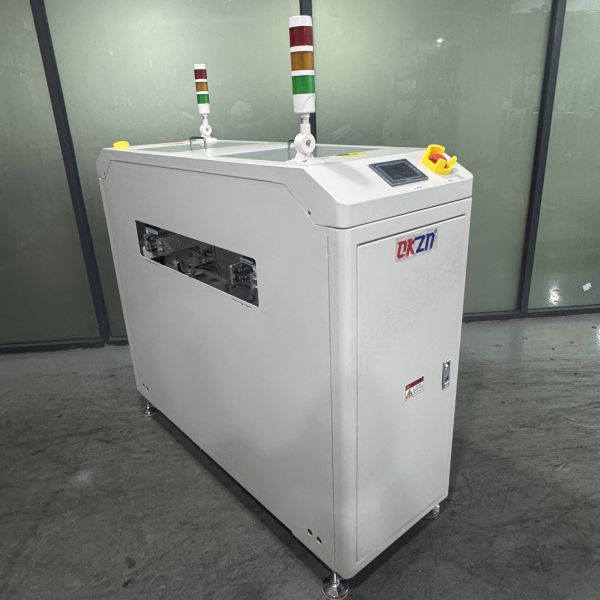

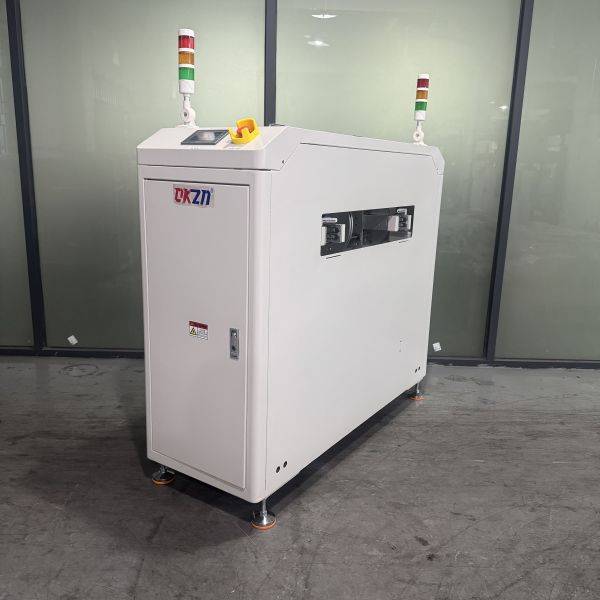

# SMT Dual Rail PCB Flipper Machine
Optimize your double-sided PCB production with our **SMT Dual Rail PCB Flipper Machine** — a robust, automated solution designed for safe, precise 90°/180° PCB flipping in modern SMT lines.

## Core Advantages & Key Features
✅ **Premium Safety & Durability**: Closed sheet metal + aluminum alloy structure delivers the highest safety protection, ensuring long-term stability and operator safety.

✅ **Precision Drive System**: Powered by stepper motors driving ball screws, the Magazine mechanism achieves smooth, accurate step lifting for reliable PCB handling.

✅ **Stable PLC Control**: Industrial-grade PLC system guarantees consistent, reliable operation, minimizing downtime and ensuring production continuity.

✅ **Intuitive Touchscreen Interface**: User-friendly touchscreen control with automatic fault diagnosis simplifies operation, reduces training costs, and enables quick troubleshooting.

✅ **Dual Flipping Modes**: Supports both 90° and 180° PCB flipping, perfectly adapting to diverse production needs from double-sided assembly to testing and rework.

✅ **Adjustable & Stable Design**: Hand-cranked lead screw adjustment ensures stable, balanced width settings, accommodating various PCB sizes and thicknesses.

✅ **Smart Alarm System**: Comprehensive audible, visual, and on-screen alarm prompts keep operators informed of abnormalities in real time.

✅ **Industry Standard Connectivity**: Equipped with a standard SMEMA communication interface for seamless integration into existing SMT production lines.

## Application Scenarios
1. **Post-Insertion Flipping**: Flips PCBs after through-hole component insertion to enable SMT component mounting on the opposite side, supporting full double-sided assembly.
2. **Pre-Testing Flipping**: Rotates PCBs 180° to allow test probes access to the bottom side, ensuring complete electrical and functional testing of all components.
3. **Rework Flipping**: Quickly flips faulty PCBs to expose the backside, enabling efficient component removal, repair, and replacement during rework processes.
4. **Post-Dispensing Flipping**: Flips PCBs after adhesive dispensing to allow natural curing, preventing glue flow and ensuring optimal bonding results.

## Why Choose Our Dual Rail Flipper?
Our dual rail design doubles throughput compared to single-rail models, while precision stepper motor control ensures damage-free flipping. Backed by robust safety features, intuitive operation, and industry-standard SMEMA compatibility, this machine is the essential choice to streamline your double-sided PCB production, improve quality, and boost overall efficiency.
