Inverter DC Link Circuit Capacitor 0.68uf 800v C52 Series For Energy Storage
Inverter DC Link Circuit Capacitor 0.68uf 800v C52 Series For Energy Storage
Inverter DC Link Circuit Capacitor 0.68uf 800v C52 Series For Energy Storage
Inverter DC Link Circuit Capacitor 0.68uf 800v C52 Series For Energy Storage
Specifications
Brand Name :
GDHY
Model Number :
C52 0.68UF 800V
Certification :
ISO,SGS
Place of Origin :
GUANGZHOU, CHINA
MOQ :
200PCS
Price :
PLEASE CONTACT US FOR DETAILS
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
MORE THAN 1KPCS/MONTH
Delivery Time :
15 WORKING DAYS
Packaging Details :
PLASTIC BAG
Brand :
GDHY
Type :
DC-LINK Capacitor
Model code :
C52801684JX08-01
Capacity :
0.68uF
Voltage :
800VDC
Material :
Polypropylnen Film Dielectric
Leads :
Tinned copper wire
Place of Original :
China
Coating :
Plastic shell encapsulation
Application :
Inverter Power Supplies, Electric Vehicles
Packing & delivery :
Plastic bag, by sea/air
Description

LONGER LIFE C52 0.68uF 800V DC-LINK CAPACITORS (SAME AS TDK DC LINK 85SERIES B32774M) FREQUENCY CONVERTERS

Technical Parameter

Reference Standards GB/T 17702 IEC 61071
Operating Temperature Range -40℃~70℃ Tmax 105℃
Capacitance 0.68μF
Rated Voltage 800V
Capacity Tolerance ±5%(J)
Dissipation Factor tgδ≤1.5X 10-3 ( at25℃±5℃, 100Hz)
Insulation Resistance C•R≥5000S (at100VDC,at25℃±5℃,1Min)
Flame retardation UL94V-0
Life Expectancy 100000h at UN and ≤70℃

Datasheet download:C52.pdf

Application

● Widely used in DC-Link Circuits for Energy Storage; In electric vehicle applications, the DC link capacitor is used as a load-balacing energy storage device.

● Ups, Frequency converters, Industrial and high-end power supplies, Welder Power Supplies, etc.

Feature

● Polypropylene film dielectric

● Flame retardant epoxy resin coating, plastic shell.

● Tinned copper wire

● High pulse current and high dv/dt; low ESL/ESR;

● Easy installation

● Can replace electrolytic capacitors

● Better performance and longer life

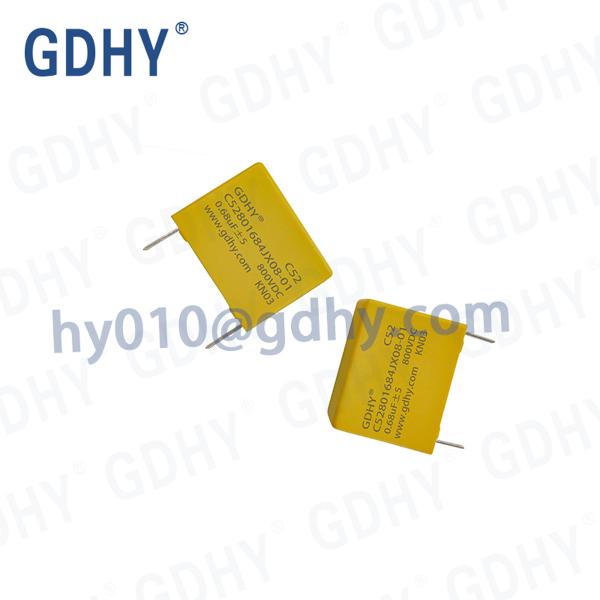

Product Picture

Inverter DC Link Circuit Capacitor 0.68uf 800v C52 Series For Energy Storage

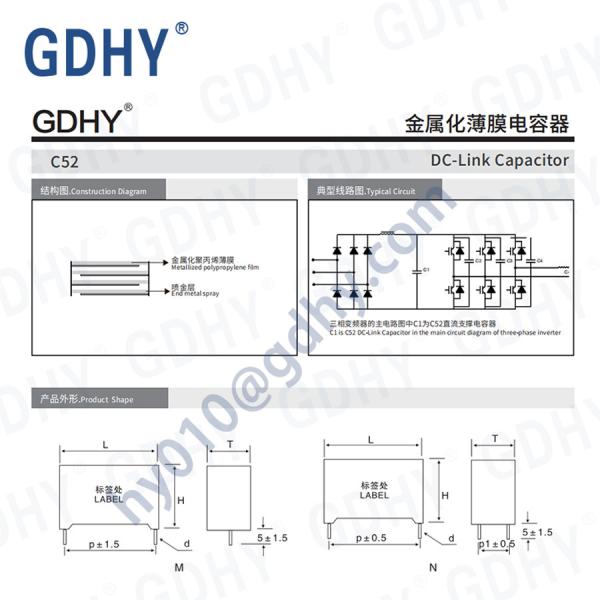

Production Shape

Inverter DC Link Circuit Capacitor 0.68uf 800v C52 Series For Energy Storage

Production Process

Inverter DC Link Circuit Capacitor 0.68uf 800v C52 Series For Energy Storage

Workshop& Equipment

Inverter DC Link Circuit Capacitor 0.68uf 800v C52 Series For Energy Storage

Company Exhibition

Inverter DC Link Circuit Capacitor 0.68uf 800v C52 Series For Energy Storage

Certification

Inverter DC Link Circuit Capacitor 0.68uf 800v C52 Series For Energy Storage

Packing Method

Inverter DC Link Circuit Capacitor 0.68uf 800v C52 Series For Energy Storage
