Reagent Automatic Filling And Capping Machine 60~80pcs/min
Reagent Automatic Filling And Capping Machine 60~80pcs/min
Reagent Automatic Filling And Capping Machine 60~80pcs/min
Reagent Automatic Filling And Capping Machine 60~80pcs/min
Reagent Automatic Filling And Capping Machine 60~80pcs/min
Reagent Automatic Filling And Capping Machine 60~80pcs/min
Reagent Automatic Filling And Capping Machine 60~80pcs/min
Reagent Automatic Filling And Capping Machine 60~80pcs/min
Specifications
After-sales Service Provided :
Service Machinery Overseas
Lead Time :
60-120days
Certification :
CE ISO90001
Place of Origin :
China
Price :
45000~50000$
KVA :
2.0KW
Brand Name :
Gereke
Packaging Details :
Wooden
Pneumatic :
5-6kgf/m2
Advantage :
High Efficiency Low Cost
Delivery Time :
90~150 days
Supply Ability :
10 PCS
Warranty :
1-year
MOQ :
1 set
Weight (KG) :
1200 KG
Speed :
60~80pcs/min
Payment Terms :
TT
Model Number :
Y800
voltage :
380 V, 220 V
Dimensions :
2000*2000*1800 mm
Description
Products Description

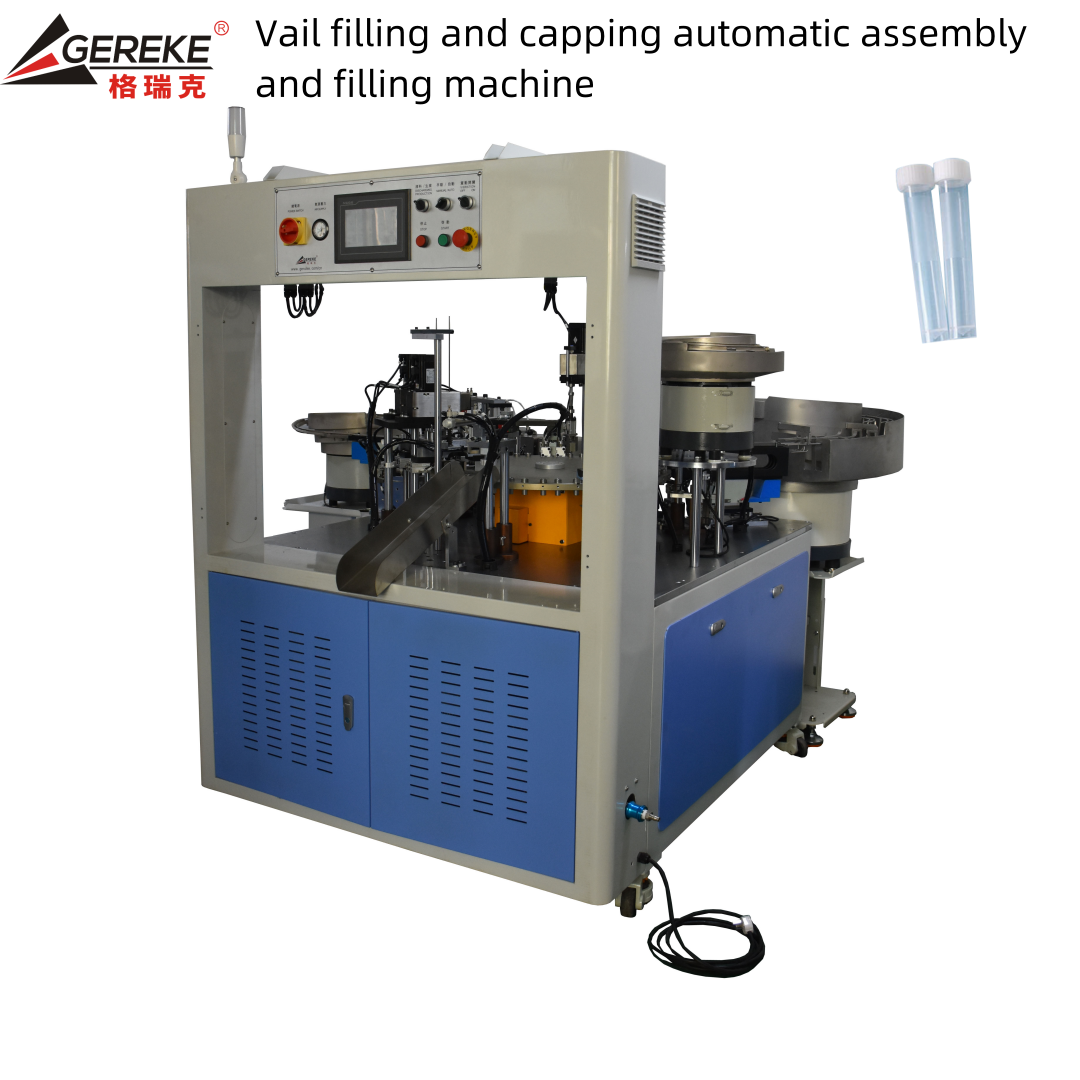

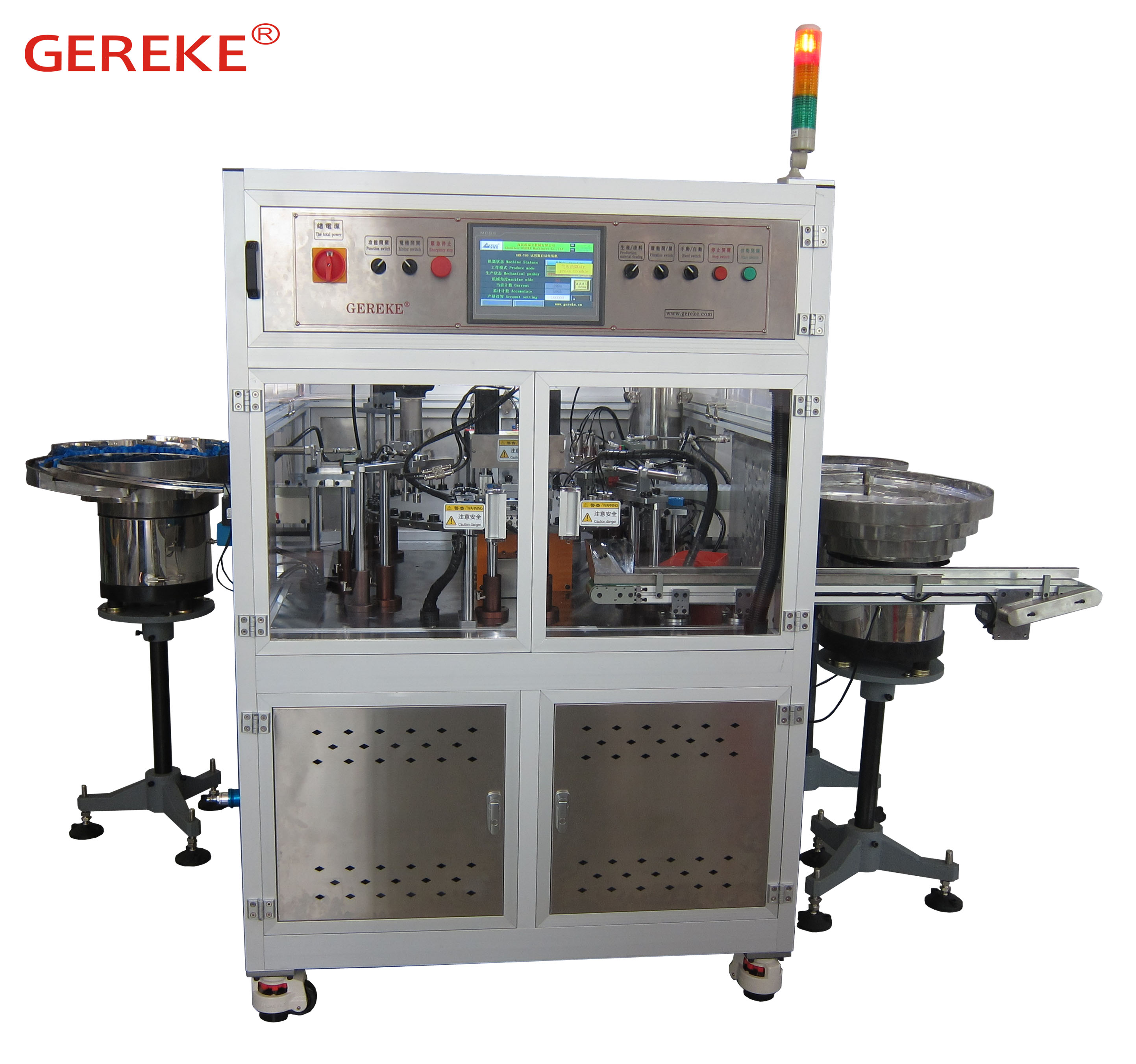

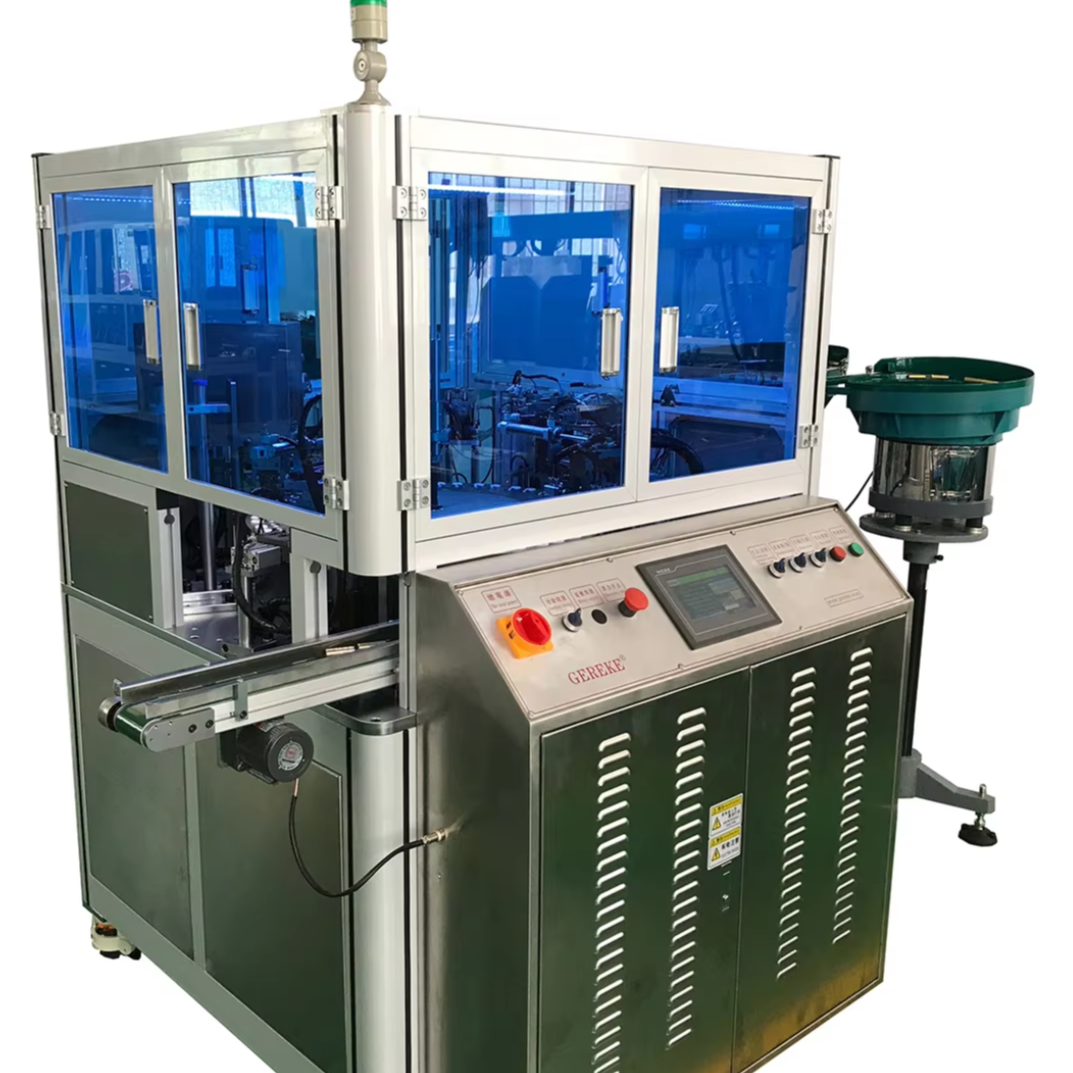

Reagent Automatic Assembly And Filling Machine Y800

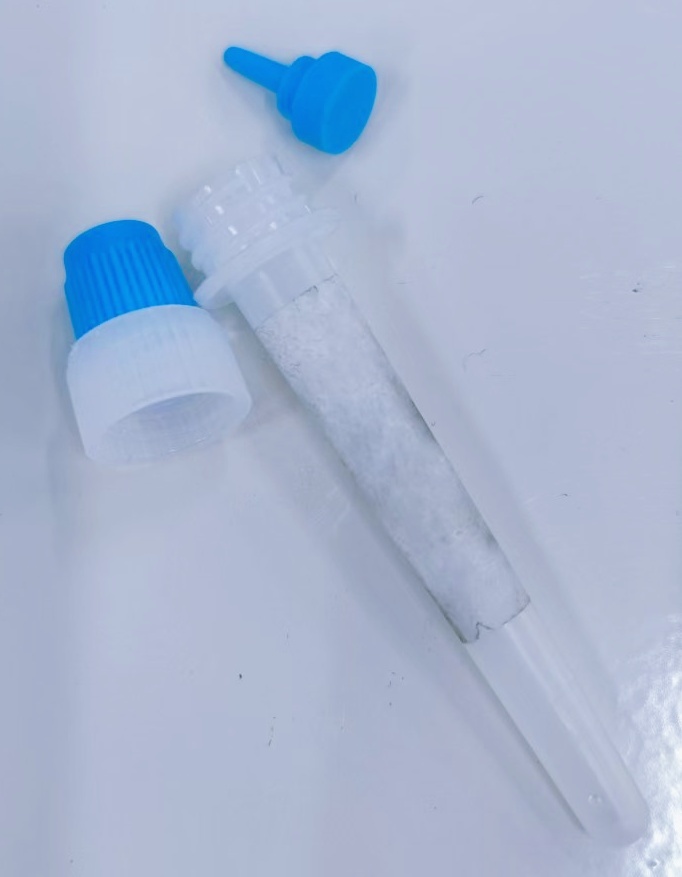

the assembly will auto feeding the shell, reagent, cap, and automatic through detect the exist and the shell direction, then automatic assembly together.

Reagent Automatic Filling And Capping Machine 60~80pcs/min
Manufacturing Technique

1,house feeding ->2 house check->3 Oil filling->4 reagent filling and check->5 cap feeding and check-> cap pressure ->14 defect part ejection ->15 Discharge for the good production

Product Paramenters
Voltage
380VAC /50HZ,15A
Power
1500W
Dimension
2000*2000*1800 mm
Weight
2200kg
Air Pressure
0.5~0.8MPa
Operating Speed
60-65 pcs/min
Frequency
50hz
Reagent Automatic Filling And Capping Machine 60~80pcs/min
Q: I am interested in your product, can you supply.
A: Yes, We are a professional manufacturer and exporter that is concerned with the design, development and production of different special filling machine, assembly machine , packing machine and so on.
Writing instrument pen: Marker pen/ball pen/Gel pen/ball pen refill/Gel pen refill/Sketch pen/watercolor pen/Paint pen/Retractable ball point/Highlighter pen/Fluorescent pen/
Medical parts :lateral flow test kit/strip cutting machine/cassette kit/blood lancet/Safety pressure activated lancet/Sprayer pump/Nasal sprayer pump/Mist sprayer pump/Lotion sprayer pump
Cosmetic parts :lip stick tube assembly machine/eyeliner pen/eye brow pen /Lotion sprayer pump
Q: What do I need to provide documents?
A: 1.The material of your product 2.The size of your product and the pattern. 3.The shape of your product.
Q: What is the lead time ?
A: 45~90 days after receiving the advance payment and samples
Q: How do you shipment the product?
A: By sea, by air, by express.
Q:Do you have the CE certification ?
A:Yes ,we have the CE certification .
Q:What document will you provide ?
A: Installation manuals/ Maintenance manuals/Electrical schematics diagram
-For medical machine we will provide IQ, OQ
- Spare part list
Q:What is the material of your machine ?
A:The most parts are 45# steels ,as for the part which touch with the product is stainless steel S304.
Q:. what services can we provide?
A: Accepted Delivery Terms: FOB;
Accepted Payment Currency: USD,EUR,HKD;
Accepted Payment Type: T/T, Cash;
Language Spoken: English, Chinese
