1535nm Class 1 Eyesafe Laser Rangefinder Module Max 8km Compact 145g OEM Custom Interface LRF-8
1535nm Class 1 Eyesafe Laser Rangefinder Module Max 8km Compact 145g OEM Custom Interface LRF-8
Specifications
Model Number :
LRF-8
MOQ :
1 Piece
Payment Terms :
T/T
Price :
Contact Us
Certification :
CE; ISO
Brand Name :
Gatherstar (Leading)
Place of Origin :
China
Description
1. Introduction

LRF-8 is a bare laser rangefinder module adopting Class 1 eye-safe 1535nm laser. It features small size, light weight, low power consumption and long service life, supporting easy embedded integration into various systems. Matching PC control software and complete communication protocols are provided for handheld devices, UAV pods and surveillance systems.

2. Product Features
  1. Single-shot ranging & continuous ranging modes
  2. Multi-target detection with front/back target marking, up to 5 identifiable targets
  3. Built-in self-test function and wake-up trigger function
  4. Long service life: MNBF emitted pulses ≥1×10⁶ times

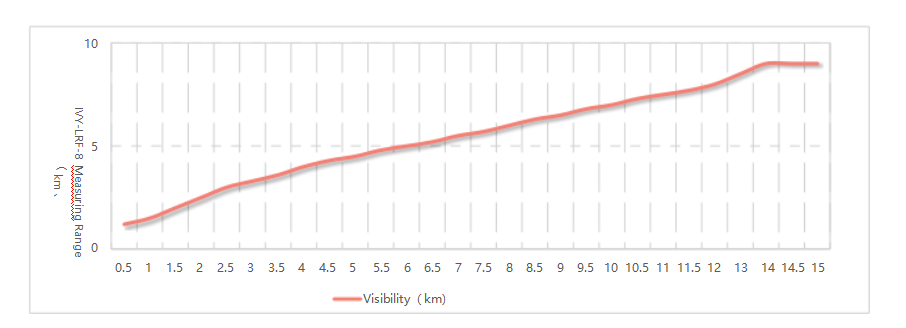

3. Performance Curve

1535nm Class 1 Eyesafe Laser Rangefinder Module Max 8km Compact 145g OEM Custom Interface LRF-8

4. Technical Specifications
Parameters Unit Comments
Safety Class - Class 1 Eye safe
Wavelength nm 1535±5 —
Max Measuring Range m ≥8000 Target of 2.3mx2.3m, visibility of 12km, humidity of <50%
Min Measuring Range m ≤50 —
Range Accuracy m ±2 Affected by weather conditions and target reflectivity
Measuring Rate Hz 0.5-10 —
Multiple Targets - 5 —
Precision % ≥98% —
False Alarm Rate % ≤1% Probability of occurrence of noise
Dimensions mm 62x42x86 LxWxH
Weight g ≤145 —
Data Interface - molex-532610771 Other interfaces can be customized
Power Supply V 12 —
Peak Power Consumption W 3 Max power consumption when start up
Standby Power Consumption W 1.2 Function to be shut down by external signal can be customized
Vibration - 5Hz, 2.5g —
Shock - Axial 100g, 1ms Can be increased based on user’s application scenarios
Operation Temperature ℃ -40 +65 —
Storage Temperature ℃ -55 +70 —
5. Applications

Handheld ranging equipment, UAV payload, electro-optical pod, border monitoring & reconnaissance, surveying and mapping

6. Dimensions

1535nm Class 1 Eyesafe Laser Rangefinder Module Max 8km Compact 145g OEM Custom Interface LRF-8

1535nm Class 1 Eyesafe Laser Rangefinder Module Max 8km Compact 145g OEM Custom Interface LRF-8 1535nm Class 1 Eyesafe Laser Rangefinder Module Max 8km Compact 145g OEM Custom Interface LRF-8

7. FAQs

Q1: Is this laser module safe for human eyes?

A: Yes, it adopts Class 1 eye-safe 1535nm laser.

Q2: Does it support multi-target identification?

A: It can detect up to 5 targets and mark front/rear distance signals.

Q3: Can the interface and power-off function be customized?

A: Custom interfaces and external standby shutdown functions are available.

Q4: What harsh environments can the module adapt to?

A: Wide -40℃~+65℃ working temperature, with standard vibration and shock resistance performance.
