1024×1 12.5μm Uncooled Linear InGaAs Detector CDIP Package 22MHz Dual Output GS-LDA1024P12.5S-17-C
1024×1 12.5μm Uncooled Linear InGaAs Detector CDIP Package 22MHz Dual Output GS-LDA1024P12.5S-17-C
Specifications
Model Number :
GS-LDA1024P12.5S-17-C
MOQ :
1 Piece
Payment Terms :
T/T
Price :
Contact Us
Certification :
CE; ISO
Brand Name :
Gatherstar (Leading)
Place of Origin :
China
Description
1. Introduction

ILDA1024 is an uncooled near-infrared InGaAs line array detector. It adopts planar InGaAs PIN photodiode chip, with 1024*1 single row pixels and 12.5μm pixel size, covering 0.9–1.7μm short-wave infrared spectrum. Equipped with 28-pin CDIP ceramic encapsulation and built-in temperature sensor, it supports dual-channel high-speed signal output for spectrometers and industrial line scan inspection equipment integration.

2. Product Features
  1. Pixel layout: 1024*1, pixel size 12.5*12.5μm
  2. 28-pin CDIP ceramic packaging
  3. Internal integrated temperature sensor
  4. Spectral response: 0.9 μm ~ 1.7 μm
  5. Valid pixel ratio > 99%
  6. Quantum efficiency > 70%
  7. Dual-channel signal output, maximum readout frequency up to 22 MHz
3. Technical Specifications
Item Parameter
Model LDA1024P12.5S-17-C
Detector Type Planar InGaAs PIN Photodiode
Spectral Range 0.9 – 1.7 μm
Pixel Format 1024 * 1
Pixel Pitch 12.5 μm
Die Size 15.3 * 9.0 mm
Packaging 28-pin Ceramic Dual In-line Package (CDIP)
Package Dimension 35.56 * 15.61 * 7.15 mm
Weight 5.18 g
4. Applications
  • Short-wave infrared line scan imaging
  • Semiconductor surface defect inspection
  • Industrial waste & material sorting
  • Near-infrared spectrum analysis instruments

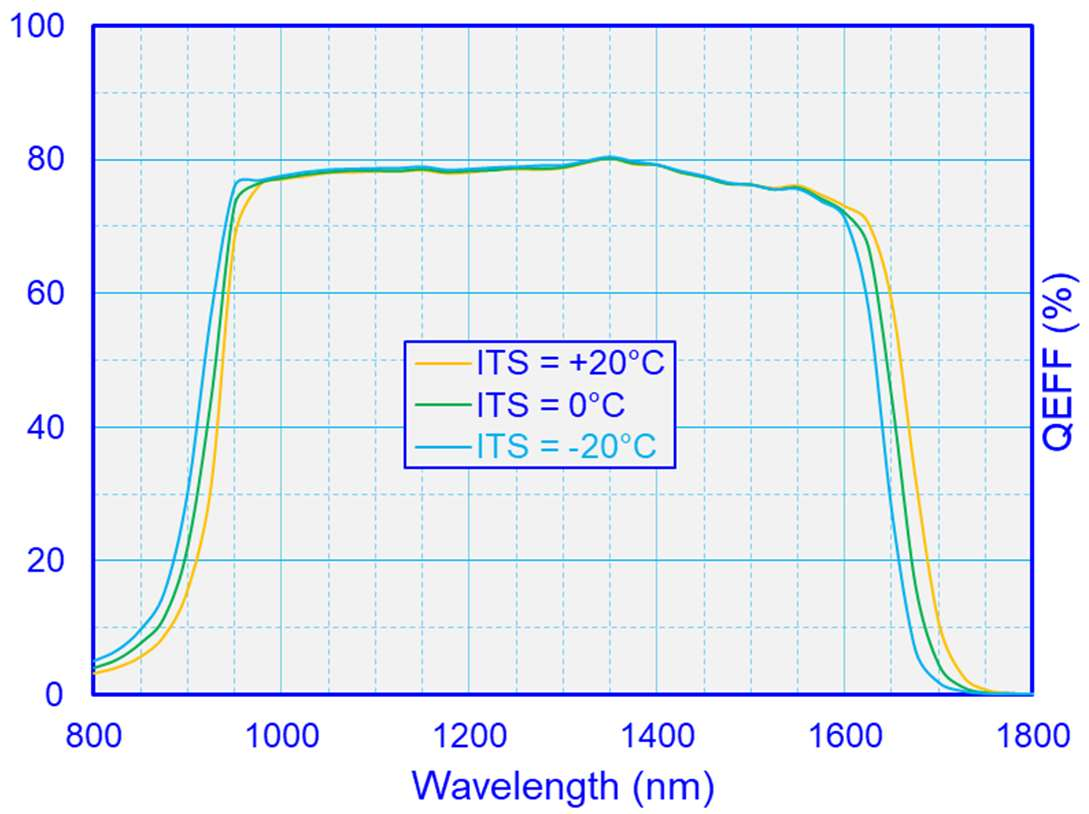

5. Quantum Efficiency

1024×1 12.5μm Uncooled Linear InGaAs Detector CDIP Package 22MHz Dual Output GS-LDA1024P12.5S-17-C

6. FAQs

Q1: Does this detector need cooling?

A: It is an uncooled InGaAs linear array detector, no cooling structure required.

Q2: What is the readout output mode?

A: Dual-channel output design, maximum working frequency reaches 22MHz.

Q3: What packaging form is adopted?

A: Standard 28-pin CDIP ceramic packaging, with built-in temperature detection sensor.
