Advanced 24V Brushless Garden Door Motor No Mechanical Limits, No Re-learning Adjustable Door Speed 7-15m/min Smartdoor Motor

Global Electronic Limit – Only One Travel Learning Cycle Required:

• When delivered from the factory with no travel data learned, the gate can only be moved via jog commands on the remote control or by pressing the left/right movement buttons on the main control board.

• After the travel limits are learned, even if a sudden power outage occurs or the gate is moved in manual mode, simply switch back to automatic mode after power is restored – no re-learning is needed. The motor will automatically stop at the originally learned limit positions.

Adjustable Motor Running Speed:

• The normal running speed of the gate can be adjusted (faster or slower) using the speed potentiometer.

Auto-Close Function:

• The auto-close delay time can be adjusted from 1 to 250 seconds according to usage requirements.

Soft Start & Soft Stop Function:

• The motor's slow speed can be adjusted via a potentiometer to set the running speed when entering slowdown mode.

• The motor's slowdown distance can be adjusted via a potentiometer to set the travel length when entering slowdown mode.

Obstacle Reversal Function:

• The gate will automatically reverse if hit or blocked during closing; it will also automatically rebound if hit or blocked during opening.

Rich External Interfaces:

• Compatible with add-on devices including warning lights, access control systems, solar panels, backup batteries, facial recognition devices, wall switches, and infrared anti-pinch safety beams.

One-Key Internet Gate Control Integration:

• This control board can directly pair with Internet controllers/cameras without any additional wiring or connected devices.

• 1 Product Introduction
  1.1 Part List
  * Expansion bolt x4* ,Sliding gate motor x1
  * Clutch key x1
  * Backup fuse x1
  * Remote control x2
  * Power lithium battery x1 (optional)

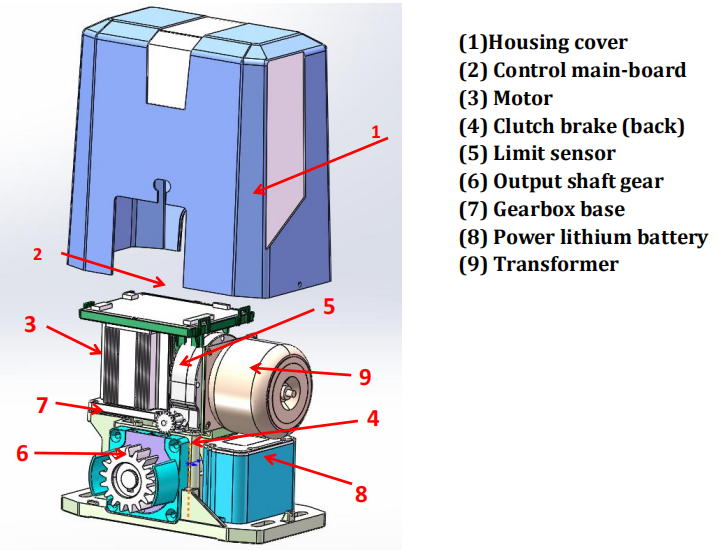

• 1.2 Structure of Motor
•
•
