DC 24V Brushless Sliding Gate Motor with Adjustable Speed and All-Round Electric Limit for 1000-2000kg Gates
DC 24V Brushless Sliding Gate Motor with Adjustable Speed and All-Round Electric Limit for 1000-2000kg Gates
DC 24V Brushless Sliding Gate Motor with Adjustable Speed and All-Round Electric Limit for 1000-2000kg Gates
DC 24V Brushless Sliding Gate Motor with Adjustable Speed and All-Round Electric Limit for 1000-2000kg Gates
DC 24V Brushless Sliding Gate Motor with Adjustable Speed and All-Round Electric Limit for 1000-2000kg Gates
DC 24V Brushless Sliding Gate Motor with Adjustable Speed and All-Round Electric Limit for 1000-2000kg Gates
DC 24V Brushless Sliding Gate Motor with Adjustable Speed and All-Round Electric Limit for 1000-2000kg Gates
DC 24V Brushless Sliding Gate Motor with Adjustable Speed and All-Round Electric Limit for 1000-2000kg Gates
Specifications
Model Number :
BLB1000
Certification :
CE
Place of Origin :
China
MOQ :
5
Price :
140-175USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union
Supply Ability :
10000pcs/month
Delivery Time :
2-8 work days
Packaging Details :
34*28*40cm
Model :
BLB-1000
Max travel limit :
1-10M
Input voltage :
AC220V±10%
Motherboard working voltage :
AC/DC 24V±10%
Limit System :
All-round Electric Limit
Fuse :
30A
Remote control range :
Open space：30-90 meters
Working temperature :
-30℃ ～ +70℃
speed :
7-15m/min
Description
DC 24V Brushless Sliding Gate Motor with Adjustable Speed All-Round Electric Limit for 1000-2000kg Gates
Advanced DC 24V brushless sliding gate motor featuring adjustable speed control and comprehensive electric limit functionality, designed for gates weighing 1000-2000kg.
Key Features
  • Adjustable Motor Speed Easily adjust the door's operating speed (7-15 m/min) via built-in speed potentiometer. Clockwise to increase speed, counterclockwise to decrease. Flexible control for different gate weights and application scenarios.
  • All-Round Electric Limit Single travel learning cycle - system remembers limit positions permanently. No re-learning required after power outage or manual door movement.
  • Soft Start & Soft Stop Smooth acceleration and deceleration with adjustable slowdown distance (10-80 cm) and speed. Reduces mechanical wear for long-term reliability.
  • Obstacle Reversal Protection Automatically detects obstructions during operation. Enhanced safety for people, vehicles, and property with intelligent reversal protocols.
  • Auto-Close Function Adjustable delay time from 1 to 250 seconds. Automatic closing after opening - ideal for residential and commercial applications.
  • Rich External Interfaces Compatible with infrared sensors, license plate recognition, access control systems, alarm lights, solar panels, backup batteries, and wall switches.
  • Low Voltage DC 24V Operation Safe low-voltage operation for personal safety during installation and maintenance. AC220V input with DC24V motherboard working voltage.
  • High Durability & Protection IP65 weatherproof rating, working temperature -30℃ to +70℃, noise level <53 dB, brushless motor for longer lifespan and lower maintenance.
  • Multiple Built-in Protections Motor overcurrent, overload, short circuit, motor fault, and reverse power connection protection for reliable operation.
  • Easy Installation & Debugging Clear wiring diagram, clutch release for manual operation, and simple remote control pairing. Suitable for residential, industrial, and commercial applications.
Technical Specifications
Parameter BLB-1000 BLB-1500 BLB-2000
Max Gate Weight 1000 kg 1500 kg 2000 kg
Max Travel Limit 1-10 m 1-10 m 1-10 m
Rated Power 200W 300W 400W
Speed 7-15 m/min (Adjustable) 7-15 m/min (Adjustable) 7-15 m/min (Adjustable)
Input Voltage AC220V±10% AC220V±10% AC220V±10%
Working Temp -30℃ ~ +70℃ -30℃ ~ +70℃ -30℃ ~ +70℃
Protection Class IP65 IP65 IP65
Noise <53 dB <53 dB <53 dB

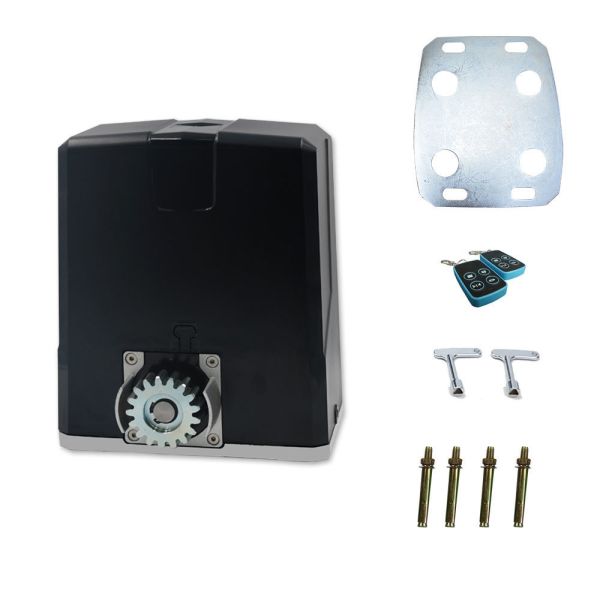

Included Components
  • Expansion bolt x4
  • Clutch key x1
  • Sliding gate motor x1
  • Backup fuse x1
  • Remote control x2
  • Power lithium battery x1 (optional)
Motor Structure
DC 24V Brushless Sliding Gate Motor with Adjustable Speed and All-Round Electric Limit for 1000-2000kg Gates
Machine Dimensions
DC 24V Brushless Sliding Gate Motor with Adjustable Speed and All-Round Electric Limit for 1000-2000kg Gates
