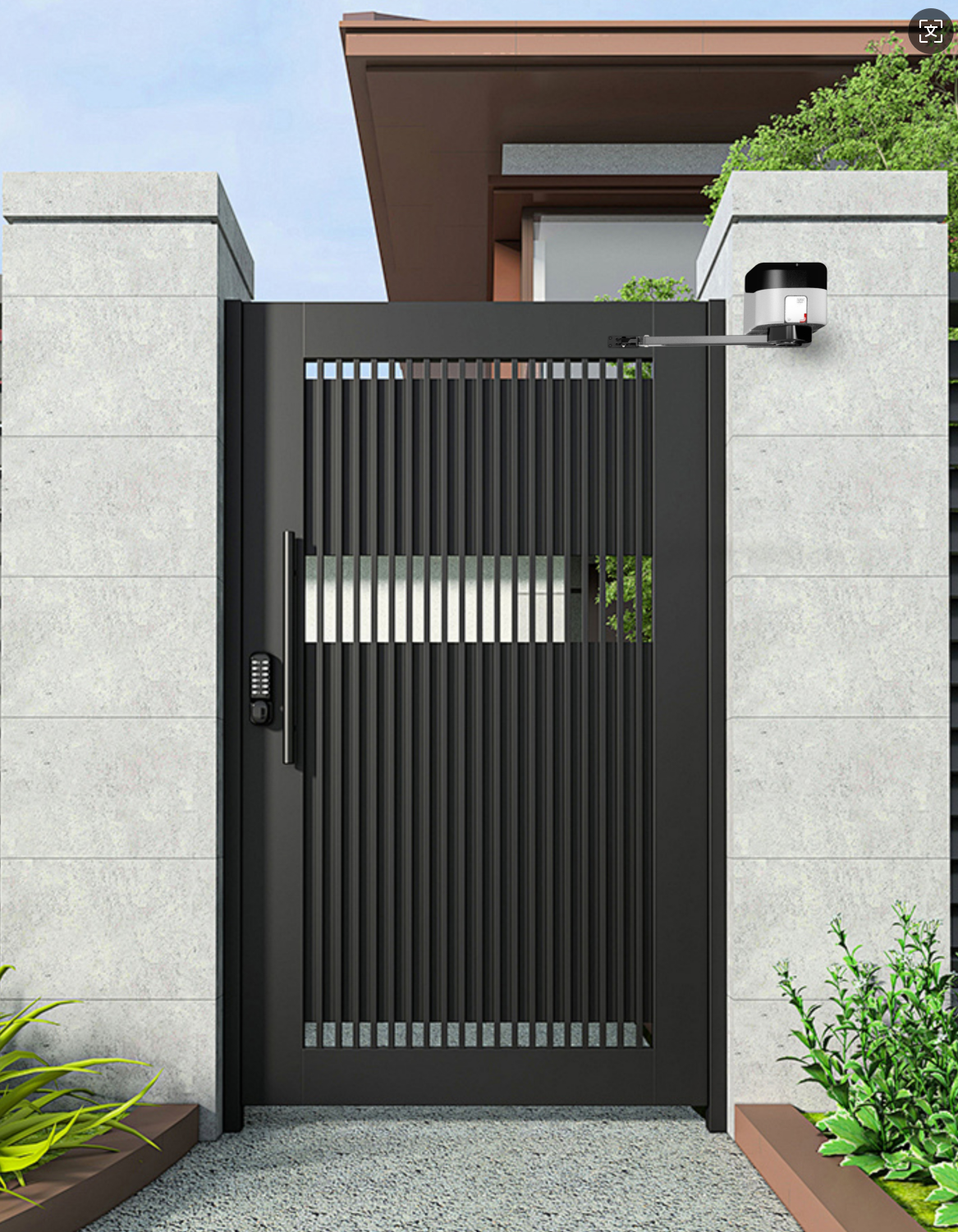

Waterproof Swing Door Opener Automatic Motion Sensor for Outdoor
Waterproof Swing Door Opener Automatic Motion Sensor for Outdoor
Waterproof Swing Door Opener Automatic Motion Sensor for Outdoor
Waterproof Swing Door Opener Automatic Motion Sensor for Outdoor
Waterproof Swing Door Opener Automatic Motion Sensor for Outdoor
Waterproof Swing Door Opener Automatic Motion Sensor for Outdoor
Specifications
Model Number :
H9
Certification :
CE ROHS
Place of Origin :
China
MOQ :
1
Price :
110-135USD
Payment Terms :
L/C,D/A,D/P,T/T
Supply Ability :
unlimited range
Delivery Time :
5-8days
Packaging Details :
47*28*25cm
Material :
Aluminum Aolly
Max. Gate Weight :
230kg
Power supply :
220V/AC 110V/AC 50/60Hz
Motor :
DC 24V Brushless Motor
Product Name :
Automatic Door Opener
Description
  • 1 H9 Outdoor Heavy duty Side Door Opener 24V DC power supply for outdoor personal safety protection
  • 2 Energy saving static power less than 1W maximum working power only 60W
  • 3 Independent adjustable opening and closing speed multi stage speed design for linear and stable operation
  • 4 Ultra quiet work noise lower than 50db no disturbance to daily life
  • 5 Support multiple signal input including relay signal and voltage signal flexible connection with other devices
  • 6 Multiple motor protection over current overload short circuit fault and reverse power connection protection
  • 7 Professional pedestrian protection obstacle rebound anti collision function support infrared human body induction input
  • 8 Wide door type compatibility fit single double and mother son doors meet various courtyard door installation needs
  • 9 485 communication support between two doors realize synchronous opening and closing of double doors
  • 10 High environmental adaptability working temperature from -35 to 85 IPX4 waterproof grade
  • 11 Rich parameter setting functions all working parameters can be customized according to actual needs
  • 12 Convenient remote control 430Mhz frequency support learning up to 60 remote controls for multi user use
  • 13 Compact and sturdy structure body size 215 161 180mm total weight about 8.5KG easy to install and fix
  • 14 Built in Bluetooth module support mobile phone intelligent debugging and operation via dedicated mini program
  • 15 Complete accessories package include 2 remote controls installation screws and arm kit for one stop installation
  • 16 Intuitive operation clear controller buttons and screen display easy parameter debugging and status checking
  • 17 Buzzer prompt function for all operations clear voice feedback for remote control learning and parameter setting
  • 18 Power off parameter memory function no need to reset parameters after power on again
  • 19 Multiple lock type compatibility support electromagnetic lock electric plug lock and mechanical lock
  • Product electrical parameters:
    Input voltage: 220V ± 10%, 50HZ Power supply: 160W
    Motor voltage: 24V Rated power of motor: 60W
    Static power of the device: ≈ 1W Motor speed: 1800RPM
    Reduction ratio: 210/1 Output torque: 78N · m
    Longitudinal kilogram force: 7.73KG · m Remote control frequency: 430MHz
    Bluetooth specification: BLE low-power Bluetooth Electric lock port output current: 1.2A [supports 2 280KG magnetic locks]
    Working temperature: -35 ℃ -85 ℃ Access control port output current: 0.8A [Face recognition device requires separate power supply]
    Operating humidity: 30% to 80% (no condensation) Remote control distance: ≈ 15M [interference free state]
    Door opening and closing speed: adjustable from 3-6S Traffic light voltage: 12V [positive]
    Waterproof rating: IPX4, waterproof and splash proof
    Product Specifications
    Specification parameters: 215 × 161 × 180mm Arm size: 350mm
    Axis distance from wall dimension: 145mm Outer dimension of shaft distance: 70mm
    Expansion screw hole spacing: 147 × 125mm Door leaf base size: 70 × 20mm
    Outer packaging size: 468 × 2746 × 247mm Total weight of the product: ± 8.5KG
    Accessories List:
    Door body of door opener: 1 set Arm bag: 1 set
    Screw package: 1 set Warranty card: 1 card
    Instruction manual: 1 copy Remote control: 2 pieces

    Waterproof Swing Door Opener Automatic Motion Sensor for Outdoor

    Waterproof Swing Door Opener Automatic Motion Sensor for Outdoor
