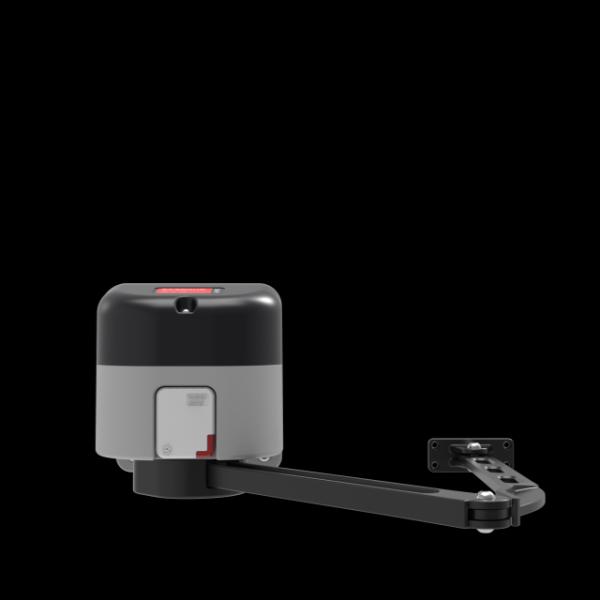

Automatic Gate Opener with DC24V Power, 90N.m Output Torque, and Aluminum Alloy Construction for Heavy-Duty Swing Gates
Automatic Gate Opener with DC24V Power, 90N.m Output Torque, and Aluminum Alloy Construction for Heavy-Duty Swing Gates
Automatic Gate Opener with DC24V Power, 90N.m Output Torque, and Aluminum Alloy Construction for Heavy-Duty Swing Gates
Automatic Gate Opener with DC24V Power, 90N.m Output Torque, and Aluminum Alloy Construction for Heavy-Duty Swing Gates
Automatic Gate Opener with DC24V Power, 90N.m Output Torque, and Aluminum Alloy Construction for Heavy-Duty Swing Gates
Automatic Gate Opener with DC24V Power, 90N.m Output Torque, and Aluminum Alloy Construction for Heavy-Duty Swing Gates
Automatic Gate Opener with DC24V Power, 90N.m Output Torque, and Aluminum Alloy Construction for Heavy-Duty Swing Gates
Automatic Gate Opener with DC24V Power, 90N.m Output Torque, and Aluminum Alloy Construction for Heavy-Duty Swing Gates
Automatic Gate Opener with DC24V Power, 90N.m Output Torque, and Aluminum Alloy Construction for Heavy-Duty Swing Gates
Automatic Gate Opener with DC24V Power, 90N.m Output Torque, and Aluminum Alloy Construction for Heavy-Duty Swing Gates
Specifications
Model Number :
H9
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
US $138
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
Unlimited
Delivery Time :
5-8 work days

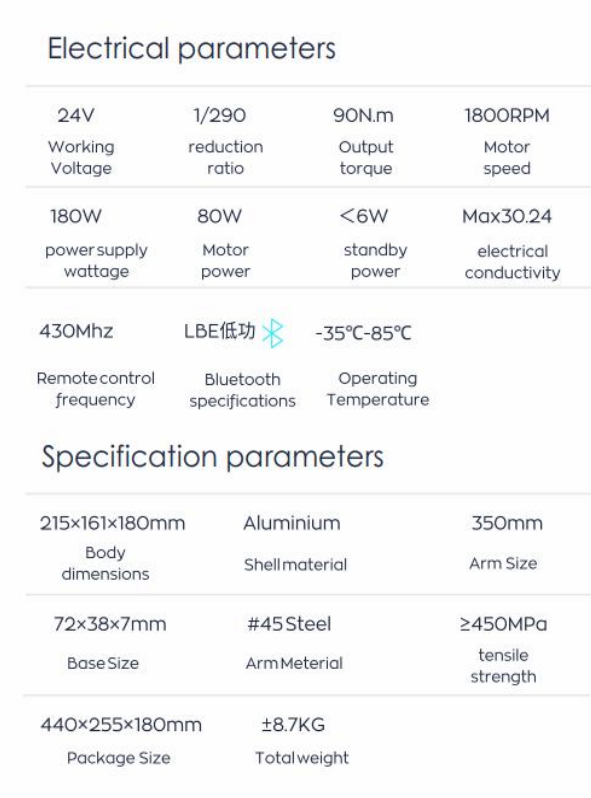

Operating voltage :
DC24V
Material :
Aluminum Alloy
Maximum Gate Speed :
1800RPM
Model :
H9
Warranty :
1 year
Output torque :
90N.m
Operating temperature :
-35℃~85℃
Power Source :
electric
Manual Keys :
2
Body Weight :
8.6KG
Body Size :
72x38x7mm
Description

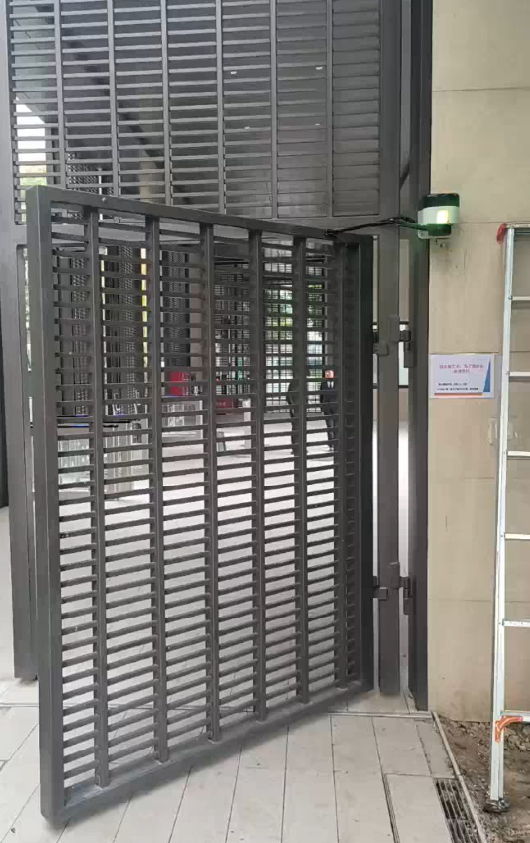

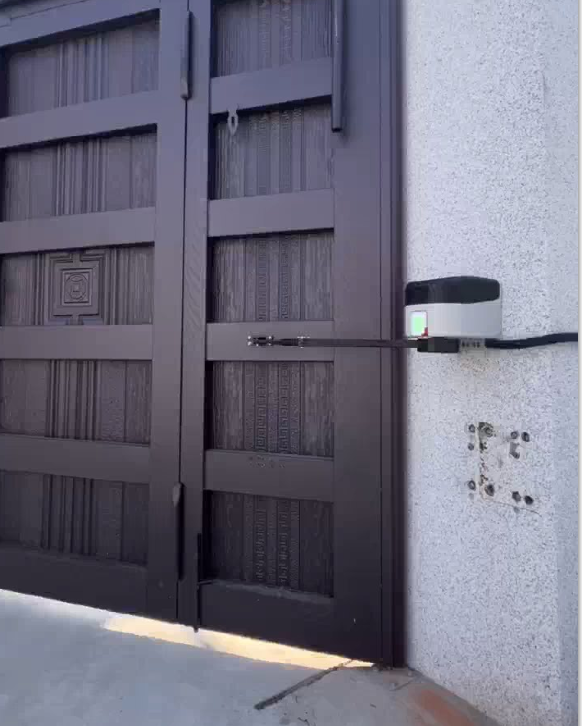

Automatic side-mounted heavy-duty courtyard door opener, villa swing door, community door.

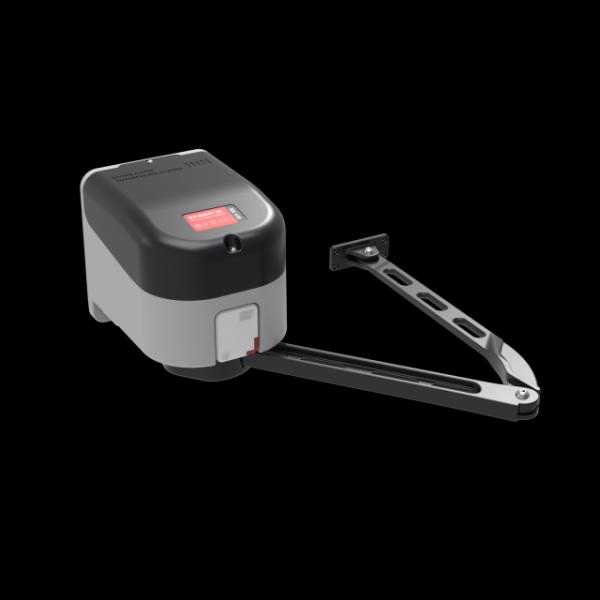

H9 adopts DC brushless motor, extended cast steel support arm, aluminum casting shell,more durable outdoor waterproofing, support straffic light warning, and achieves self-locking function in specific installation environments.Suitable for home doors, villa doors, heavy-dutydoor opening and closing places, outdoor waterproofing.

Product advantage:
  • Safety: Powered by 24V DC power supply, ensuring personal safety.
  • Energy Efficient: Standby power consumption is less than 1 watt, with a maximum operating power of 60W.
  • Adjustable Speed: Independent adjustment of opening and closing speeds.
  • Smooth Operation: Multi-stage speed design for linear and steady operation.
  • Quiet Operation: Operating noise below 50 dB.
  • Multiple Input Signals: Supports relay signals and voltage signals.
  • Multiple Protections: Includes motor over-current, overload, short-circuit protection, motor fault protection, and reverse polarity protection for the power supply.
  • Pedestrian Protection: Features obstruction detection/reversal and anti-collision functions.
  • Infrared Sensor Input: Compatible with PIR (Passive Infrared) sensors for pedestrian safety.
  • External Remote Control Input: Supports connection to external remote controls.
  • Customizable Parameters: Allows setting various parameters.
  • Door Type Compatibility: Suitable for single doors, double doors, and double doors with a smaller leaf (subsidiary doors).
  • Inter-door Communication: Supports RS-485 communication between two doors for synchronized opening and closing.
