Heavy Duty Industrial Gate Motor DC 36V With A Maximum Load Bearing Capacity Of 6000KG
Heavy Duty Industrial Gate Motor DC 36V With A Maximum Load Bearing Capacity Of 6000KG
Heavy Duty Industrial Gate Motor DC 36V With A Maximum Load Bearing Capacity Of 6000KG
Heavy Duty Industrial Gate Motor DC 36V With A Maximum Load Bearing Capacity Of 6000KG
Heavy Duty Industrial Gate Motor DC 36V With A Maximum Load Bearing Capacity Of 6000KG
Heavy Duty Industrial Gate Motor DC 36V With A Maximum Load Bearing Capacity Of 6000KG
Specifications
Model Number :
BG3500
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
380-880USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
Unlimited quantity
Delivery Time :
7
Packaging Details :
50X42X28 cm
Product Name :
Gate Operators
Warranty :
1 Year
Thickness :
Copper Wire
Power supply :
220V/AC 110V/AC 50/60Hz
Limit switch :
Magnetic/Spring Limit Switch
Remote Control :
2 Remotes Included
Certificate :
CE
Description
Heavy Duty Industrial Gate Motor DC 36V With A Maximum Load Bearing Capacity Of 6000KG
Function Description
Anti-overtravel. Every time the first power-on operation, the gate will be slow to the limit, to prevent inertia out of the limit. When the door reaches the travel limit, it can only press the button in the opposite direction, so that the motor can move to prevent it from rushing out ofthe limit. Ifthe limit magnet is damaged or fails out ofthe limit, it will automatically encounter resistance to protect the motor and control mainboard. Note: When the door is out ofthe limit,there is a power off protection function, and it can only move in the opposite direction after powering on. Co-op Mode Available. Two motors with the same type of control board on each can work synchronously. In this mode, infrared, loop, auto- close and other functions are synchronized. Motor running time protection. Avoid motor running for a long time in stroke failure. After the control mainboard learns the stroke, the longest running time of the motor will be increased for a period oftime on the basis ofthe stroke time to avoid the long running time of the motor. Automatic door closing function. The waiting time ofthe automatic door closing function can be adjusted according
to the needs ofthe use, in the range of 1 to 250 seconds. Soft start and soft stop function. The slow speed strength and slow speed distance of the motor can be adjusted by potentiometer. Adjust the speed and distance ofthe motor when it enters the slow speed. Resistance rebound function. When the gate is blocked, the gate can be switched in two ways: stop and rebound. The gate will stop immediately ifthe door is blocked. Bluetooth control module. Original on-board Bluetooth module slot design, suitable for independent Bluetooth module (optional). One-click matching Internet gating. The control mainboard can be directly matched to the Internet controller/camera without adding any wiring equipment.

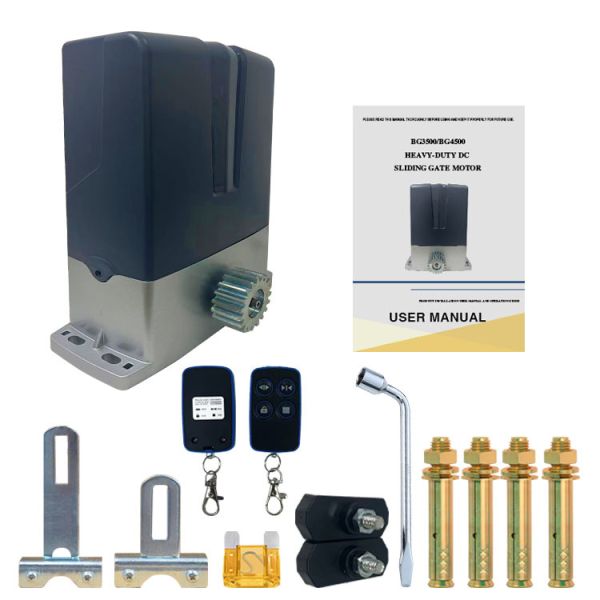

Product List

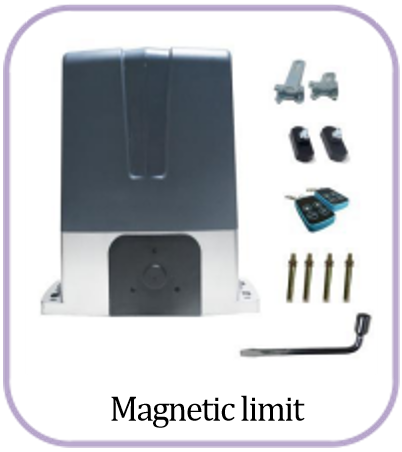

Heavy Duty Industrial Gate Motor DC 36V With A Maximum Load Bearing Capacity Of 6000KG

* Expansion bolt x4
* Sliding gate motor x1
* Remote control x2
* Limit magnet x2, Higher and lower limit support x2
* Clutch wrench x1
* Backup fuse x1

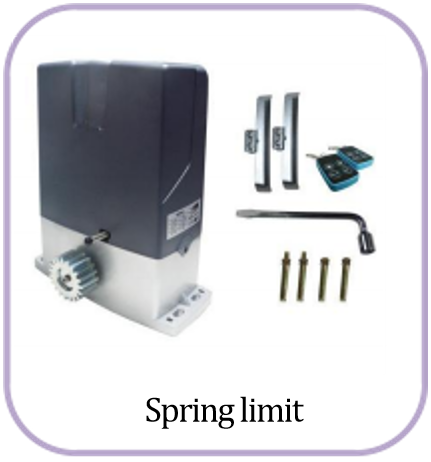

Heavy Duty Industrial Gate Motor DC 36V With A Maximum Load Bearing Capacity Of 6000KG

* Expansion bolt x4
* Sliding gate motor x1
* Remote control x2
* Spring limit support x2
* Clutch wrench x1
* Backup fuse x1

Heavy Duty Industrial Gate Motor DC 36V With A Maximum Load Bearing Capacity Of 6000KG

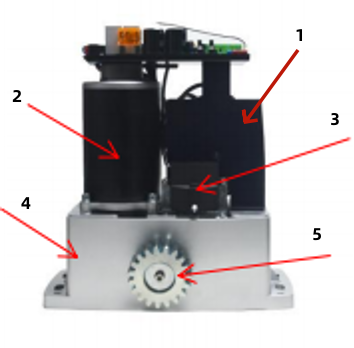

Structure of Motor

(1) Transformer support (2) Electric motor
(3) Limit sensor (4) Gear box bottom seat
(5) Output shaft gear

Heavy Duty Industrial Gate Motor DC 36V With A Maximum Load Bearing Capacity Of 6000KG

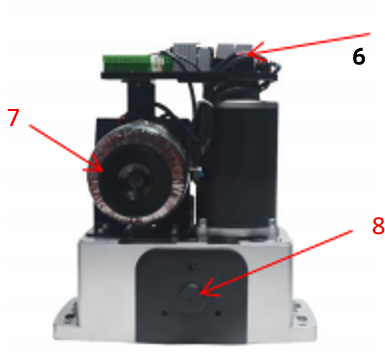

Structure of Motor

(6) Control main-board
(7) Transformer (8) Clutch brake (inside of housing)

Heavy Duty Industrial Gate Motor DC 36V With A Maximum Load Bearing Capacity Of 6000KG

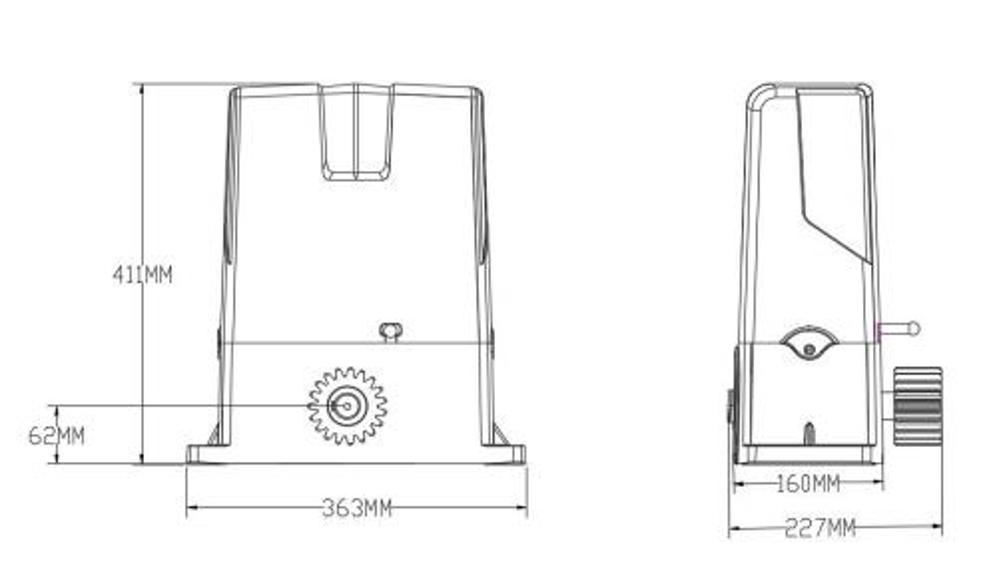

Size of Motor
Size of motor:length 363mm, width 160mm, height 411mm.

Heavy Duty Industrial Gate Motor DC 36V With A Maximum Load Bearing Capacity Of 6000KG

DC36V 4500KG sliding door opener
Industrial sliding door opener,
Connect the DC36V solar system,
Load capacity 4500KG (please contact separately for larger load capacity),
Pure copper coil,
Excluding built-in battery

Heavy Duty Industrial Gate Motor DC 36V With A Maximum Load Bearing Capacity Of 6000KG

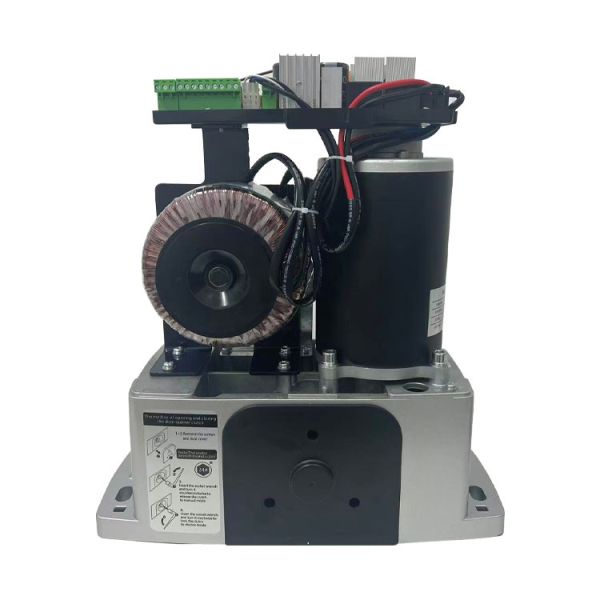

The method of opening and closingthe door opener clutch
1:Remove the screwsand dust cover .
Note:The socket wrench modelis 24#
2:Insert the socket wrenchand turn itcounterclockwise torelease the clutchto manual mode.
3:Insert the socket wrenchand turn it clockwise tolock the clutchto electric mode.
Product parameters
Model
BG3500
BG4500
BG6000
Capacity
3500kg
4500kg
6000KG
Torque
80N.m
107N.m
144N.m
Input Voltage
AC 220V/110V ± 10%
AC 220V/110V ± 10%
AC 220V/110V ± 10%
Output Voltage
DC 36V
DC 36V
DC 36V
Rated Power
450W
600W
800W
Motor Speed
1600rpm
1600rpm
1600rpm
Gate Speed
15m/min
15m/min
15m/min
Fuse
DC 40A
DC 40A
DC 40A
Remote Control Range
Open space 30~90 meters
Open space 30~90 meters
Open space 30~90 meters
Temperature
-30° C ~ +65° C
-30° C ~ +65° C
-30° C ~ +65° C
Relative Humidity
<60%
<60%
<60%
Limit Switch
Spring / Magnetic
Spring / Magnetic
Spring / Magnetic
Noise
≤60dB
≤60dB
≤60dB
Protection Class
IP 65
IP 65
IP 65
Module of Output Shaft Gear
Module 4/19-Tooth Gear
Module 4/19-Tooth Gear
Module 4/19-Tooth Gear
Output Shaft Gear Diameter
84mm
84mm
84mm

Our advantages

Customization capability:
1: Produce sample images within 1 hour;
2: Customized orders will be shipped within 3-7 days;
3: Bulk customization: 20-30 days for shipping, supporting factory inspection;
4: Support customization of functions;
Fast shipping capability:
1: 1-3 day fast shipping capability:
1) If payment is made between 8:00-12:00am China time, it will be shipped on the same day or the next day;
2) If payment is made between 13:00-24:00 China time, shipment will be made on the second or third day;
After sales guarantee
1: High standard service: Our company has always maintained a 5-star rating service;
2: The warranty period is 1 year, during which spare parts will be replaced free of charge;
3: A professional after-sales service team will immediately provide follow-up services after the transaction: ensuring timely updates of goods transportation information, professional technical guidance for on-site installation, and CEO online supervision of the after-sales team's service progress and standards.
