AC 110V 220V Sliding Door Opener With Remote Control For Courtyard Doors
AC 110V 220V Sliding Door Opener With Remote Control For Courtyard Doors
AC 110V 220V Sliding Door Opener With Remote Control For Courtyard Doors
AC 110V 220V Sliding Door Opener With Remote Control For Courtyard Doors
AC 110V 220V Sliding Door Opener With Remote Control For Courtyard Doors
AC 110V 220V Sliding Door Opener With Remote Control For Courtyard Doors
Specifications
Model Number :
MD1200w
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
100-130USD
Payment Terms :
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability :
unlimited
Delivery Time :
1-7Days
Packaging Details :
32*26*39cm
Description

Sliding Door Opener

Working principle and main structure and performance
This machine is consists of the motor, worm, gear, driven gear etc. The specific motordrives the worm, the worm transfers the motion to the worm gear and the drivengear(sprocket), and the driven gear drives the rack.The motor transfers its motion energy to the sprocket through the worm and gear, the driven gear. and the worm gear will both rotating when the clutch is engagedso the door will to be open or close under electric control. When in power failure, get theclutch disengaged through the disengage key (turn 90°clockwise), this machine will to beaffected manually to open or close the gate.
main technical parameters
Supply power: AC240v/50HZ
Starting current 3 A3.
running speed: 12m/min
Motor power:370W/550W/750W/1200W
Motor speed : 1400r/min
Suitable door weight :100-2000KG6.
Temperature :-25℃~+70℃;
Motor net weight :12.2kg/12.8kg/14.5kg /16.2kg
Reserved line installation :l square milimeter (or 1.5 square meter with two conductor)

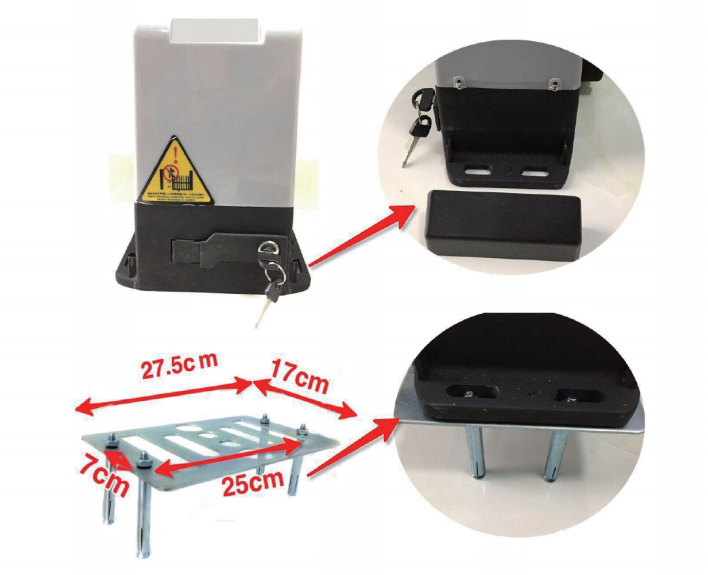

Open the door machine should be installed with a bolt on the metal base.
AC 110V 220V Sliding Door Opener With Remote Control For Courtyard Doors

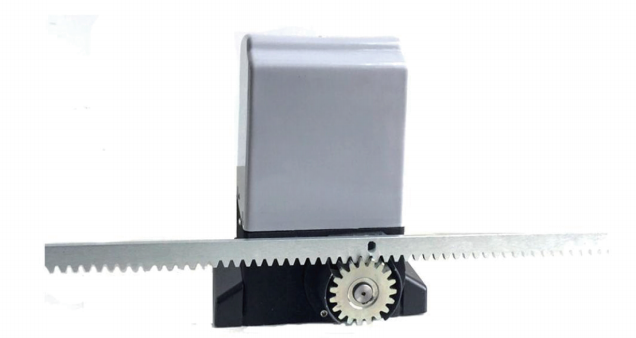

Install the steel rack
Installation steel rack and the simplest method is: first, put it above the door motor teethdeviate from the door machine, and then through the door steel rack and push forward, bitby bit fixed the steel rack in the right place. Through this method, you can make sure therack and pinion teeth bite together completely, in so doing, don't forget to mark eachinstallation points. (P2) Remember not to press the weight of all the door on gear.
AC 110V 220V Sliding Door Opener With Remote Control For Courtyard Doors

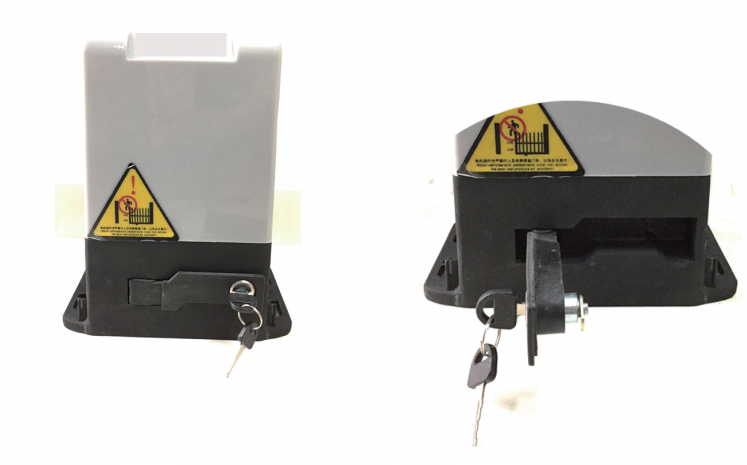

Door motor release clutch (manual open the door)
Door opener with the release of the lock device, to ensure that in the case of power faultcan be manually open the door, release and operation

AC 110V 220V Sliding Door Opener With Remote Control For Courtyard Doors

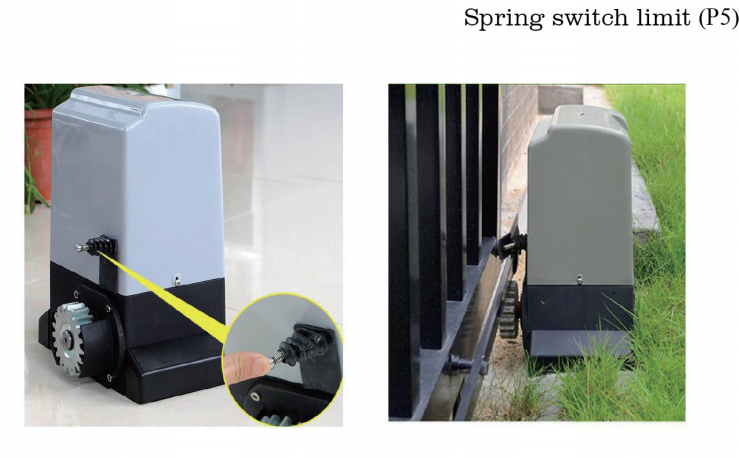

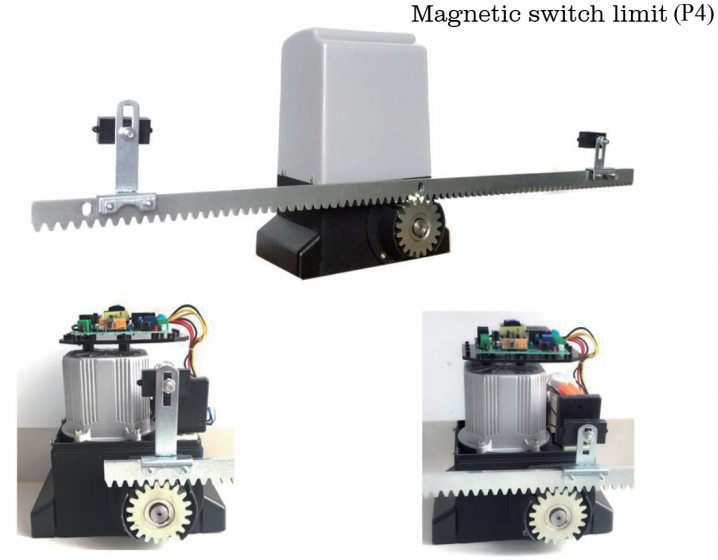

Install the limit switch
According to the final position of stroke, to switch the bracket is installed on the rack(P4-P5).Spring switch limit, spring touch switch iron block is ok . Magnetic switch limit.magnet should point to the motor, and according to the position of shield shell magneticlimit switches to locate.

AC 110V 220V Sliding Door Opener With Remote Control For Courtyard Doors

AC 110V 220V Sliding Door Opener With Remote Control For Courtyard Doors

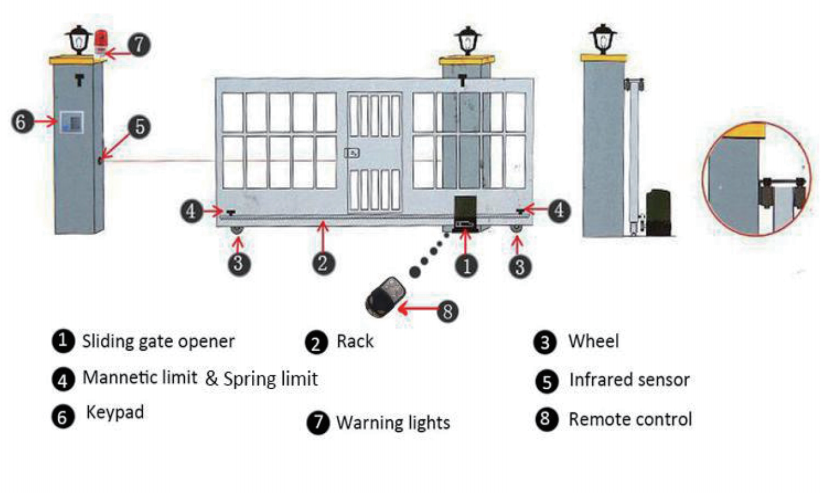

Sliding gate opener installation schematic diagram
