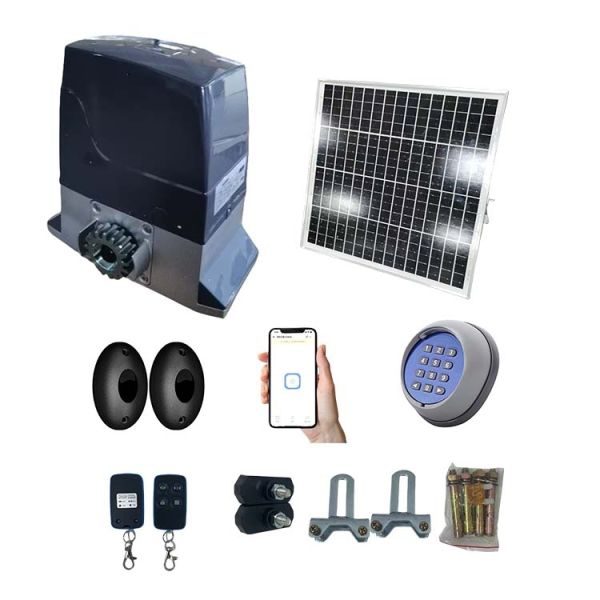

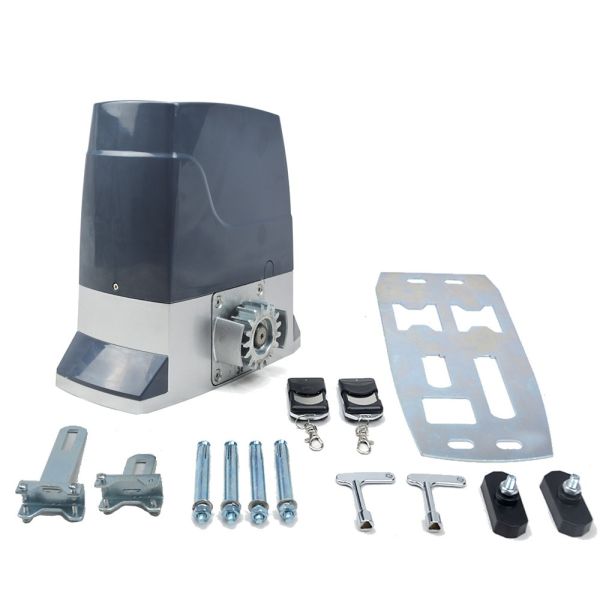

Sliding Automatic Gate Opener Motor DC Motor Hardware Electric Security System Kit
Sliding Automatic Gate Opener Motor DC Motor Hardware Electric Security System Kit
Sliding Automatic Gate Opener Motor DC Motor Hardware Electric Security System Kit
Sliding Automatic Gate Opener Motor DC Motor Hardware Electric Security System Kit
Sliding Automatic Gate Opener Motor DC Motor Hardware Electric Security System Kit
Sliding Automatic Gate Opener Motor DC Motor Hardware Electric Security System Kit
Sliding Automatic Gate Opener Motor DC Motor Hardware Electric Security System Kit
Sliding Automatic Gate Opener Motor DC Motor Hardware Electric Security System Kit
Sliding Automatic Gate Opener Motor DC Motor Hardware Electric Security System Kit
Sliding Automatic Gate Opener Motor DC Motor Hardware Electric Security System Kit
Specifications
Model Number :
sl
Certification :
CE
Place of Origin :
China
MOQ :
1
Price :
120-210 USD
Payment Terms :
L/C,D/A,T/T,MoneyGram,D/P,Western Union
Supply Ability :
unlimited
Delivery Time :
7 days
Packaging Details :
Carton Package
Key Word :
sliding gate motor
Maximun Pull :
2000KG
Protection Class :
IP44
Remote Control Distance :
30m
Working Temperature :
-25 to +55 Celsius degree
Power Supply :
AC 220V/110V DC24V
Environment Temperature :
-25°C ~ +55°C
Auto Closing :
yes
Description
DC 24v Sliding Gate Opener for Heavy duty
  1. Anti-rush design. At the first operation after each power on, the motorruns in slow motion to the end stop to avoid rushing out of the limit. When the door reaches the end stop, the motor can only be operated by pressing the button of the opposite direction to avoid breaking out of the limit.
  2. Co-op mode available. Two motors with the same type of control board on each can work synchronously. In this mode, infrared, ground sense, auto-close and other functions are synchronized.
  3. Motor runtime protection. To prevent the motor from running if travel distance fails, the control board automatically learns the motor running time, and 10s is added automatically as the time margin.
  4. Auto-close function. Countdown can be set from 1s to 2 5 0 s.
  5. Soft start & stop. High performance soft start and stop. The speed of the slow stop sector can be adjusted simply by rotating the MT knob.
  6. Resistance stop & rebound. Switchable resistance stop and resistance rebound for the closing travel. Resistance stop for the opening travel.
  7. Onboard socket for bluetooth module. A socket is integrated onboard for the standalone bluetooth module ( module not included by default).
  8. Easy connection for network control. Can be directly paired with WiFi controllers simply through pressing one button onboard, or use the WiFi controller to copy the remotes paird with the control board.

Dates:

Fuse 20A
Working Voltage 10A
Remote control distance Over 30 meters in open area
Relative humidity <60%, NO CONDENSATION
