Retail Stores Small Size Swing Turnstile With Anti Tailgating Function
Retail Stores Small Size Swing Turnstile With Anti Tailgating Function
Retail Stores Small Size Swing Turnstile With Anti Tailgating Function
Retail Stores Small Size Swing Turnstile With Anti Tailgating Function
Retail Stores Small Size Swing Turnstile With Anti Tailgating Function
Retail Stores Small Size Swing Turnstile With Anti Tailgating Function
Specifications
Place of Origin :
Shenzhen City, Guangdong Province, China
Humidity :
0% to 95% non-condensing
Brand Name :
Jieshida
Packaging Details :
Export-standard wooden box
Color :
Customization
Payment Terms :
T/T
Delivery Time :
5-8 working days
Supply Ability :
1,000 sets/month
Certification :
ISO9001
Cabinet Size :
1200 × 200 × 980mm
Model Number :
JSD-B12
MOQ :
1 SET
Product Name :
Swing Turnstile
Passage Width :
750mm
Price :
USD 200-800
Material :
304 Brushed Stainless Steel
Description

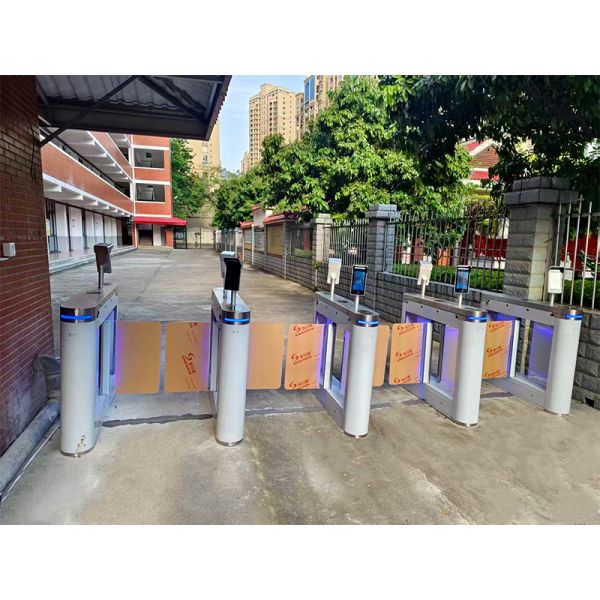

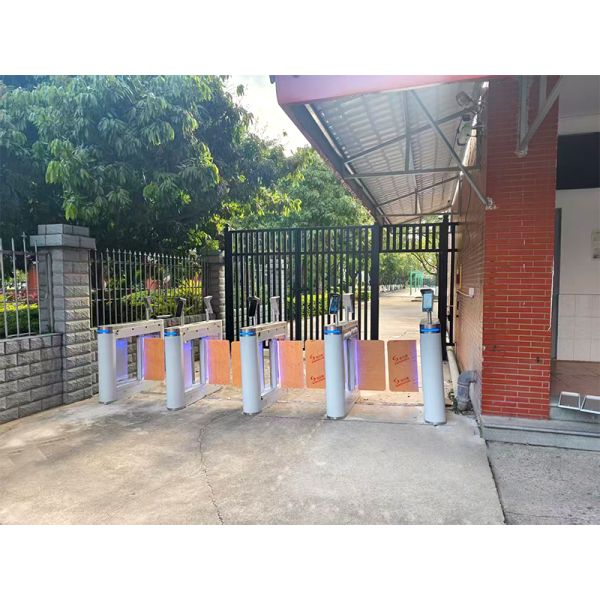

JSD-B12 Small Size Swing Turnstile with Anti-Tailgating Function for Retail Stores
Product Overview

The JSD-B12 Small Size Swing Turnstile is a compact and intelligent entrance control solution designed for retail stores, office buildings, supermarkets, and commercial facilities with limited installation space. Manufactured with durable 304 brushed stainless steel, the gate combines a modern appearance with reliable long-term performance. Powered by a DC brushless anti-collision motor, it delivers fast 0.5-second opening speed, smooth operation, and over 3 million working cycles. The system supports anti-tailgating detection, illegal intrusion alarms, automatic reset, and adjustable operating speeds for enhanced pedestrian security. Compatible with RFID cards, QR scanners, face recognition, and fingerprint systems, this compact swing turnstile provides efficient access management for both indoor and outdoor environments.

Product Features
  • Compact Space-Saving Design: The slim cabinet structure is ideal for retail stores, convenience stores, office entrances, and other locations with narrow installation areas.
  • Intelligent Anti-Tailgating Protection: Integrated infrared sensors detect unauthorized following and trigger instant alarm notifications to improve access security.
  • Automatic Reset Function: The swing arm automatically returns to the initial position after passage or cancels authorization if no pedestrian passes within the preset delay time.
  • High-Brightness LED Indicator: Clear LED traffic indicators provide visual guidance for smooth and efficient pedestrian flow management.
  • DC Brushless Anti-Collision Motor: Equipped with a high-performance DC brushless motor for low-noise operation, stable movement, and long service life.
  • Adjustable Opening & Closing Speed: Users can customize gate movement speed according to traffic flow and security requirements.
  • Intelligent Alarm & Self-Diagnosis: The system supports fault self-checking, illegal intrusion alarm, forced entry alarm, and operational status notifications for easier maintenance.
  • Fire Alarm Emergency Integration: Supports fire alarm signal connection, allowing the gate to remain open automatically during emergencies.
  • Unattended Operation Support: The swing arm automatically opens during power failure and restores blocking mode after power recovery.
Technical Details
Item Specification
Product Type Small Size Swing Turnstile
Drive Mode DC Brushless Motor
Passage Direction Single / Bi-directional
Opening Speed 0.5 Seconds
Input Voltage AC220V±10%, 50Hz
Working Voltage DC24V / DC12V
Communication Interface RS485 / Optional TCP/IP
Infrared Sensors 4 Pairs Standard
Barrier Material Acrylic or Stainless Steel
Working Temperature -10°C ~ 60°C
Installation Environment Indoor & Outdoor
Service Life Over 3 Million Cycles
Application Scenarios
Retail Stores
Core Problem Solved: Prevents unauthorized entry and tailgating while maintaining smooth customer traffic flow in limited spaces.
Supermarkets & Convenience Stores
Core Problem Solved: Improves entrance and exit management efficiency while reducing security risks and unauthorized access.
Office Buildings
Core Problem Solved: Provides controlled employee and visitor access through RFID cards or biometric verification systems.
Commercial Buildings
Core Problem Solved: Enhances pedestrian security management while supporting high-frequency daily access operations.
Residential Communities
Core Problem Solved: Restricts unauthorized visitors and improves resident access convenience and community safety.
Fitness Centers & Membership Clubs
Core Problem Solved: Supports member authentication and prevents unauthorized entry through integrated access control systems.
Frequently Asked Questions
Q1: What access control systems are compatible with this swing turnstile?
A: The gate supports RFID card readers, face recognition terminals, QR code scanners, fingerprint devices, and ID card readers.
Q2: Is the turnstile suitable for narrow entrances?
A: Yes. The compact cabinet size makes it ideal for retail stores and locations with limited installation space.
Q3: Does the system support anti-tailgating detection?
A: Yes. The infrared sensors detect unauthorized following and activate alarm notifications automatically.
Q4: Can the opening speed be adjusted?
A: Yes. Multiple speed levels are available to match different pedestrian traffic requirements.
Q5: What happens during a power outage?
A: The swing arm automatically opens during power failure for emergency evacuation and free passage.
Q6: Is the turnstile suitable for outdoor use?
A: Yes. The stainless steel structure supports both indoor and outdoor installation environments.
Q7: What communication interfaces are supported?
A: Standard RS485 communication is supported, with optional TCP/IP integration available.
Q8: How durable is the system?
A: The turnstile is designed for more than 3 million continuous opening and closing cycles for long-term operation.
