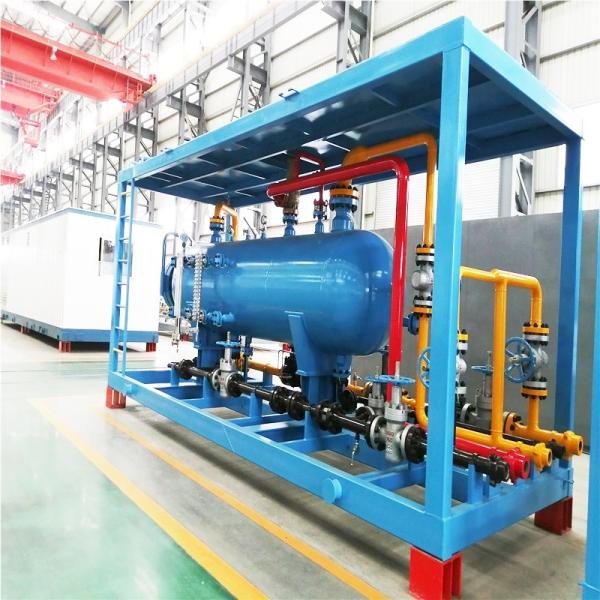

Test separator skid

Purpose: to separate and measure oil, gas and water in the produced liquid of oil and gas wells.

Main devices:

Test separator, regulating valve, various pressure, liquid level, temperature, measuring instrument, data acquisition and control system.

Characteristic:

1. Test separator skid, in addition to the high-efficiency separation function of oil, gas and water, is equipped with base type pneumatic pressure, liquid level controller and pneumatic membrane regulating valve to realize full-automatic control of test separator pressure, oil level and oil-water interface.

2. Adopt orifice metering device and three recorders to measure the flow of natural gas. The standard orifice plates with different apertures can be replaced under the condition of no production stop according to the actual flow on site, which has the function of adapting to the testing requirements of different oil and gas wells.

3. In order to solve the problem of uncertainty of crude oil production change during the test process, double circuit regulation and parallel metering are adopted in metering and control, namely, two pneumatic diaphragm regulating valves and two scraper or turbine flow meters are used for oil level control to achieve accurate control and metering.

4. The instrument air source for the pneumatic instrument is from the natural gas separated from the separator, which is dried and filtered for the use of the pneumatic instrument. At the same time, it is also equipped with external purified compressed air interface, which improves the field adaptability of the test separator.

5. The test separator is equipped with double safety valve and bursting disc system, which effectively ensures safe operation.
