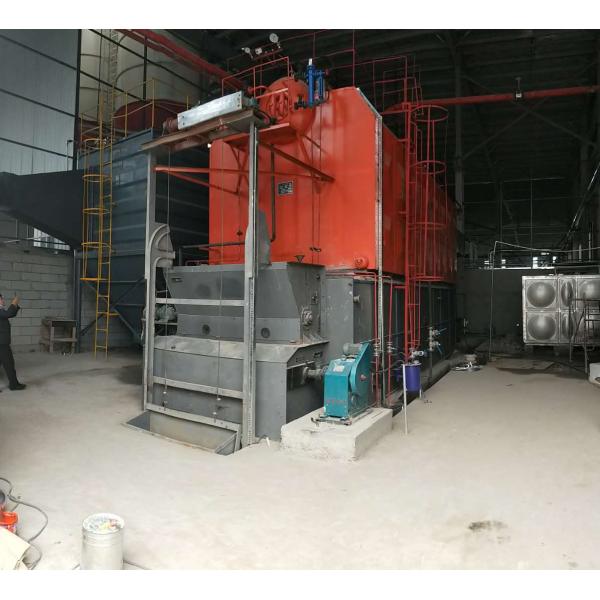

Double Cylinder Vertical Assembly Natural Circulation Water Chain Steam Boiler
Double Cylinder Vertical Assembly Natural Circulation Water Chain Steam Boiler
Double Cylinder Vertical Assembly Natural Circulation Water Chain Steam Boiler
Double Cylinder Vertical Assembly Natural Circulation Water Chain Steam Boiler
Double Cylinder Vertical Assembly Natural Circulation Water Chain Steam Boiler
Double Cylinder Vertical Assembly Natural Circulation Water Chain Steam Boiler
Double Cylinder Vertical Assembly Natural Circulation Water Chain Steam Boiler
Double Cylinder Vertical Assembly Natural Circulation Water Chain Steam Boiler
Specifications
Brand Name :
TAIGUO
Model Number :
SZL
Certification :
CE、EAC、SGS
Place of Origin :
Henan, China
MOQ :
1
Price :
US $5000.00-10000.00
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100set
Delivery Time :
20-30 working days
Packaging Details :
Bulk, packaged
Product name :
Biomass chain boiler
Structural form :
Vertical type
Mode of transport :
Sea and land transport
Fuel type :
Coal、 Biomass pellet、 jute、 Palm kernel shell
Description

Product introduction:

SZL type water tube boiler, the use of double cylinder vertical arrangement, combustion mode with chain grate. Boiler design fuel biomass forming fuel. Water wall structure on both sides of the furnace; After the furnace is an ember chamber, a convection tube bundle, and a economizer (or air preheater) at the tail. The flue gas enters the tail flue through the furnace, the burning chamber, the convection tube bundle, the economizer (or the air preheater), and is discharged into the atmosphere through the dust collector, the induced draft fan and the chimney. The boiler is divided into two parts factory, easy to install and move, after the assembly of the boiler factory to the site, only need to combine the two parts, build the upper and lower furnace wall, install the slag machine, fan and other auxiliary machinery system and smoke duct, connect the water and electricity can be run. The installation period is short, can meet the urgent needs of users, and has the characteristics of fast start and fire.

Product advantage:

1. The boiler has compact structure, small footprint and beautiful appearance, and the boiler only needs to be arranged in a single layer, so the civil engineering investment is less.
2. The grate is equipped with double-side air inlet, and the air baffle is installed in the air room, which can accurately adjust the air distribution of each stage of burning coal, so that the fire bed is evenly distributed to facilitate the combustion of fuel.
3. The boiler uses a long grate, because it is a layer fired boiler, the furnace storage heat, can ensure the stability of combustion, its load adjustment range is also relatively large.

Technical parameter:

Model

item

SZL6

SZL8

SZL10

SZL15

SZL20

SZL25

SZL30

SZL35
Rated evaporation capacity(t/h) 6 8 10 15 20 25 30 35
Rated pressure( Mpa) 1.25/1.6/2.5 1.25/1.6/2.5 1.25/1.6/2.5 1.25/1.6/2.5 1.25/1.6/2.5 1.25/1.6/2.5 1.25/1.6/2.5 1.25/1.6/2.5
Rated steam tmperature(℃) 194/204/226 194/204/226 194/204/226 194/204/226 194/204/226 194/204/226 194/204/226 194/204/226
Feed water temperature (℃) 20 20 20 20 20 20 20 20

Heating

Area(㎡)

 Body ~142 ~215 ~234 ~318.5 ~504 ~646 ~738 ~852.3
Economizer 130 130 174 348.8 377.6 500.6 551 685.8
Effective area of garte (㎡) 7.52 10.25 11.8 18 23.2 29.8 35 41.2
Fuel type Coal, Biomass pellet, jute, Palm kernel shell
Fuel Consumption(kg/h) ~880 ~1160 ~1450 ~2200 ~2900 ~3650 ~4350 ~5100

Exhaust flue gas

temperature(℃)

 ~165 ~165 ~165 ~165 ~165 ~165 ~165 ~165
Themal efficiency(%) ~80 ~80 ~80 ~80 ~80 ~80 ~80 ~80

Weight of biggest

part fotransportation (t)

22.5

25

28

30

35

40

45

50

Overlall dimension part for transportation

L*W*H(mm)

up:6150*2840*3540Down:7275*2852*2580

Up:6971*2933*3540

Down:8056*2945*2580

Up:7855*3240*3540

Down:9025*3200*2580

Up:10000*3240*3540

Down:12000*3200*3080

Up:11000*3240*3540

Down:14000*3200*3080

Up:12000*3240*3540

Down:16000*3200*3080

Up:13000*3240*3540

down:18000*3200*3080

Up:14000*3240*3540

Down:20000*3200*3080
