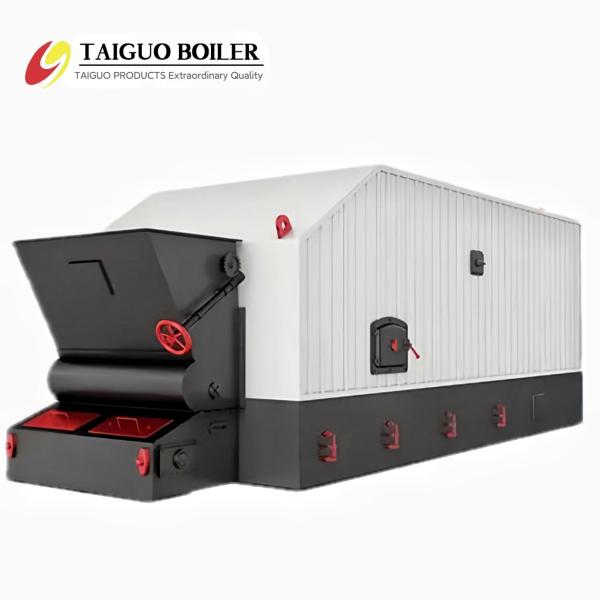

Horizontal Chain Grate Organic Heat Carrier Furnace Industrial Hot Oil Furnace
Horizontal Chain Grate Organic Heat Carrier Furnace Industrial Hot Oil Furnace
Horizontal Chain Grate Organic Heat Carrier Furnace Industrial Hot Oil Furnace
Horizontal Chain Grate Organic Heat Carrier Furnace Industrial Hot Oil Furnace
Horizontal Chain Grate Organic Heat Carrier Furnace Industrial Hot Oil Furnace
Horizontal Chain Grate Organic Heat Carrier Furnace Industrial Hot Oil Furnace
Horizontal Chain Grate Organic Heat Carrier Furnace Industrial Hot Oil Furnace
Horizontal Chain Grate Organic Heat Carrier Furnace Industrial Hot Oil Furnace
Specifications
Brand Name :
TAIGUO
Model Number :
YLW
Certification :
CE、EAC、SGS
Place of Origin :
Henan, China
MOQ :
1
Price :
US $5000.00-10000.00
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100set
Delivery Time :
15-30working days
Packaging Details :
Bulk, packaged
Product name :
Organic heat carrier furnace
Structural form :
horizontal
Mode of transport :
Sea and land transport
Customizable goods :
yes
Description

Product introduction:

Organic heat carrier furnace is a new type of special boiler, also known as heat conduction oil furnace, with low pressure, high temperature working characteristics, even under normal pressure, its heating temperature can reach 320℃ liquid phase or 400℃ vapor phase. Everything needs to be heated evenly and steadily. And do not allow direct flame heating process heating temperature between 150℃~380℃ in various production occasions can use organic heat carrier heating. It is based on coal, biomass, palm shell and other heat energy transmission to the thermal equipment, and then return to the heating furnace to reheat, not only has low pressure, high temperature, but also can high precision control of the working temperature, and no water treatment equipment, the system heat utilization rate is high, easy to operate and maintain, is a safe, efficient, energy-saving heating equipment.

Product advantage:

(1) Obtain low pressure and high temperature heat medium, easy adjustment, uniform heating, can meet the precise process temperature.
(2) liquid phase circulation heating, no condensing heat loss, heating system thermal efficiency is high.
(3) Water treatment equipment and systems can be simplified or omitted.
(4) The organic heat carrier furnace in the area requires a small protection distance and less explosion risk.
(5) Should consider the organic heat carrier heating and heat release and temperature rise and fall on the volume change, in the system should be compensated technical measures.
(6) Strictly control the content of air, water and other low volatiles in the organic heat carrier.

Technical parameter

Name

Model

YLW-

3000MA

YLW-

3500MA

YLW-

4200MA

YLW-

4700MA

YLW-

6000MA

YLW-

7000MA

YLW-

10000MA

YLW-

12000MA

Rated

power(kw)

3000

3500

4200

4700

6000

7000

10000

12000

Rated

Working

Pressure

(Mpa)


0.8

Highest Working Temperature (C)

<350

FuelCoal, Biomass pellet, jute, Palm kernel shell

Furnace oil

Volume(m3/h)

2.4

2.6

2.8

3.0

4.8

7

9.5

12.8

Circulation

oin volume

(m3/h)


160


200


250


250


350


460


540


600

Inlet and
Outlet pipe
Diameter(DN)

150

200

200

200

250

250

300

350

Overall Size ( mm )

6000*

2650*

3240

6400*

2770*

3470

6900*

2820*

3470

7680*

2985*

3715

7900*

3200*

3475

8400*

3300*

3475

9200*

3300*

3550

12600*

3820*

3630

Reference

Weihght (t)

30

35

40

44

48

50

70

142


Horizontal Chain Grate Organic Heat Carrier Furnace Industrial Hot Oil Furnace
