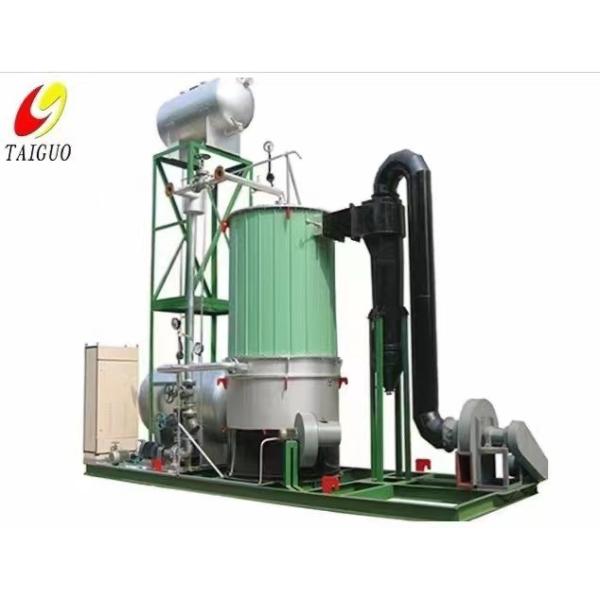

Vertical Biomass Heat Transfer Oil Furnace Flue Gas Three-way Heat Transfer Efficiency Is Good
Vertical Biomass Heat Transfer Oil Furnace Flue Gas Three-way Heat Transfer Efficiency Is Good
Vertical Biomass Heat Transfer Oil Furnace Flue Gas Three-way Heat Transfer Efficiency Is Good
Vertical Biomass Heat Transfer Oil Furnace Flue Gas Three-way Heat Transfer Efficiency Is Good
Vertical Biomass Heat Transfer Oil Furnace Flue Gas Three-way Heat Transfer Efficiency Is Good
Vertical Biomass Heat Transfer Oil Furnace Flue Gas Three-way Heat Transfer Efficiency Is Good
Vertical Biomass Heat Transfer Oil Furnace Flue Gas Three-way Heat Transfer Efficiency Is Good
Vertical Biomass Heat Transfer Oil Furnace Flue Gas Three-way Heat Transfer Efficiency Is Good
Specifications
Brand Name :
TAIGUO
Model Number :
YGL
Certification :
CE、EAC、SGS
Place of Origin :
Henan, China
MOQ :
1
Price :
US $5000.00-10000.00
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100set
Delivery Time :
20-30 working days
Packaging Details :
Bulk, packaged
Product name :
Vertical biomass heat conduction oil furnace
Structural form :
Vertical type
Rated thermal power :
120-1400KW
Customizable goods :
yes
Description

Product introduction:

Organic heat carrier furnace (referred to as heating furnace) is a new type of heating equipment, with coal, oil, gas as fuel and flue gas as heat source, with thermal oil (such as L-QB, L-QC, L-QD) as heat carrier through the circulation pump forced heat carrier liquid phase circulation, the heat transfer to the heating equipment, and then return to the heating furnace to reheat the high temperature, low pressure, energy-saving equipment. The heating temperature can be as high as 340 ° C, and the working pressure is generally below 1.0MPa, because the work is in the liquid phase state, safe and reliable.

Product advantage:

① High temperature and low pressure, can obtain a higher working temperature under a lower operating pressure. The pressure condition of the thermal equipment can be greatly reduced and the equipment cost can be reduced.
② Reasonable structure, advanced technology, small footprint, small size, beautiful appearance, simple management, high thermal efficiency, with significant energy saving effect and economic benefits, compared with similar foreign products, the structure has unique features. The furnace type is vertical and horizontal.
③ The heating surface layout is reasonable, and the thermal oil has a long service life.
(4) Accurate and reliable temperature regulation, complete operation control and safety monitoring device, high degree of automation, low labor intensity of workers.

Technical parameter:

Name

Model

 YGL- 120MA YGL-240MA YGL-350MA YGL-500MA YGL-700MA YGL- 1000MA YGL- 1200MA YGL- 1400MA

Rated

power(kw)

 120 240 350 500 700 1000 1200 1400

Thermal

Efficiency

(%)

75

Design

Pressure

(Mpa)

1.1

Rated

Working

Pressure

(Mpa)

0.8
Highest Working Temperature (C)

<350

Furnace oil

Volum(m3/h)

0.1

0.15

0.3

0.38

0.52

0.7

0.85

1.02

Circulation

oin volume

(m3/h)

10

20

30

40

60

80

100

100

Pipe

connection

diameter

(DN)

40

65

80

80

100

125

125

125
Overall Size ( mm )

1220*

1140*

2550

1705*

1510*

3095

1873*

1683*

3358

2076*

1900*

3660

2276*

2100*

3840

2900*

2500*

4785

2900*

2500*

5133

3000*

2900*

5430

Reference

Weihght (t)

2.2

2.7

3.4

3.9

4.8

7.4

8.0

10.2

Vertical Biomass Heat Transfer Oil Furnace Flue Gas Three-way Heat Transfer Efficiency Is Good
