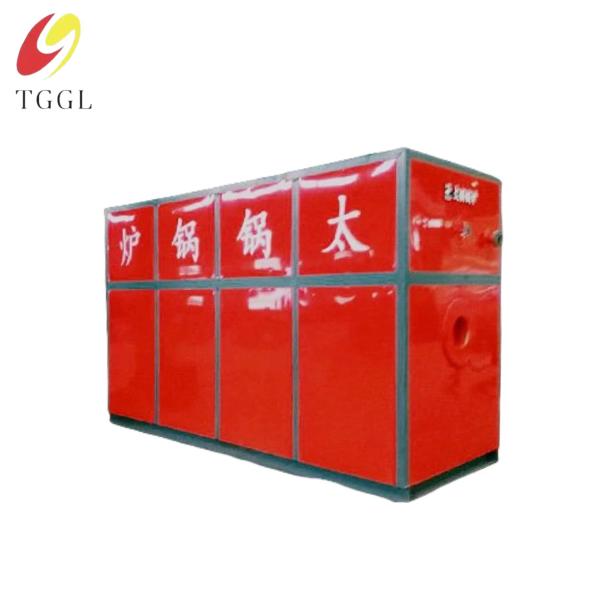

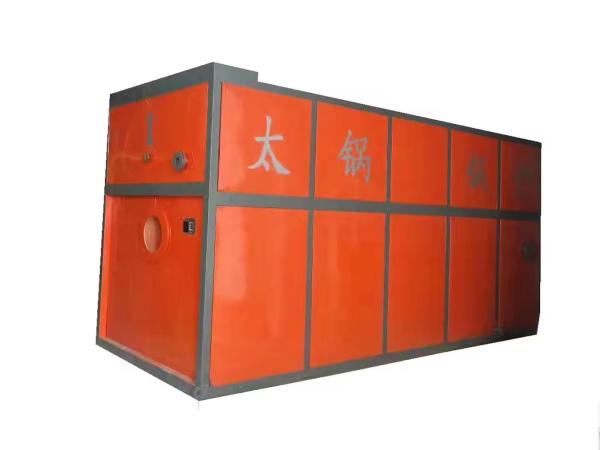

ZKS Series Horizontal Vacuum Hot Water Boiler High Efficiency And Stable Operation
ZKS Series Horizontal Vacuum Hot Water Boiler High Efficiency And Stable Operation
ZKS Series Horizontal Vacuum Hot Water Boiler High Efficiency And Stable Operation
ZKS Series Horizontal Vacuum Hot Water Boiler High Efficiency And Stable Operation
ZKS Series Horizontal Vacuum Hot Water Boiler High Efficiency And Stable Operation
ZKS Series Horizontal Vacuum Hot Water Boiler High Efficiency And Stable Operation
ZKS Series Horizontal Vacuum Hot Water Boiler High Efficiency And Stable Operation
ZKS Series Horizontal Vacuum Hot Water Boiler High Efficiency And Stable Operation
Specifications
Brand Name :
TAIGUO
Model Number :
ZKS
Certification :
CE、EAC、SGS
Place of Origin :
Henan, China
MOQ :
1
Price :
US $5000.00-10000.00
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
100set
Delivery Time :
15-30working days
Packaging Details :
Bulk, packaged
Product name :
Vacuum hot water boiler
use :
Heating, domestic hot water supply
Applicable industry :
Schools, hotels, hotels, shopping malls, etc
Structural form :
horizontal
Description

Product introduction:

ZKS series hot water boiler adopts the flue gas three-return method, and adopts the wet back vacuum hot water boiler, the boiler shell adopts the round furnace body and square gas chamber method, the flue gas pipe layout is reasonable, the combustion is full, the flue gas flow is smooth, the exhaust temperature is reduced, and the efficiency of the whole machine is improved. The high-temperature flue gas produced by combustion, after a total of three returns of one furnace return and two smoke pipe return, the temperature is greatly reduced, and the hot medium water surrounds the furnace and the periphery of the smoke pipe, and the heat transfer effect of the furnace and the smoke pipe is good.

Product advantage:

1. Save space.
Small appearance, small footprint, low investment costs;
2, easy to install.
There is no need to set up plate heat exchanger, positive displacement heat exchanger, primary water circulation pump, water treatment equipment and expansion water tank and other auxiliary equipment in the boiler room;
3, boiler ultra-low nitrogen emissions.
Using FGR gas recirculation technology, the flue gas is readded from the boiler outlet through an external pipe to the furnace, reducing Nox emissions to 30mg/Nm3.

Technical parameter:

Model
item

ZKS0.35ZKS0.5ZKS0.7ZKS1.05ZKS1.4ZKS1.75ZKS2.1ZKS2.8ZKS3.5ZKS4.2
-85/60-Q
Rated power(MW)0.350.50.71.051.41.752.12.83.54.2
Rated working pressure(Mpa)-0.02
Heat exchanger(Mpa)≤2.5
Rated outlet water temperature(℃)85
Rated return water temperature(℃)60
Thermal efficiency(%)≥98
Water capacity(L)1340200026003250395049205950743085209560
Water inlet and outlet(DN)506580100125150200
Pollution discharge(DN)4050

Fuel consumption

Light oil

(Kg/h)

32.443.264.797.1129.5162194.2259324389

Natural

(Nm³/h)

36.84973.5110.3147183.6220.6294.1368441.2

City gas

(Nm³/h)

83.4111.1166.7250333.3416.7500666.78331000

Outline dimension

Length

(mm)

3050330035504100420045004600510055006100

Width

(mm)

1400140015001600170018002000215024502400

Height

(mm)

1800180018502000210022002450265028202820
weight(kg)2400255033504600595067007900105001400015500


ZKS Series Horizontal Vacuum Hot Water Boiler High Efficiency And Stable Operation

FAQ:

Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
